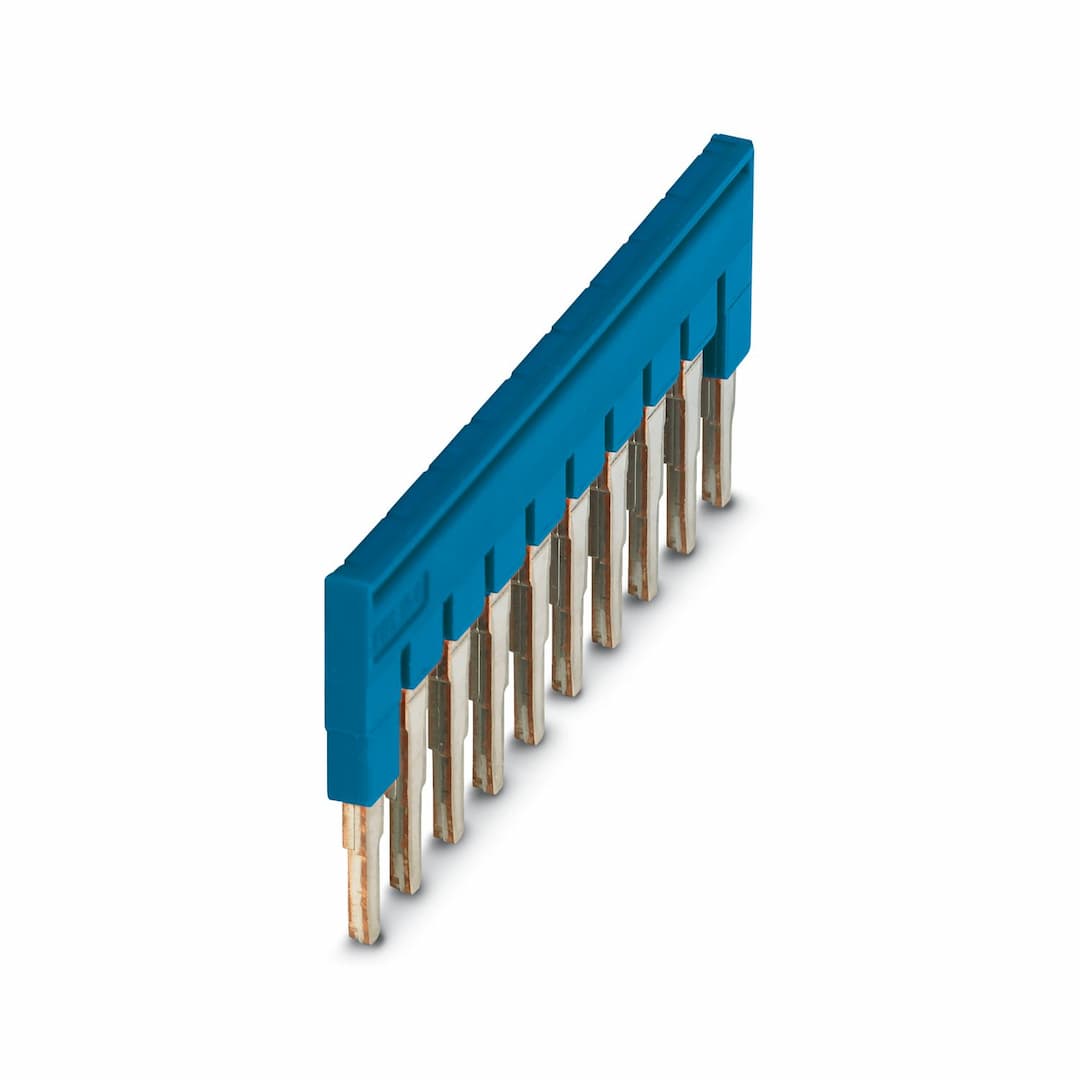

FBS 10-6 BU
Product ID:23454
Updated: 2026/7/26
Key Features
- 1Made from durable copper material for reliable performance.
- 2Plug-in mountable for quick and simple setup.
- 3Ensures safe and secure connections with insulated design.
- 4Connects up to 10 positions with 6.2 mm pitch.
- 5Compatible with UT4 terminals for seamless integration.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 10 |
| Pitch | 6.2 mm | Article revision | 05 |
| Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Width | 60.3 mm | Height | 23 mm |
| Depth | 23 mm | Pitch | 6.2 mm |
| Color | blue (RAL 5015) | Material | Copper |
| Flammability rating according to UL 94 | V0 | Insulating material | PA |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
