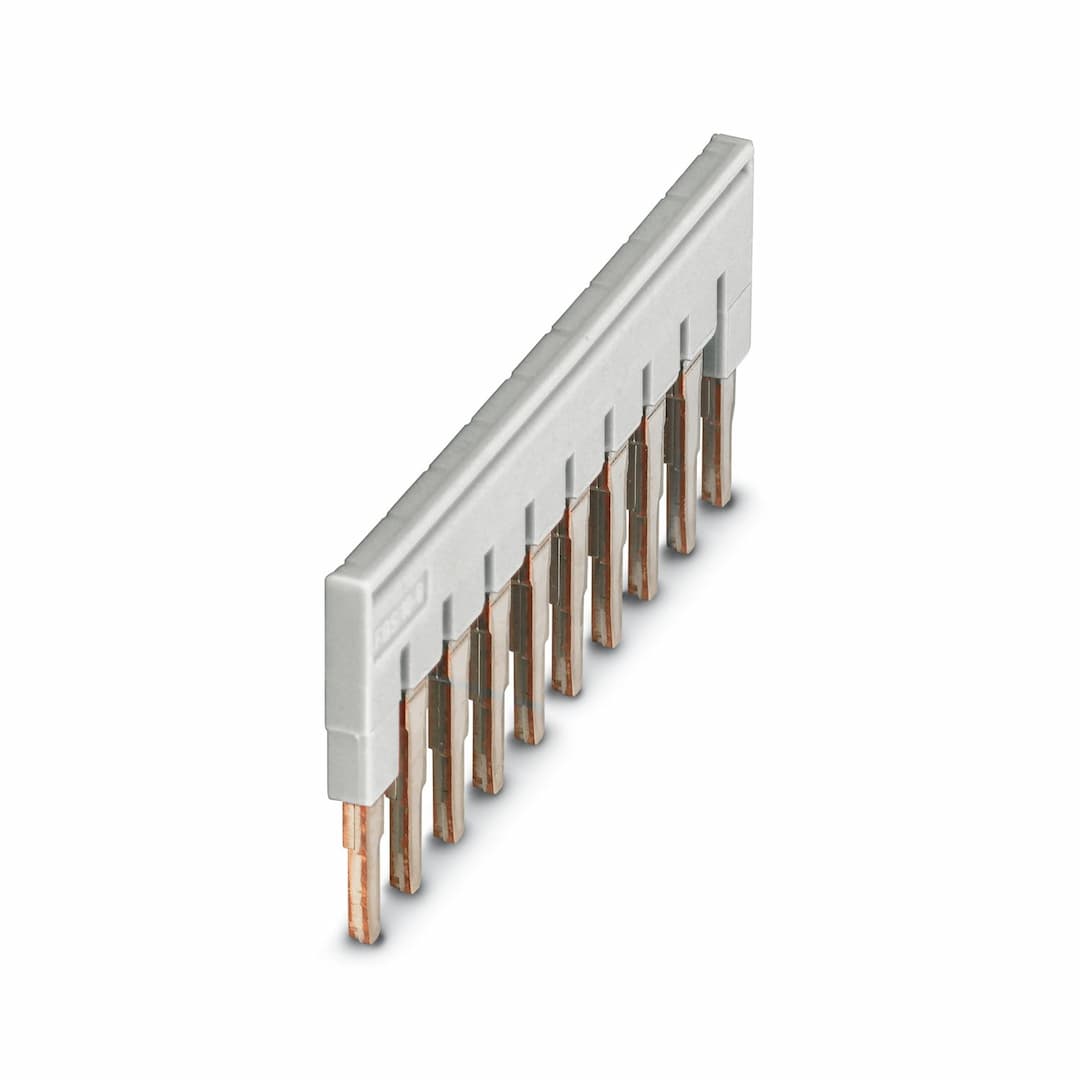

FBS 10-6 GY
Product ID:18612
Updated: 2026/8/2
Key Features
- 1High-Quality Electrical Connection Solution: The Phoenix Contact FBS 10-6 GY is a reliable plug-in bridge designed for industrial applications.
- 210 Positions with 6.2mm Pitch: Features 10 positions with a 6.2mm pitch, ensuring precise and secure connections.
- 332A Maximum Load Current: Supports up to 32A of maximum load current, making it suitable for demanding electrical connections.
- 4Made of Copper: Constructed from durable copper material, ensuring excellent conductivity and longevity.
- 5RoHS Compliant: Meets RoHS compliance standards, ensuring environmental safety and regulatory adherence.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 10 |
| Pitch | 6.2 mm | Article revision | 04 |
| Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Width | 60.3 mm | Height | 23 mm |
| Depth | 23 mm | Pitch | 6.2 mm |
| Color | gray (RAL 7042) | Material | Copper |
| Flammability rating according to UL 94 | V0 | Insulating material | PA |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
