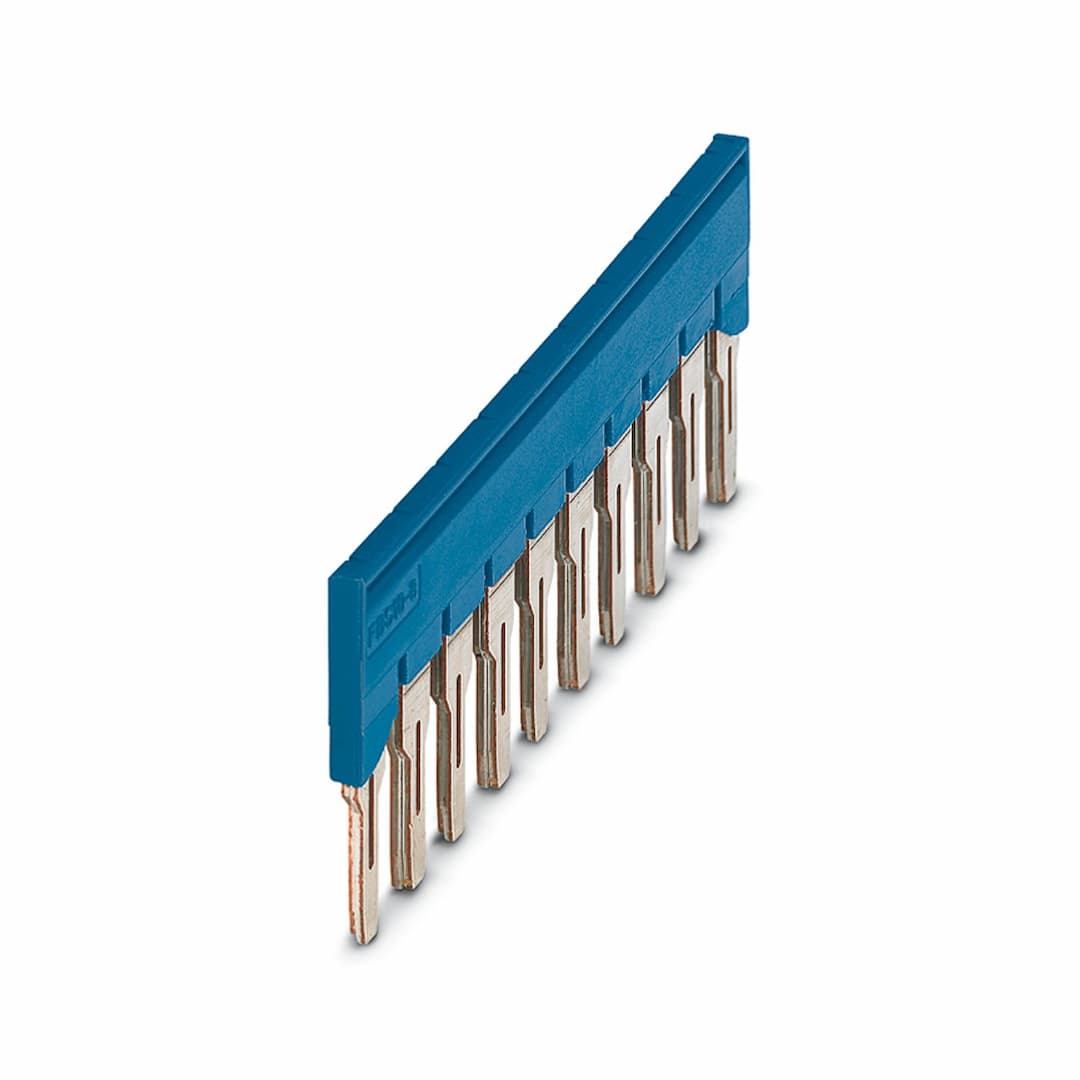

FBS 10-8 BU
Product ID:21496
Updated: 2026/7/29
Key Features
- 1Made from high-quality copper with a flammability rating of V0 according to UL 94.
- 2Plug-in mounting ensures quick and secure connection to terminal blocks.
- 3Suitable for various industrial applications, including automation and control systems.
- 4Supports up to 41 A of maximum load current, making it reliable for demanding tasks.
- 5Available in blue color for easy identification and organization in complex systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 10 |
| Pitch | 8.2 mm | Article revision | 03 |
| Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Width | 80.3 mm | Height | 29.6 mm |
| Depth | 29.6 mm | Pitch | 8.2 mm |
| Color | blue (RAL 5015) | Material | Copper |
| Flammability rating according to UL 94 | V0 | Insulating material | PA |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
