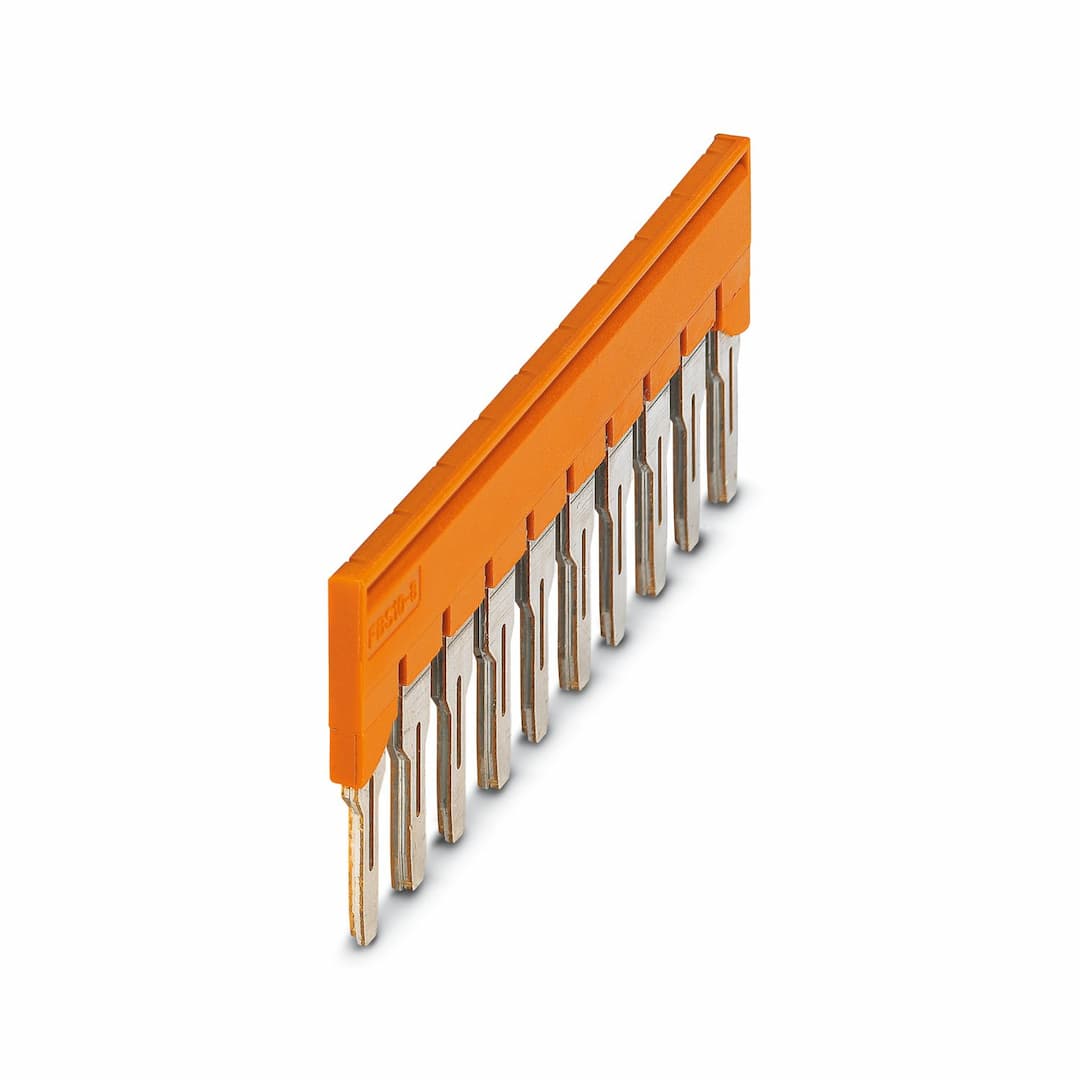

FBS 10-8 CT
Product ID:21427
Updated: 2026/7/29
Key Features
- 1Supports up to 41A current, suitable for demanding industrial applications.
- 2Plug-in design simplifies the process of bridging terminal blocks.
- 3Bridges up to 50 terminal blocks in the CLIPLINE complete system.
- 4Made with copper contacts and insulating material PA, ensuring reliability.
- 5Available in orange color for clear visibility in industrial settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 10 |
| Pitch | 8.2 mm | Article revision | 02 |
| Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Width | 80.3 mm | Height | 29.6 mm |
| Depth | 29.6 mm | Pitch | 8.2 mm |
| Color | orange (RAL 2003) | Material | Copper |
| Flammability rating according to UL 94 | V0 | Insulating material | PA |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
