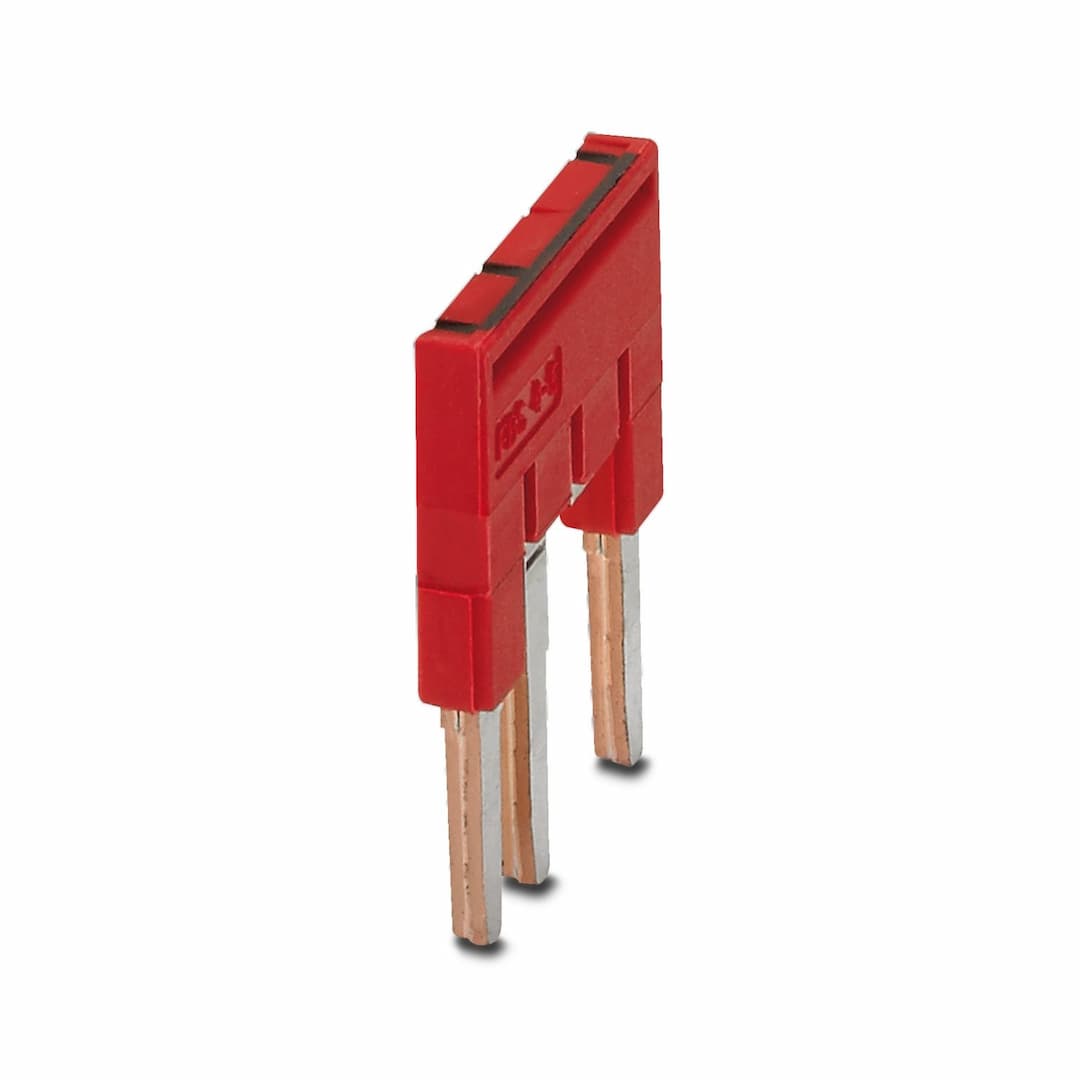

FBS 1/2/4-5
Product ID:17307
Updated: 2026/7/12
Key Features
- 1Built with high-quality copper for long-lasting performance.
- 2Designed for accurate and reliable connections in industrial settings.
- 3Suitable for a wide range of industrial applications, including automation and control systems.
- 4Plug-in design makes installation quick and straightforward.
- 5Meets or exceeds industry safety standards, ensuring reliable operation in harsh environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 4 |
| Pitch | 5.2 mm | Article revision | 02 |
| Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Pitch | 5.2 mm | Color | red (RAL 3001) |
| Material | Copper | Flammability rating according to UL 94 | V0 |
| Insulating material | PA | Pin assignment | 1, 2, 4 |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
