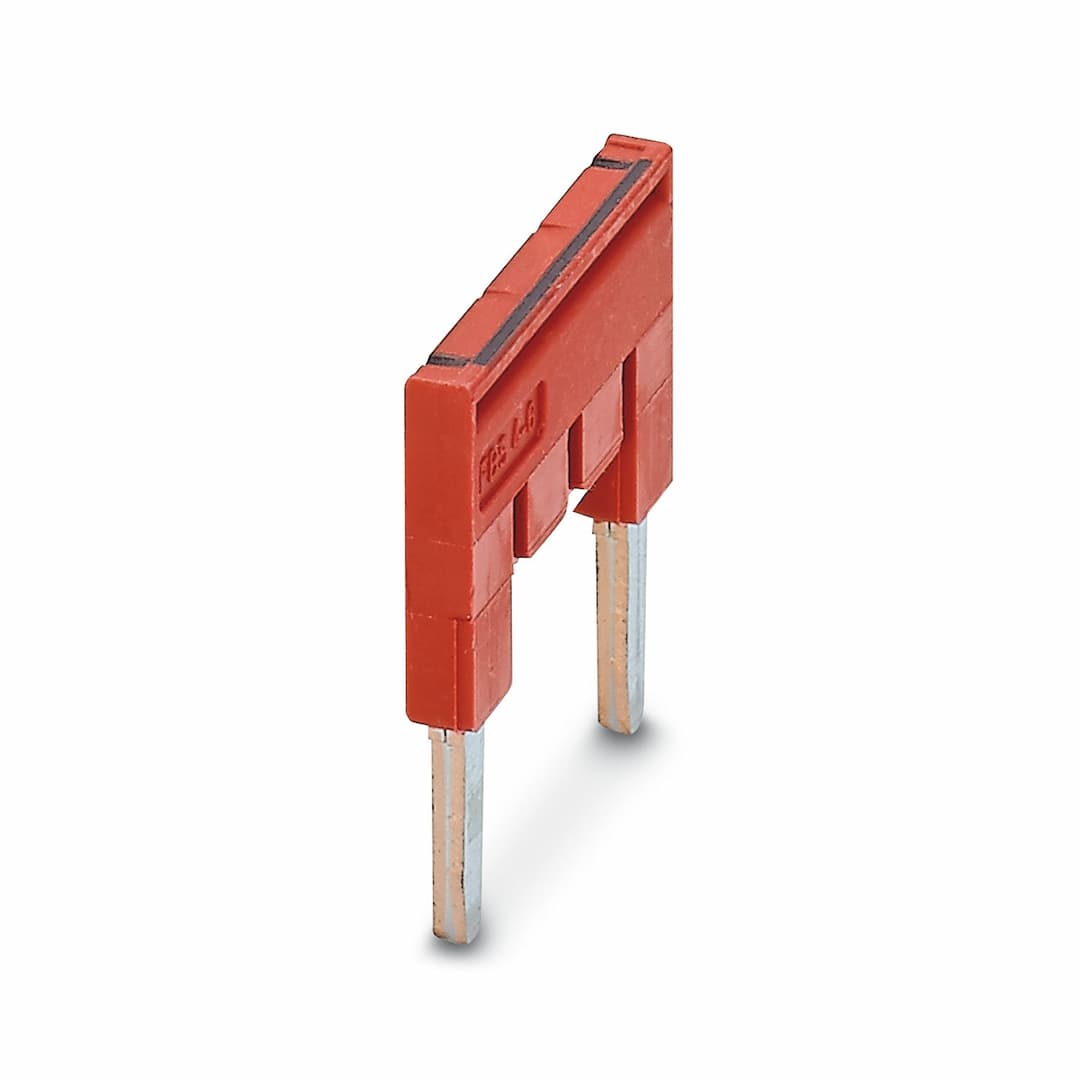

FBS 1/4-6
Product ID:17614
Updated: 2026/7/12
Key Features
- 1Efficient Terminal Block Connection: Connects up to 50 terminal blocks in one step.
- 2Durable Design: Made from copper with a flammability rating of UL 94 V0.
- 3High Load Current: Supports maximum load currents of 32 A.
- 4Environmentally Friendly: Compliant with China RoHS, ensuring unlimited environmentally friendly use.
- 5Easy Installation: Features plug-in mounting for quick and secure installation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 4 |
| Pitch | 6.2 mm | Article revision | 04 |
| Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Width | 23.1 mm | Height | 23 mm |
| Depth | 23 mm | Pitch | 6.2 mm |
| Color | red (RAL 3001) | Material | Copper |
| Flammability rating according to UL 94 | V0 | Insulating material | PA |
| Pin assignment | 1, 4 | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
