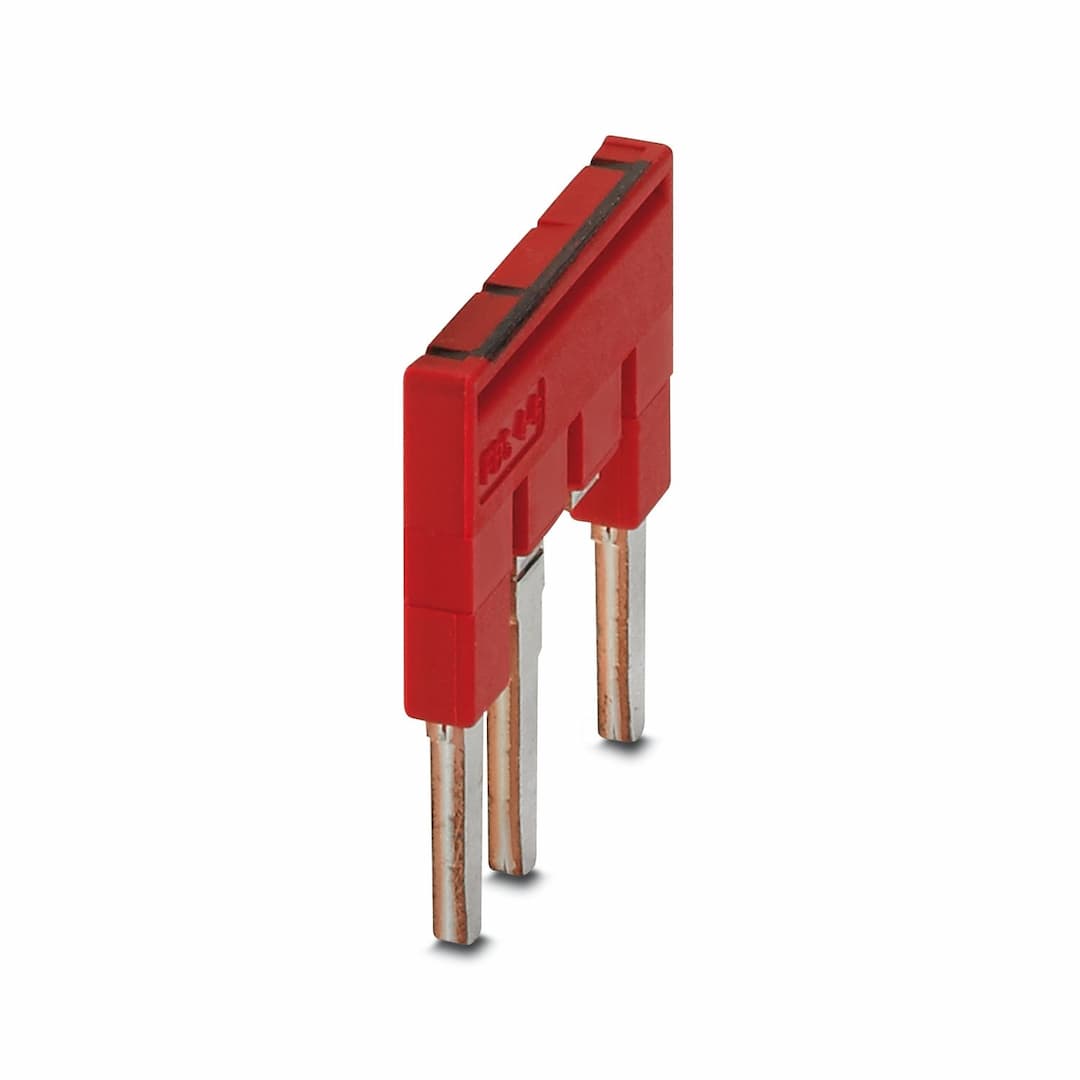

FBS 1/4/7/10/13-6
Product ID:19331
Updated: 2026/8/1
Key Features
- 1High Load Current: Supports up to 32 A of maximum load current, ensuring reliable connections in industrial applications.
- 2Durable Construction: Made from high-quality copper with a flammability rating of UL 94 V0 for long-lasting performance.
- 3Versatile Pitch: Available in various pitches (6.2 mm for FBS 10-6, 5.2 mm for FBS 5-5), accommodating different modular terminal blocks.
- 4Wide Operating Range: Operates in ambient temperatures from -60 °C to 110 °C, suitable for diverse industrial environments.
- 5Easy Installation: Plug-in design simplifies installation and reduces setup time, enhancing productivity in your projects.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Version with single- or double-sided cutting edge. Please keep in mind the possible impact on touch protection | Product type | Jumper |
| Number of positions | 13 | Pitch | 6.2 mm |
| Article revision | 00 | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Width | 79.5 mm |
| Height | 23 mm | Depth | 23 mm |
| Pitch | 6.2 mm | Color | red (RAL 3001) |
| Material | Copper | Flammability rating according to UL 94 | V0 |
| Insulating material | PA | Pin assignment | 1, 4, 7, 10, 13 |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
