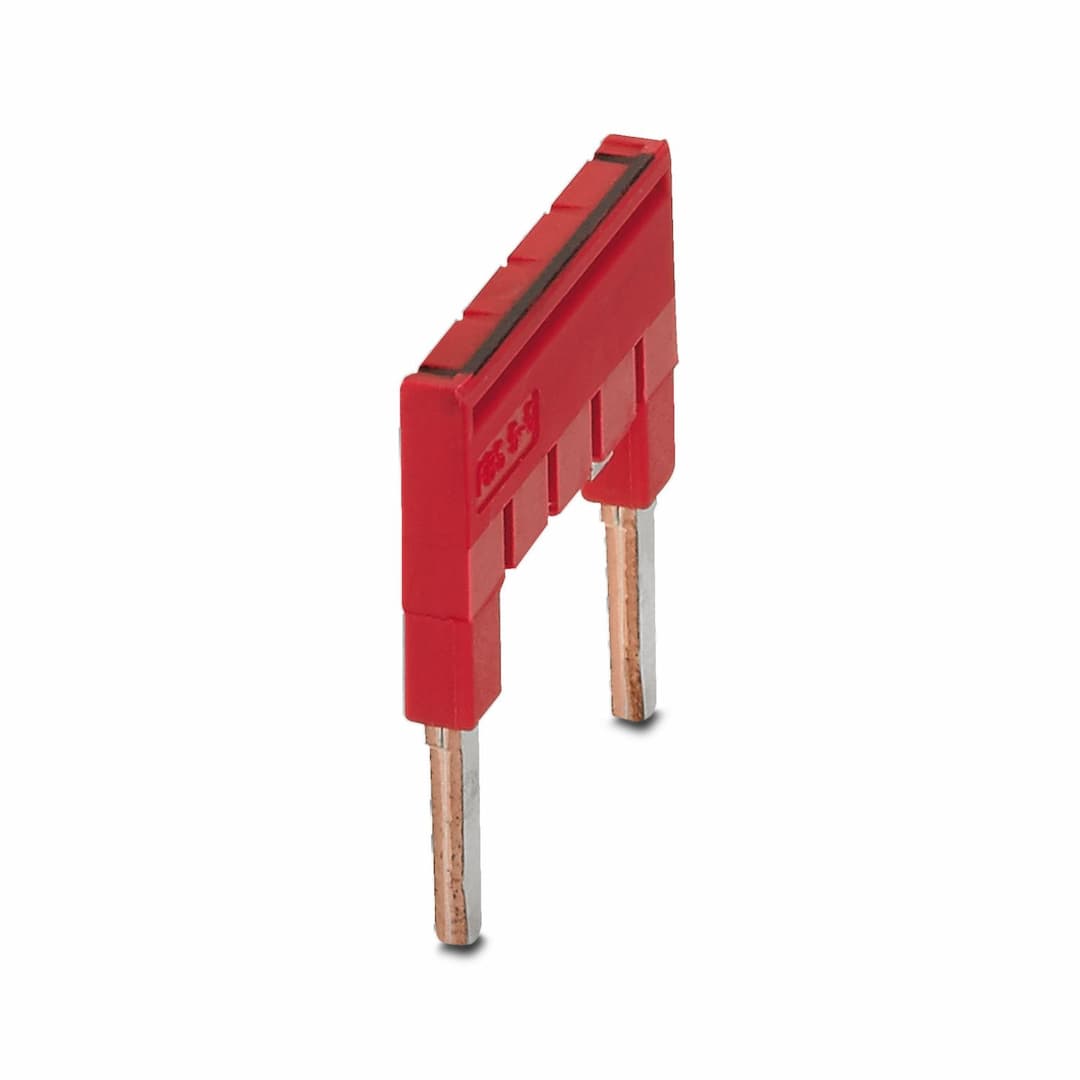

FBS 1/4/7/10-6
Product ID:21327
Updated: 2026/7/29
Key Features
- 1Industrial-grade reliability: Designed for industrial use with high-quality copper construction.
- 25-position connectivity: Suitable for connecting multiple connectors with ease.
- 3Compact design: Ideal for space-constrained applications due to its compact size.
- 4Easy plug-in installation: Simple and quick installation process with plug-in functionality.
- 5Versatile compatibility: Compatible with various Phoenix Contact connectors and modular terminal blocks.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 10 |
| Pitch | 6.2 mm | Article revision | 00 |
| Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Width | 60.3 mm | Height | 23 mm |
| Depth | 23 mm | Pitch | 6.2 mm |
| Color | red (RAL 3001) | Material | Copper |
| Flammability rating according to UL 94 | V0 | Insulating material | PA |
| Pin assignment | 1, 4, 7, 10 | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
