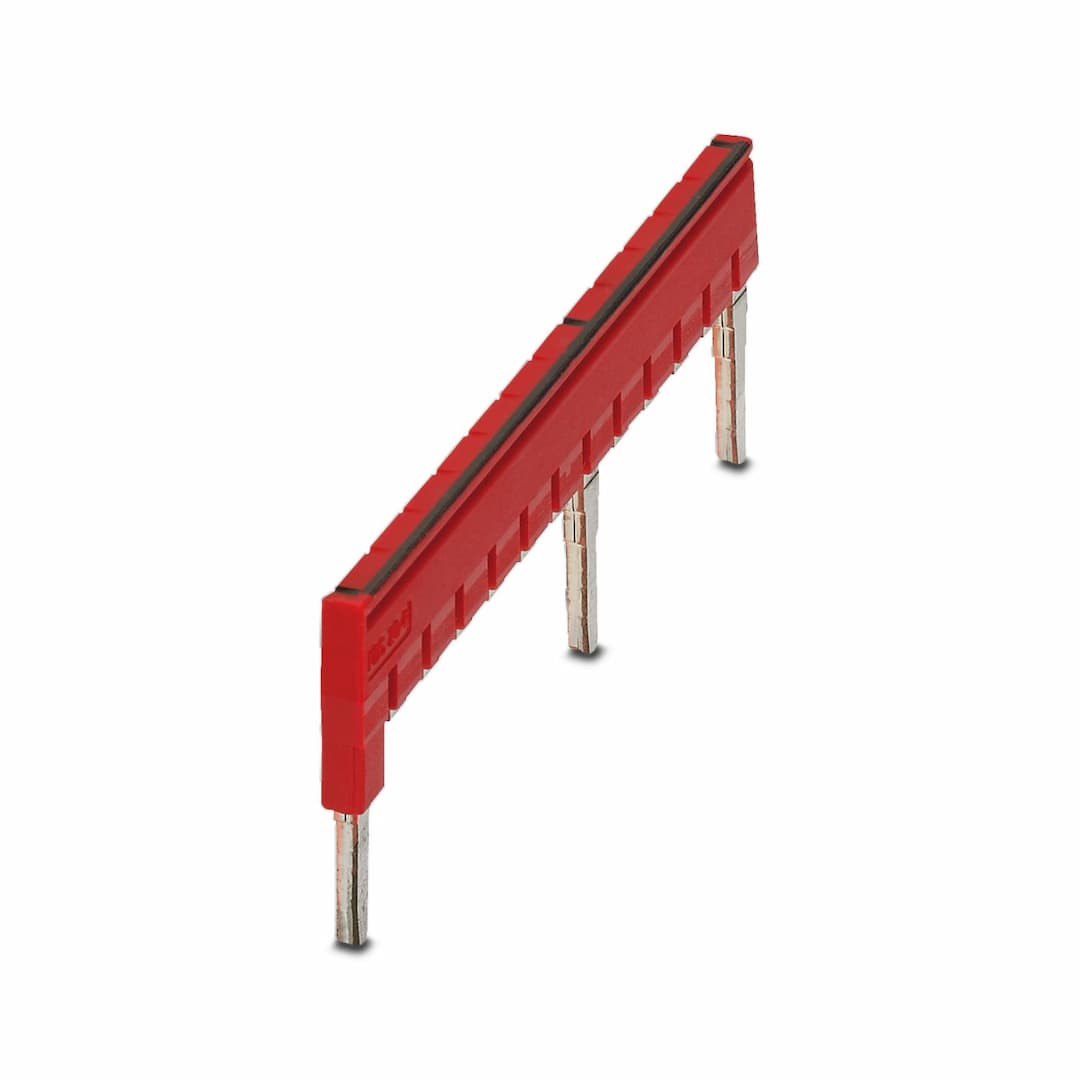

FBS 1/8/13-6
Product ID:21163
Updated: 2026/7/29
Key Features
- 1Supports up to 32 A, ideal for demanding electrical applications.
- 2Ensures reliability and longevity in harsh environments.
- 3Features plug-in mounting for quick and straightforward setup.
- 4Bridges up to 50 terminal blocks in the CLIPLINE system, simplifying wiring efforts.
- 5Meets stringent flammability standards for safe operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Version with single- or double-sided cutting edge. Please keep in mind the possible impact on touch protection | Product type | Jumper |
| Number of positions | 13 | Pitch | 6.2 mm |
| Article revision | 03 | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Width | 79.5 mm |
| Height | 23 mm | Depth | 23 mm |
| Pitch | 6.2 mm | Color | red (RAL 3001) |
| Material | Copper | Flammability rating according to UL 94 | V0 |
| Insulating material | PA | Pin assignment | 1, 8, 13 |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
