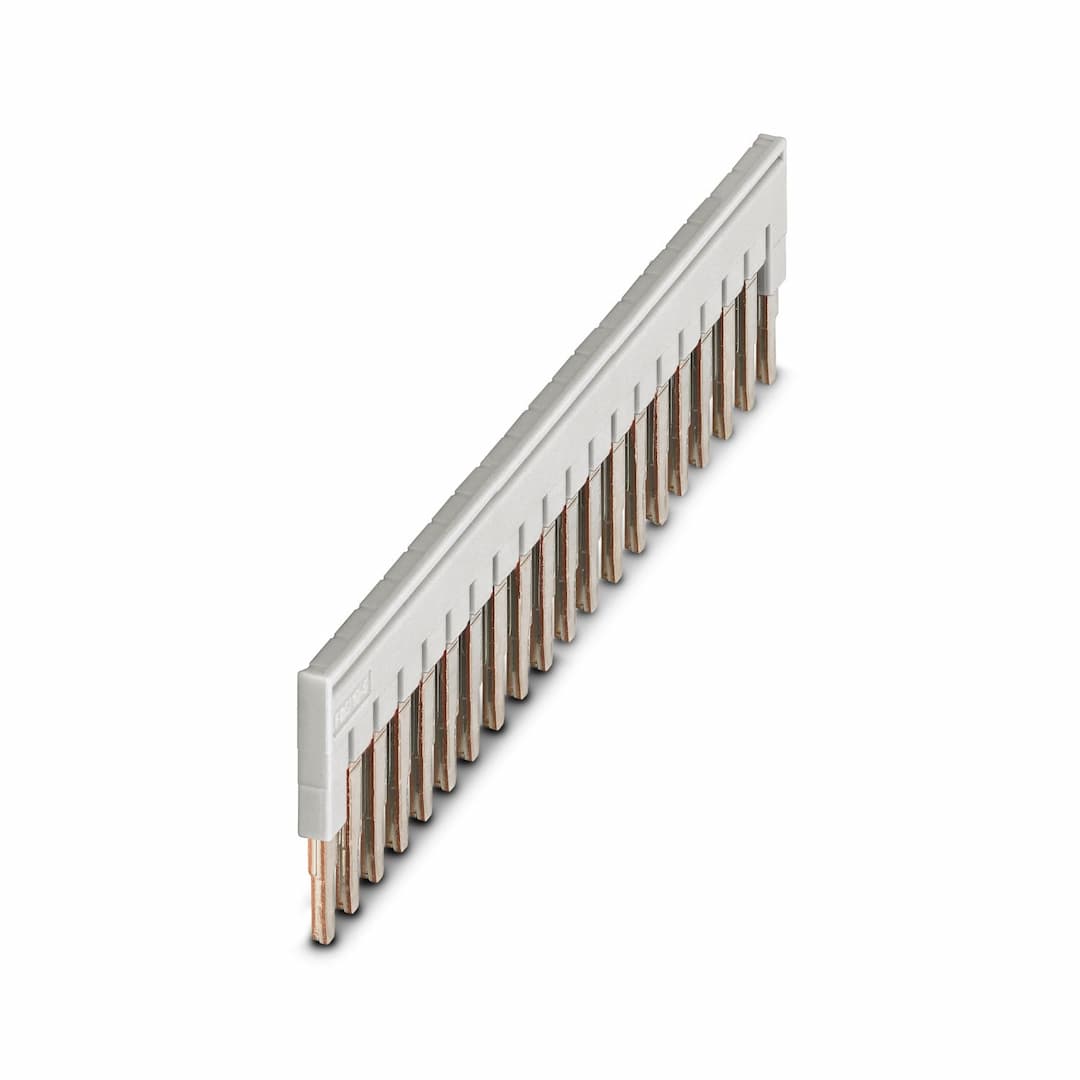

FBS 20-4 GY
Product ID:18627
Updated: 2026/8/3
Key Features
- 1Efficient Signal Distribution: Bridge up to 50 terminal blocks in one step with the FBS 20-4 GY.
- 2High Reliability: Designed with copper material and a flammability rating of UL 94 V0 for safe operation.
- 3Modular Design: Compatible with the CLIPLINE complete system, offering flexible jumpering options.
- 4Easy Installation: No need for screwing; simply plug in for quick and easy setup.
- 5Compliance and Safety: Meets environmental product compliance standards and is free from hazardous substances above threshold values.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 20 |
| Pitch | 4.2 mm | Article revision | 03 |
| Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Pitch | 4.2 mm | Color | gray (RAL 7042) |
| Material | Copper | Flammability rating according to UL 94 | V0 |
| Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
