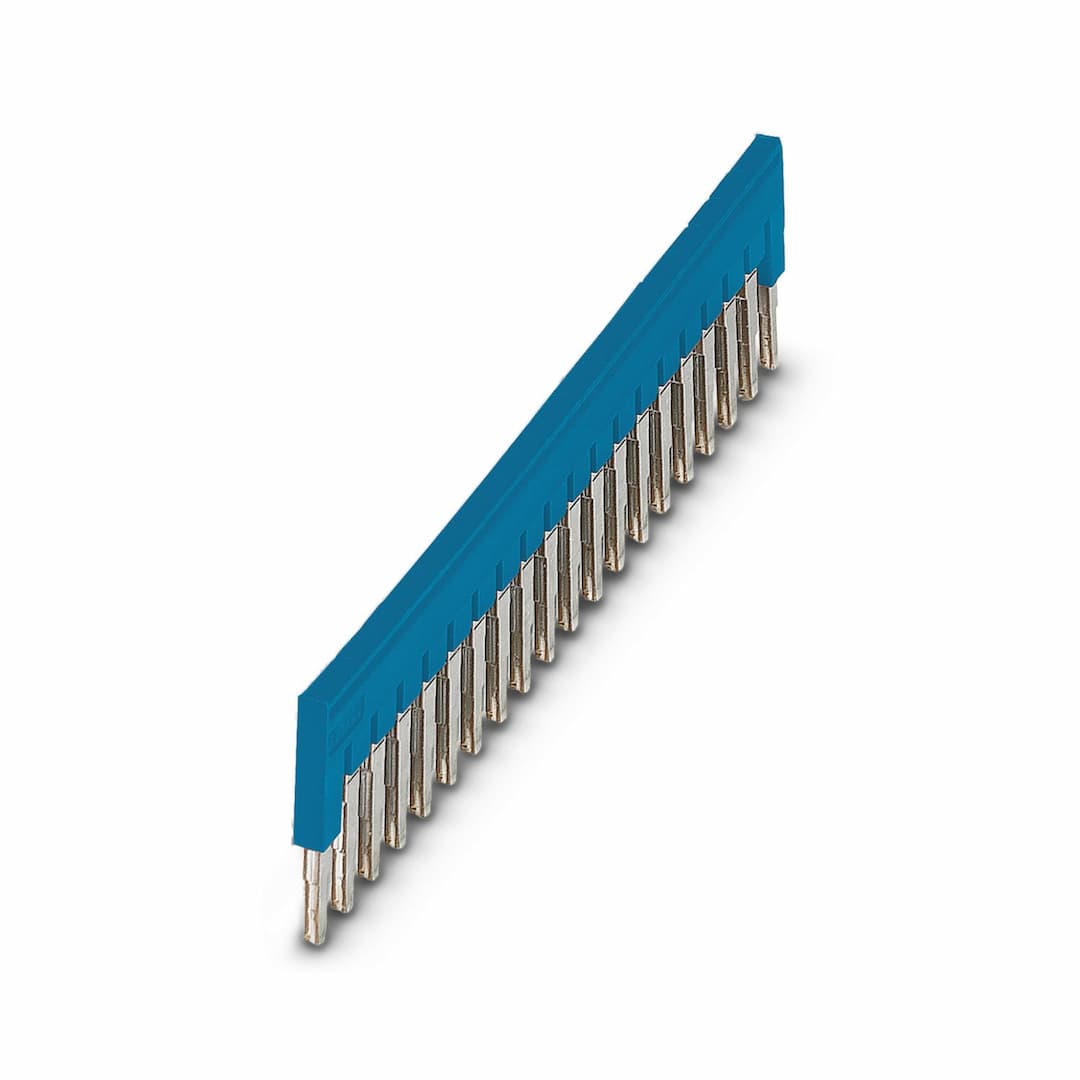

FBS 20-6 BU
Product ID:17031
Updated: 2026/7/12
Key Features
- 1Designed for plug-in bridge scenarios, connecting up to 50 terminal blocks.
- 2Maximum load current of 41 A, ensuring reliable performance.
- 3Effortless to use, simply push into your terminal block.
- 4Saves time by eliminating the need for individual wire connections.
- 5Compliant with RoHS regulations, ensuring environmental safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 20 |
| Pitch | 6.2 mm | Article revision | 04 |
| Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Width | 122.3 mm | Height | 23 mm |
| Depth | 23 mm | Pitch | 6.2 mm |
| Color | blue (RAL 5015) | Material | Copper |
| Flammability rating according to UL 94 | V0 | Insulating material | PA |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
