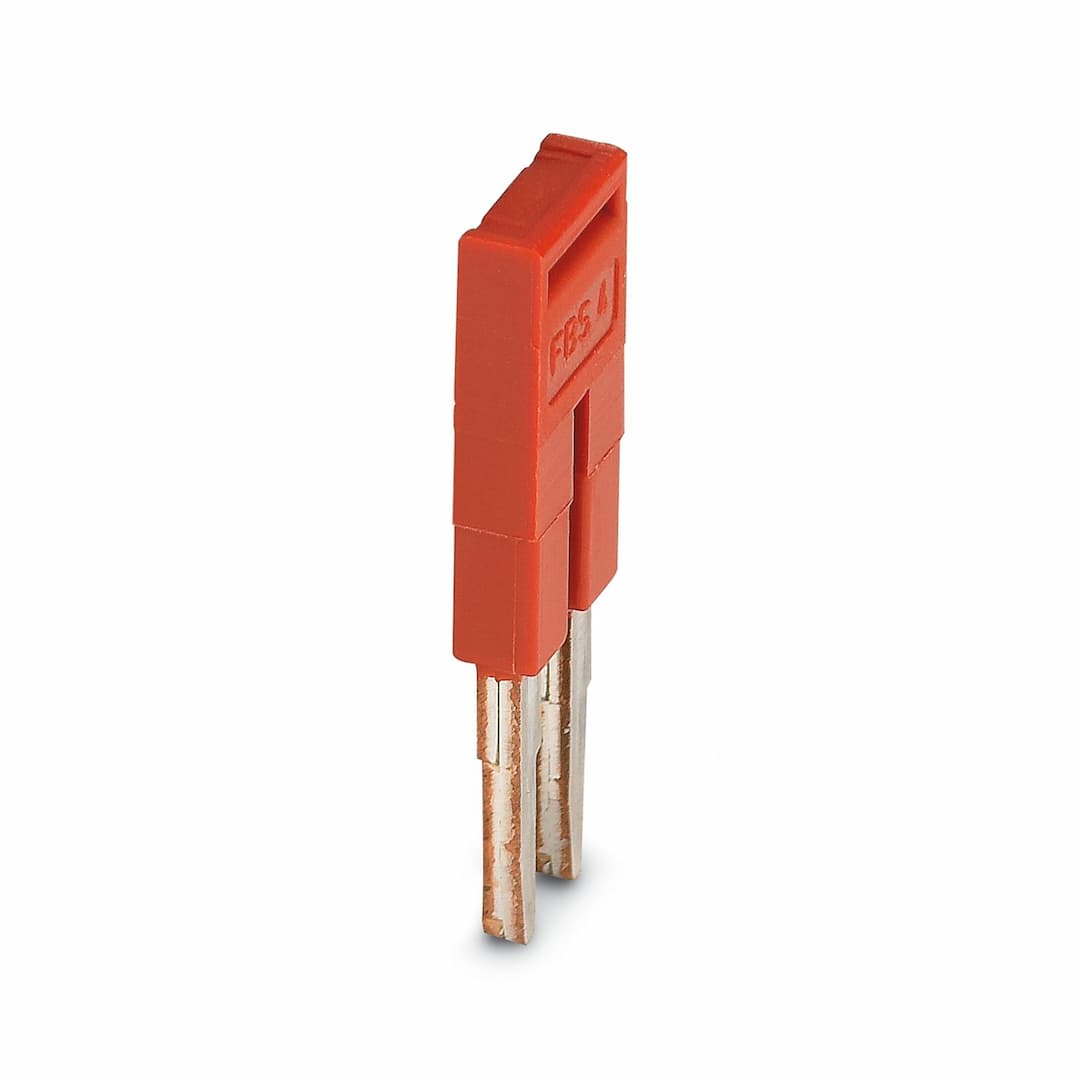

FBS 2-4
Product ID:17767
Updated: 2026/7/12
Key Features
- 1The FBS 2-4 provides consistent and reliable connections for your automation systems.
- 2Constructed with high-quality materials, ensuring long-lasting performance in demanding environments.
- 3Plug-in design makes installation quick and straightforward, minimizing downtime.
- 4Suitable for bridging up to 2 terminal blocks with a pitch of 4.2 mm, ideal for various automation applications.
- 5Visual confirmation of proper connection with the red color indicator, enhancing safety and efficiency.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 2 |
| Pitch | 4.2 mm | Article revision | 06 |
| Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Pitch | 4.2 mm | Color | red (RAL 3001) |
| Material | Copper | Flammability rating according to UL 94 | V0 |
| Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
