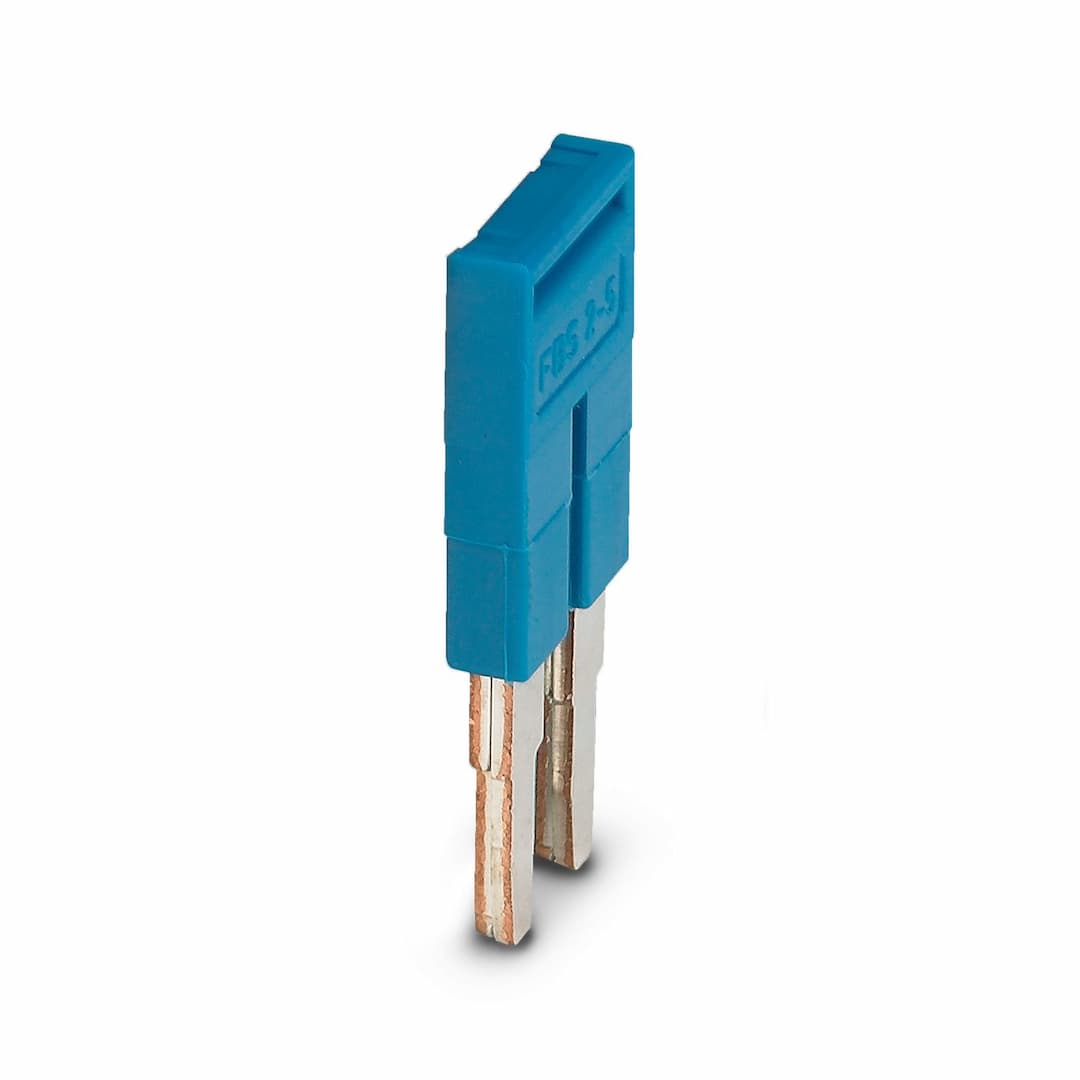

FBS 2-5 BU
Product ID:20287
Updated: 2026/7/12
Key Features
- 1The FBS 2-5 BU features a compact plug-in bridge design with a pitch of 5.2 mm, ideal for tight spaces.
- 2Supports up to 24 A of maximum load current, making it suitable for demanding industrial applications.
- 3Can bridge up to 50 terminal blocks in one step, enhancing connectivity efficiency.
- 4Made from high-quality copper material with a flammability rating of V0, ensuring reliability and safety.
- 5Features plug-in mounting for easy integration into various terminal block systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 2 |
| Pitch | 5.2 mm | Article revision | 06 |
| Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Pitch | 5.2 mm | Color | blue (RAL 5015) |
| Material | Copper | Flammability rating according to UL 94 | V0 |
| Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
