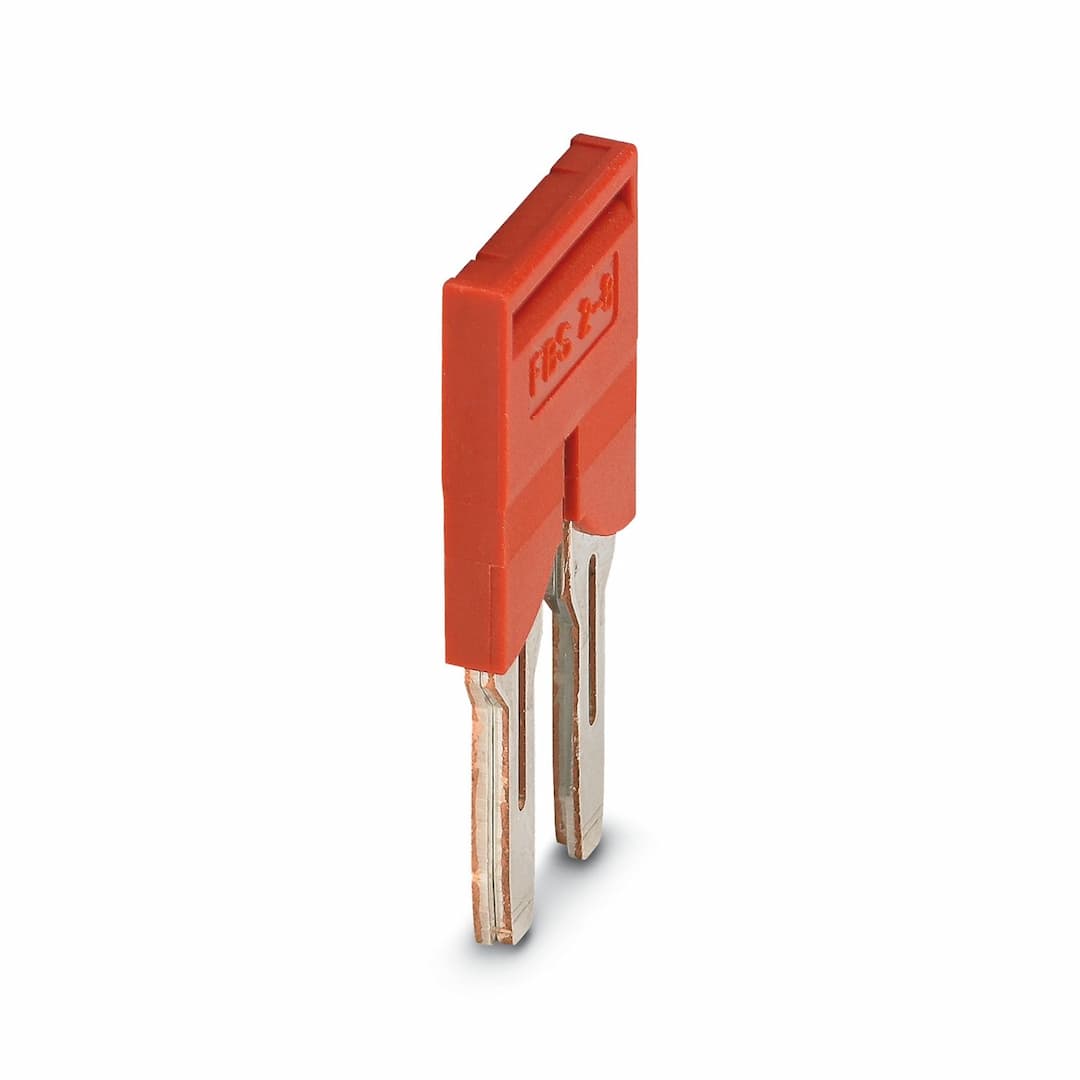

FBS 2-8
Product ID:17151
Updated: 2026/7/12
Key Features
- 1Connects up to 50 terminal blocks in one step with its 2-position design.
- 2Handles maximum load currents of 41 A, suitable for demanding applications.
- 3Operates from -60 °C to 105 °C, ensuring reliability in diverse environments.
- 4Made from copper with a flammability rating of V0 and insulating material PA for added safety.
- 5Features plug-in mounting for quick and secure installation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 2 |
| Pitch | 8.2 mm | Article revision | 12 |
| Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Width | 14.7 mm | Height | 29.6 mm |
| Depth | 29.6 mm | Pitch | 8.2 mm |
| Color | red (RAL 3001) | Material | Copper |
| Flammability rating according to UL 94 | V0 | Insulating material | PA |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
