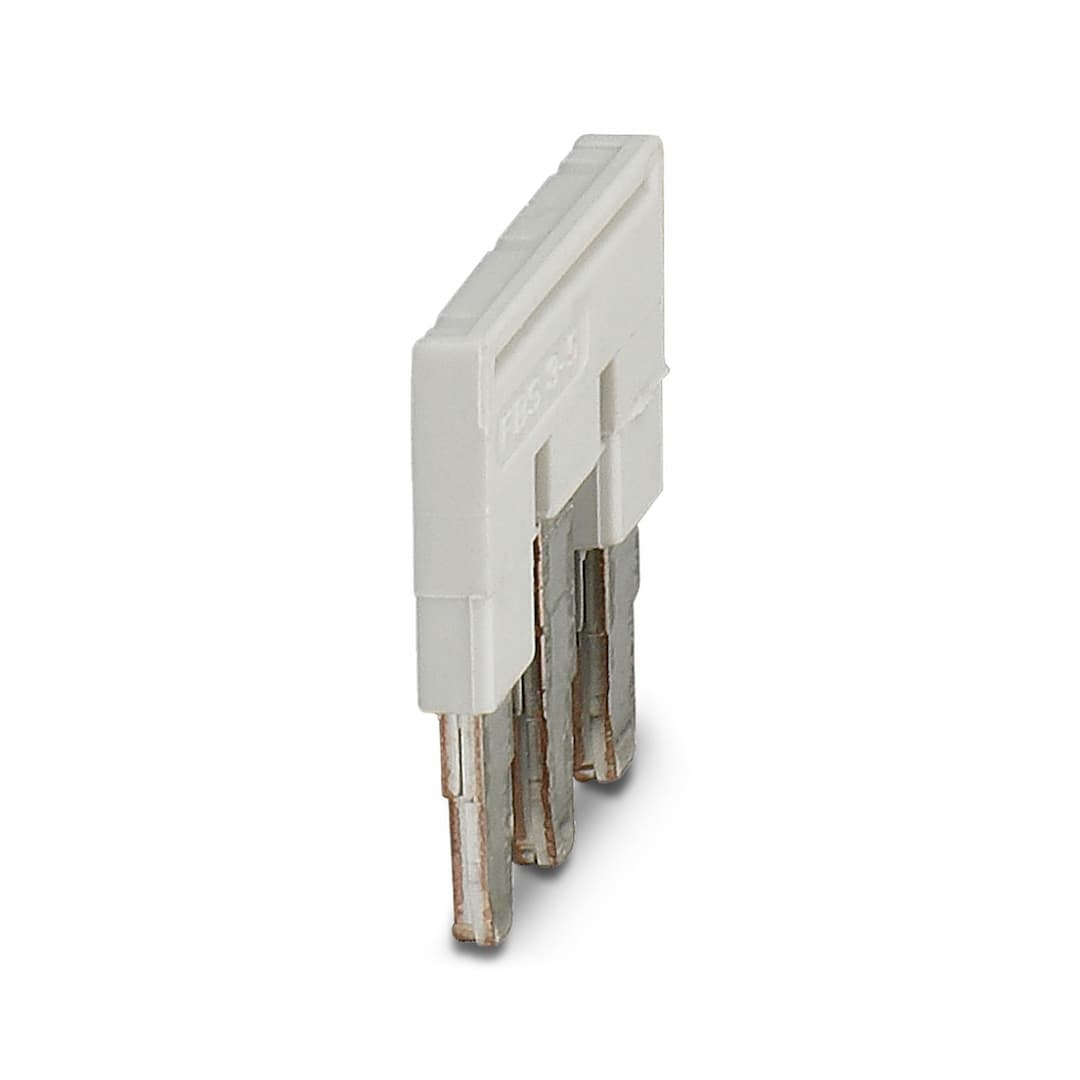

FBS 3-5 GY
Product ID:21559
Updated: 2026/7/29
Key Features
- 1Supports up to 17.5 A, suitable for demanding industrial applications.
- 2Constructed from high-quality copper with a flammability rating of V0 according to UL 94.
- 3Can bridge up to 50 terminal blocks in one step, enhancing efficiency in wiring systems.
- 4Operates within a wide ambient temperature range (-60 °C to 105 °C) and humidity levels (30 % to 70 %).
- 5Features plug-in mounting for quick and secure connection to terminal blocks.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 3 |
| Pitch | 5.2 mm | Article revision | 05 |
| Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Pitch | 5.2 mm | Color | gray (RAL 7042) |
| Material | Copper | Flammability rating according to UL 94 | V0 |
| Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
