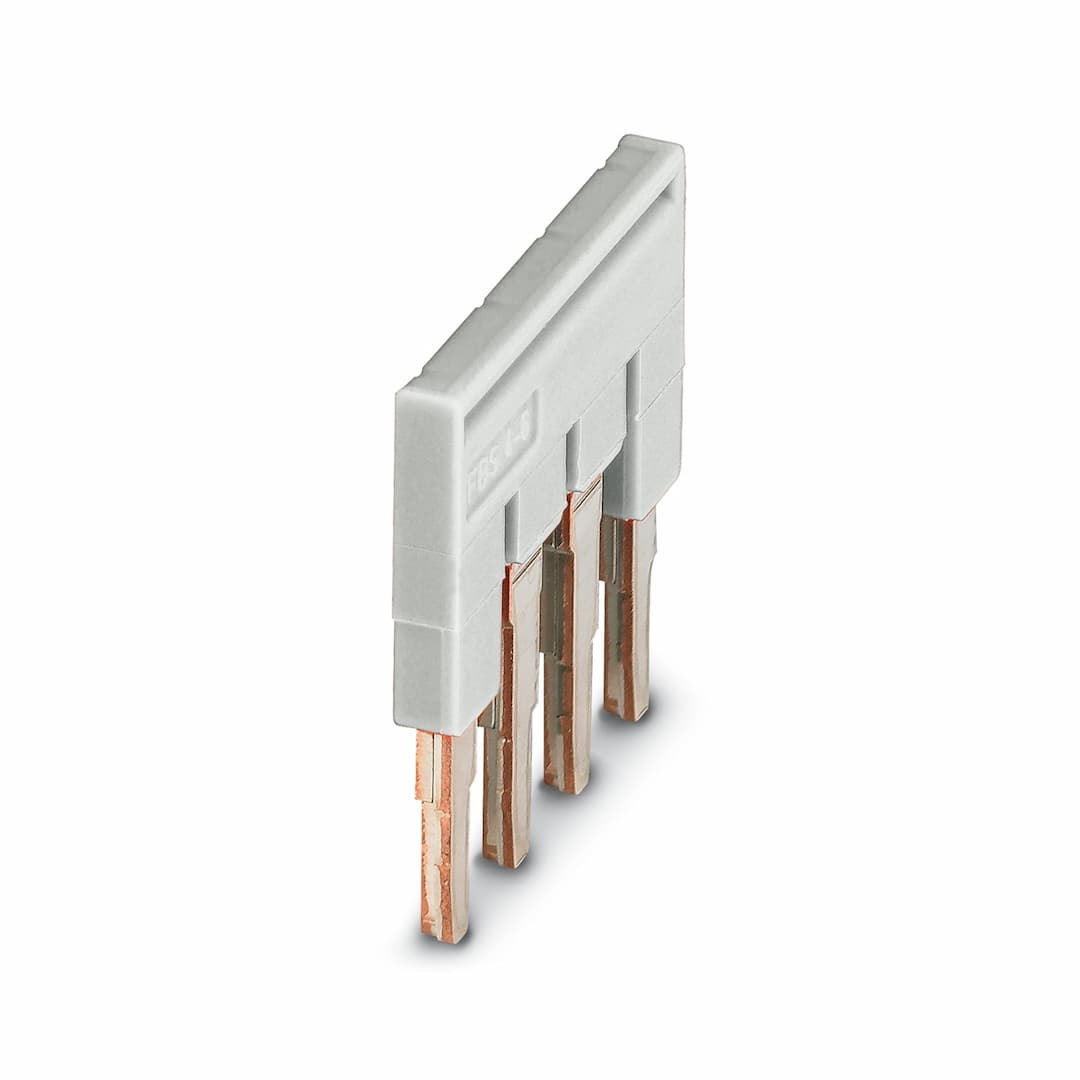

FBS 4-6 GY
Product ID:18146
Updated: 2026/7/12
Key Features
- 1Durable and reliable, designed for long-lasting use in industrial settings.
- 2Plug-in design makes it simple to integrate into existing systems.
- 3Suitable for a wide range of electrical connections and applications.
- 4Gray color ensures visibility and ease of use in various environments.
- 5Supports up to 4 connections, providing flexibility in your electrical setup.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 4 |
| Pitch | 6.2 mm | Article revision | 04 |
| Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Width | 23.1 mm | Height | 23 mm |
| Depth | 23 mm | Pitch | 6.2 mm |
| Color | gray (RAL 7042) | Material | Copper |
| Flammability rating according to UL 94 | V0 | Insulating material | PA |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
