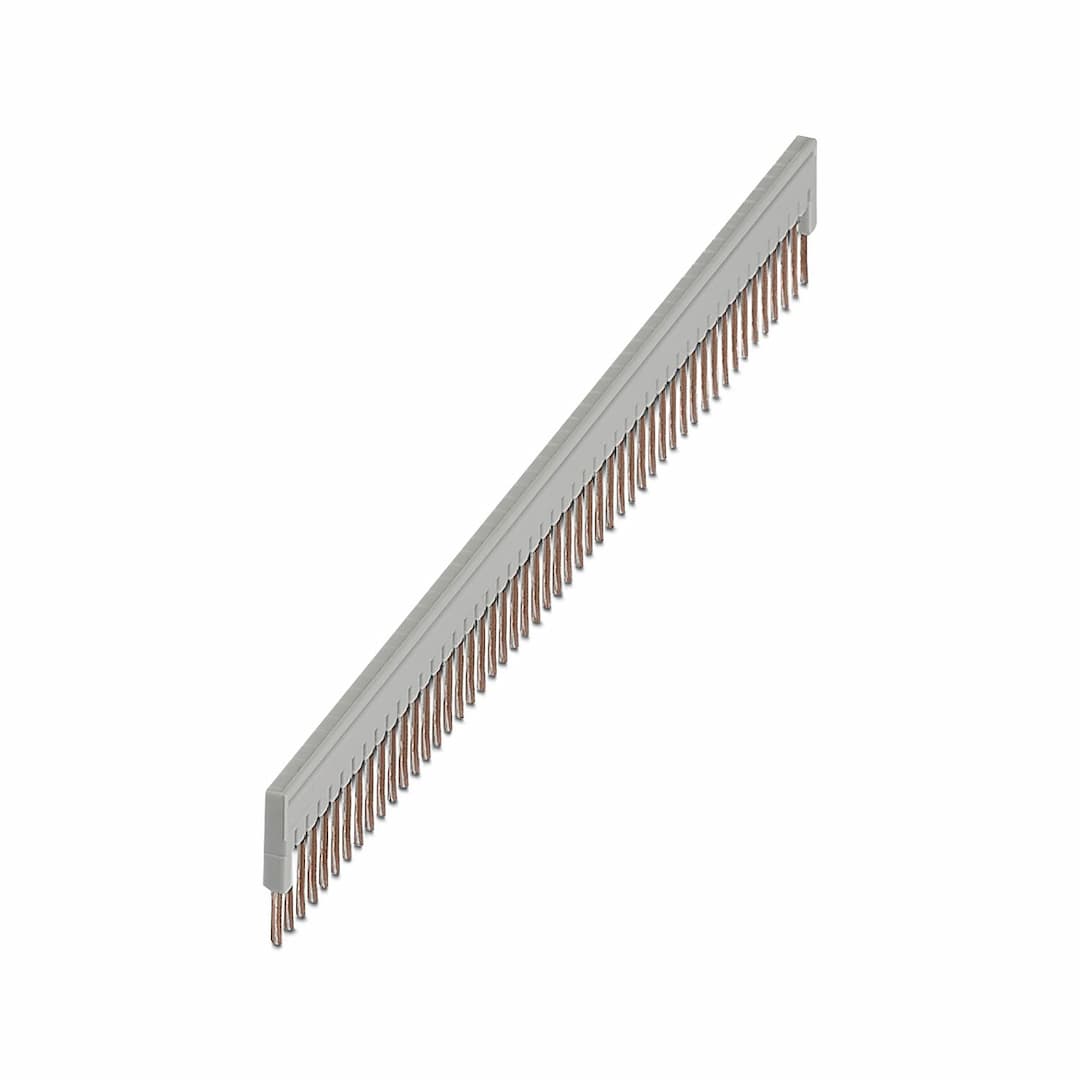

FBS 50-3,5 GY
Product ID:20892
Updated: 2026/7/30
Key Features
- 1Efficient Terminal Block Connection: Bridge up to 50 terminal blocks in one step with the FBS 50-3.5 GY.
- 2High Load Capacity: Supports a maximum load current of 17.5 A, ensuring reliable connections.
- 3Durable Design: Constructed with high-quality materials for long-lasting performance.
- 4Easy Installation: Simple to install and use, reducing setup time and effort.
- 5Versatile Application: Suitable for various industrial applications, including automation and control systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Version with single- or double-sided cutting edge. Please keep in mind the possible impact on touch protection | Product type | Jumper |
| Number of positions | 50 | Pitch | 3.5 mm |
| Article revision | 03 | Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Pitch | 3.5 mm |
| Color | gray (RAL 7042) | Material | Copper |
| Flammability rating according to UL 94 | V0 | Insulating material | PA |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
