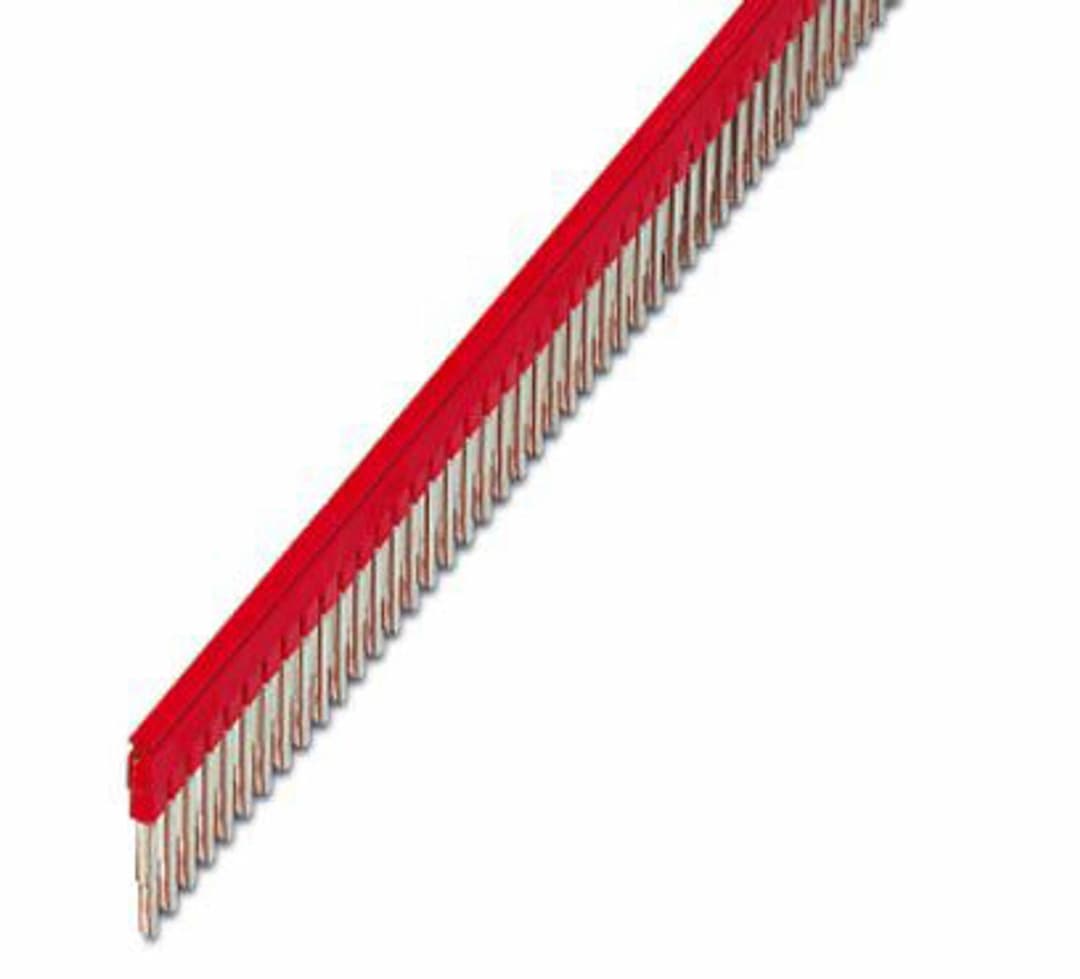

FBS 50-6
Product ID:17968
Updated: 2026/7/12
Key Features
- 1Effortless connection: Simple push-in design saves time and effort.
- 2High load capacity: Supports up to 41 A maximum load current.
- 3Red plastic cover: Easy to identify and use with the red plastic cover over the pins.
- 4Compact design: Perfect for bridging up to 50 terminal blocks in one step.
- 5Quality assurance: Meets ANSI/ESD S20.20 and EN61340-5-1 electrostatic control standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 50 |
| Pitch | 6.2 mm | Article revision | 06 |
| Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Width | 308.3 mm | Height | 23 mm |
| Depth | 23 mm | Pitch | 6.2 mm |
| Color | red (RAL 3001) | Material | Copper |
| Flammability rating according to UL 94 | V0 | Insulating material | PA |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
