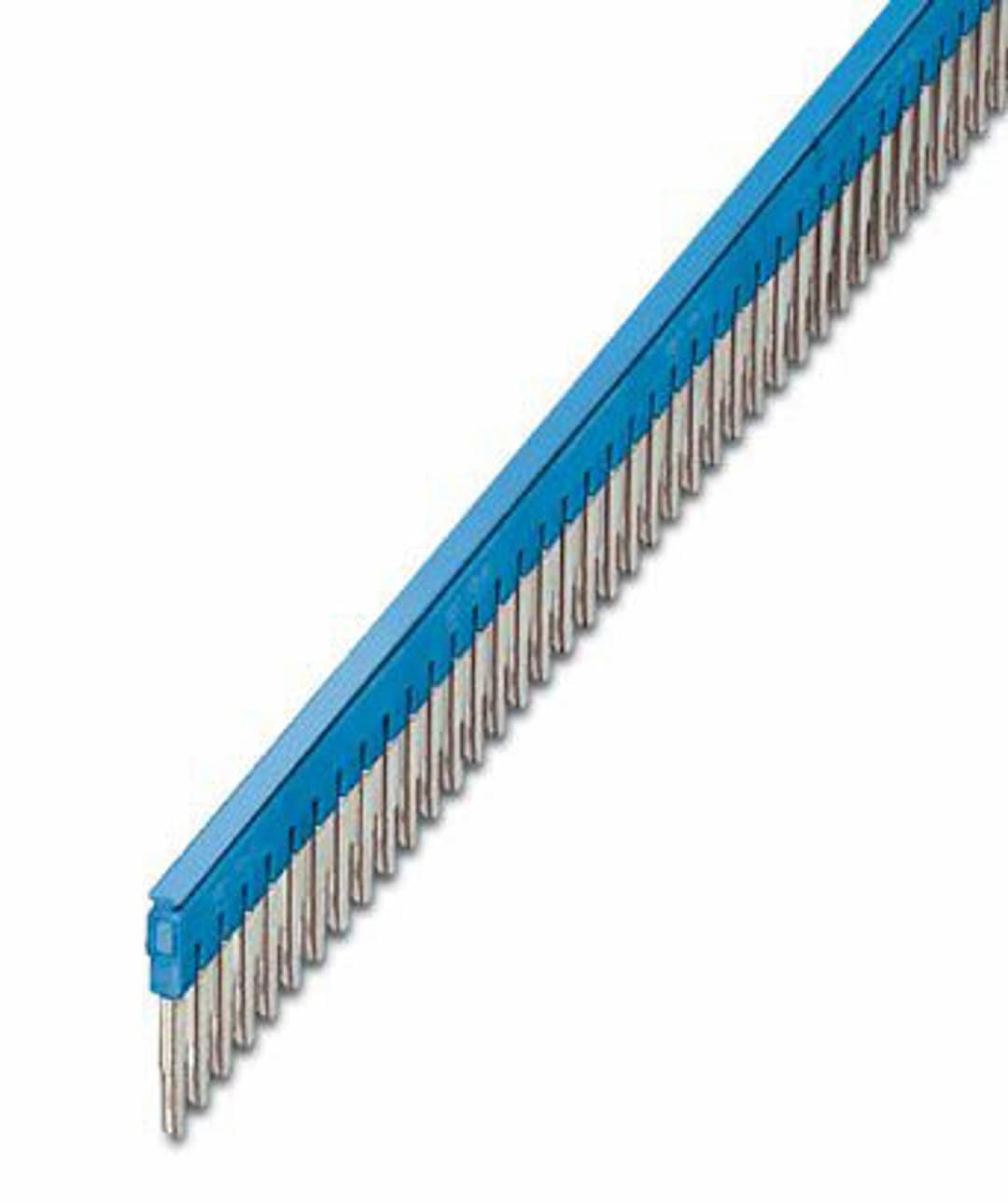

FBS 50-6 BU
Product ID:20797
Updated: 2026/7/30
Key Features
- 1Efficient Terminal Block Connection: The FBS 50-6 BU plug-in bridge connects up to 50 terminal blocks in one step, simplifying wiring processes.
- 2High Load Capacity: With a maximum load current of 32 A, this bridge ensures reliable connections in various applications.
- 3Compact Design: Featuring a pitch of 6.2 mm and a blue color, the FBS 50-6 BU is designed for compact and organized wiring systems.
- 4Environmental Compliance: Meets China RoHS standards and is environmentally friendly with no hazardous substances above threshold values.
- 5Versatile Compatibility: Compatible with CLIPLINE systems and various modular terminal blocks, making it a versatile solution for different applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 50 |
| Pitch | 6.2 mm | Article revision | 04 |
| Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Width | 308.3 mm | Height | 23 mm |
| Depth | 23 mm | Pitch | 6.2 mm |
| Color | blue (RAL 5015) | Material | Copper |
| Flammability rating according to UL 94 | V0 | Insulating material | PA |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
