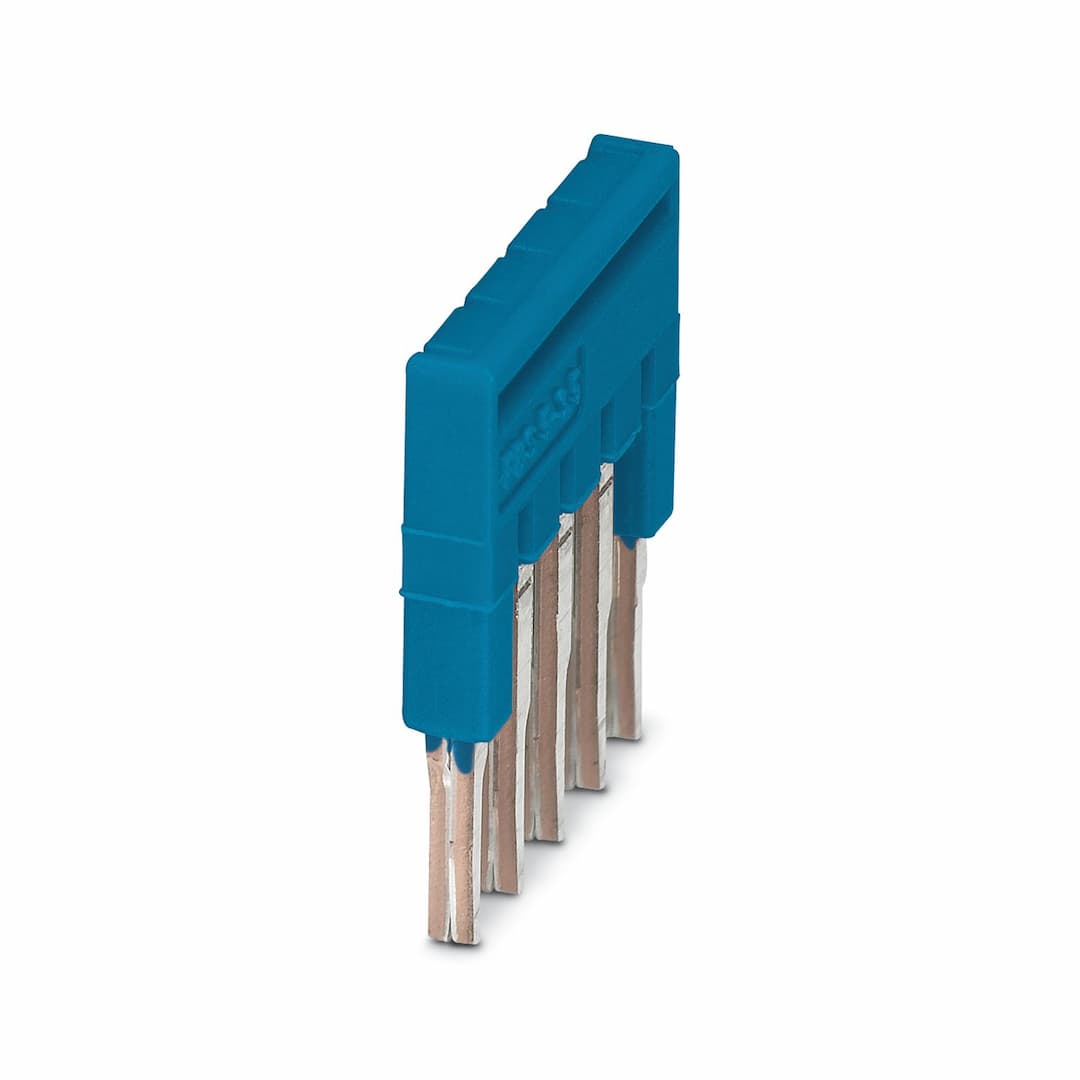

FBS 5-3,5 BU
Product ID:20531
Updated: 2026/7/12
Key Features
- 1Supports up to 17.5 A, ensuring robust connectivity in demanding applications.
- 23.5 mm pitch and 5 positions for efficient use in modular terminal blocks.
- 3Meets UL 94 V0 flammability rating and China RoHS standards, ensuring environmentally friendly use.
- 4Made from copper material for long-lasting performance and reliability.
- 5Suitable for various modular terminal blocks, offering flexibility in system integration.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 5 |
| Pitch | 3.5 mm | Article revision | 03 |
| Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 17.5 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Pitch | 3.5 mm | Color | blue (RAL 5015) |
| Material | Copper | Flammability rating according to UL 94 | V0 |
| Insulating material | PA | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
