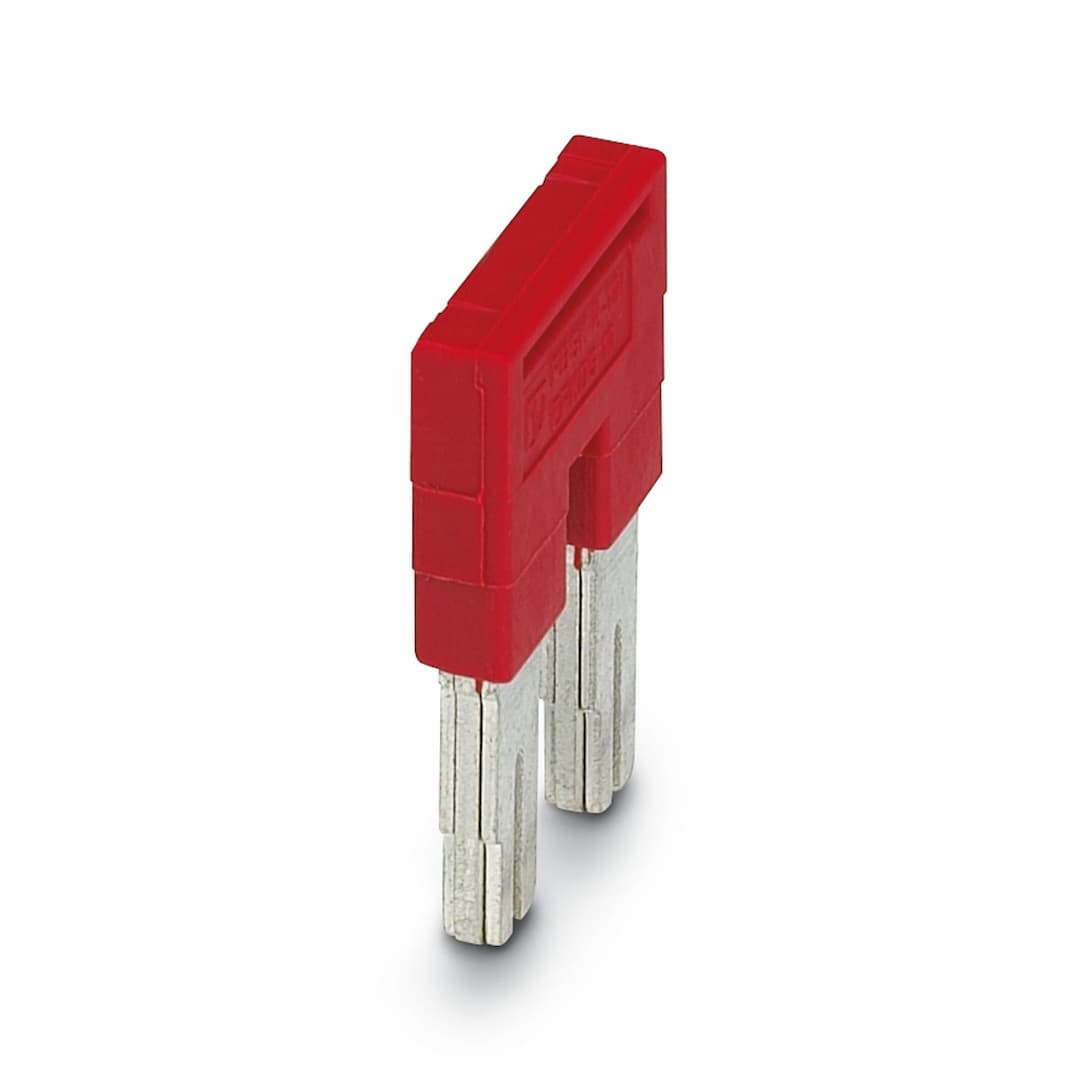

FBSK 3-10/ZFKDS 10
Product ID:22725
Updated: 2026/7/12
Key Features
- 1High-Quality Construction: Made from WEEE/RoHS-compliant Cu alloy for durability and environmental sustainability.
- 2Efficient Design: Fully insulated with a pitch of 10 mm, ensuring precise connections and reduced risk of electrical shorts.
- 3Versatile Use: Compatible with DIN rail terminal blocks, suitable for a wide range of electrical projects.
- 4Easy Installation: Spring-cage connection method for quick and secure mounting using wave soldering.
- 5Comprehensive Testing: Meets stringent standards including IEC 60068-2-82/JEDEC JESD 201 for whisker-free contacts and EN 60695-2-12 for glow wire flammability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Bridge | Product family | FBSK |
| Product line | COMBICON Terminals Special | Number of positions | 3 |
| Pitch | 10 mm | Number of connections | 3 |
| Number of rows | 1 | Number of potentials | 3 |
| Article revision | 02 | Pitch | 10 mm |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 | Contact material | Cu alloy |
| Color (Housing) | red (3001) | Insulating material | PA |
| Insulating material group | I | CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 | Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 | Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
| Insulating material | PA | CTI according to IEC 60112 | 600 |
Specifications may be subject to change without notice
