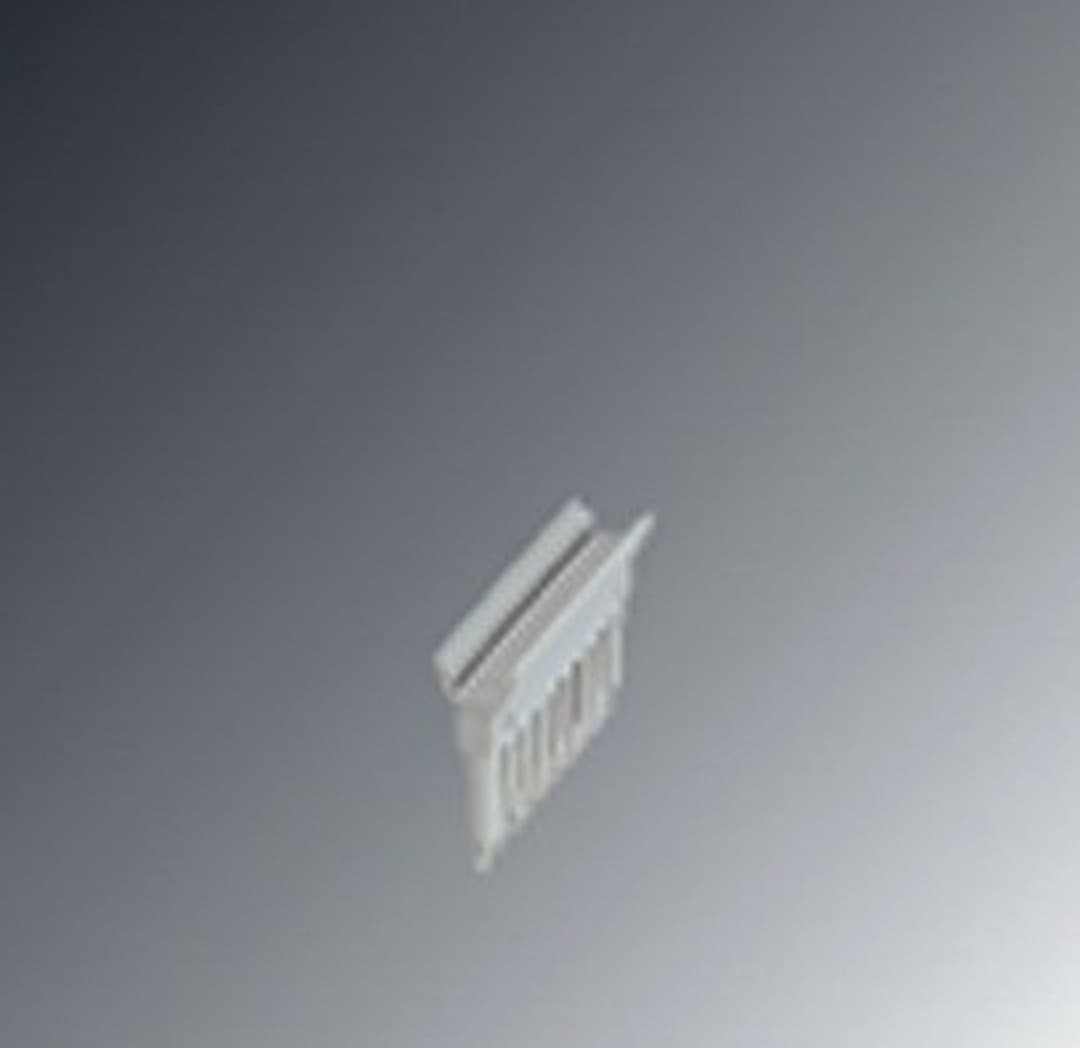

FBSTB 10-5
Product ID:17768
Updated: 2026/8/4
Key Features
- 1The FBS 10-5 plug-in bridge measures 23mm in length and 50.6mm in width, making it a space-efficient solution.
- 2Made from high-quality copper, these contacts ensure reliable and long-lasting connections.
- 3Plug-in design allows for quick and easy installation, reducing setup time.
- 4Supports up to 24A of current, making it suitable for demanding electrical applications.
- 5Meets EU RoHS directives, ensuring environmental safety and compliance with regulatory standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Jumper | Number of positions | 10 |
| Pitch | 5.2 mm | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Pitch | 5.2 mm |
| Color | red | Material | Copper |
| Flammability rating according to UL 94 | V0 | Insulating material | PA |
| Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
