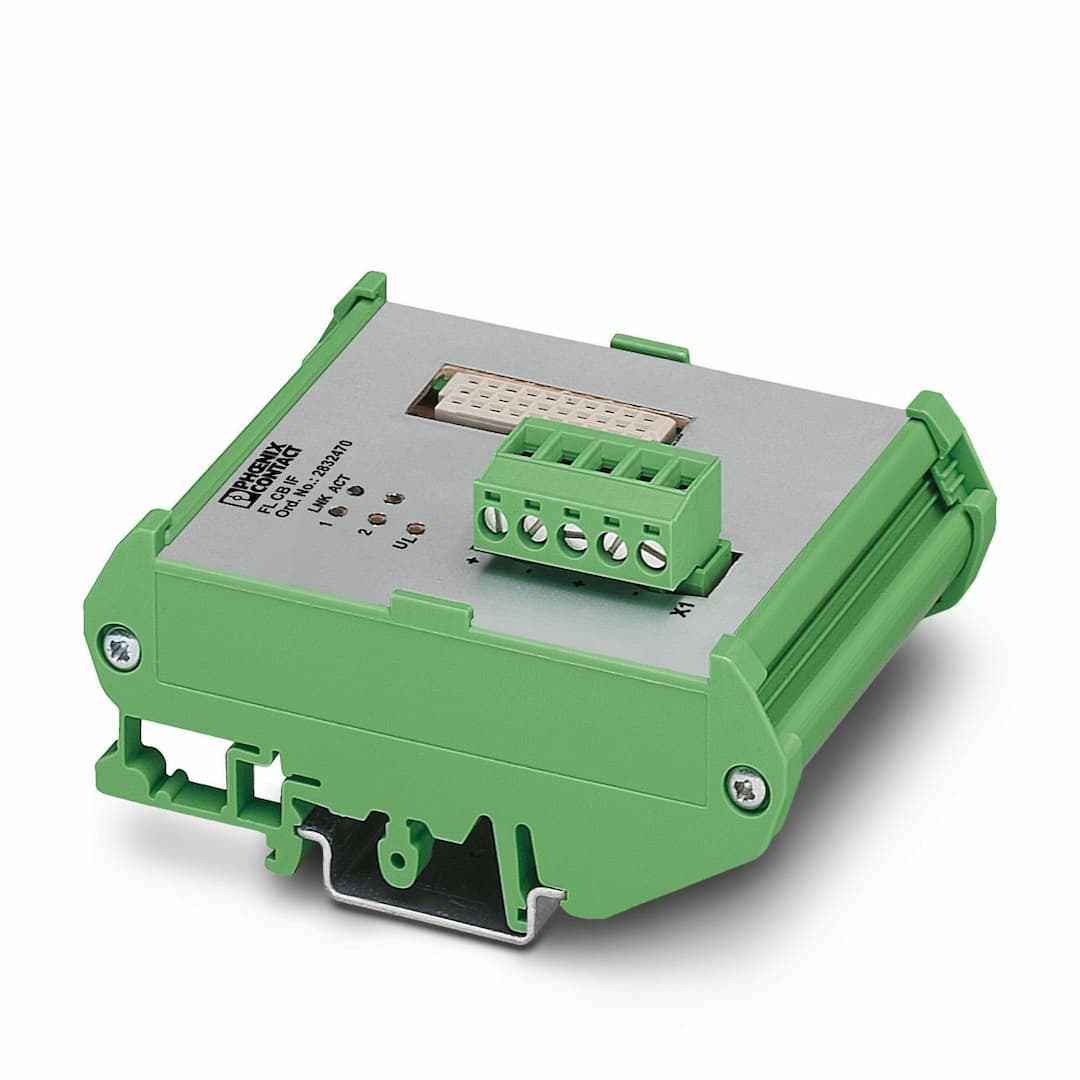

FL CB IF
Product ID:19363
Updated: 2026/8/1
Key Features
- 1Auto negotiation and autocrossing detection simplify installation and setup.
- 2Local diagnostic indicators with LEDs for easy troubleshooting.
- 3Five RJ45 ports supporting 10/100 Mbps transmission speed on all ports.
- 4Quality of Service (QoS) prioritization for critical automation protocols.
- 5PROFINET conformance Class A for real-time data exchange in industrial environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Media converter | Type | Stand-Alone |
| Electrical isolation | Logics / Supply / Port 1 / Port 2 / FE | Local diagnostics | LINK Port 1 Link status Port 1 Green LED
LINK Port 2 Link status Port 2 Green LED
ACT Port 1 Telegrams received at Port 1 Yellow LED
ACT Port 2 Link status Port 2 Yellow LED |
| Test voltage | 500 V AC | Transmission medium | Copper
FO |
| Supply voltage | 24 V DC | Supply voltage range | 18.5 V DC ... 30.2 V DC |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
| Typical current consumption | 1.01 A (output current = 1 A) | Connection method | 4-pos. COMBICON |
| Width | 67 mm | Height | 90 mm |
| Depth | 39 mm | Color | green |
| Housing material | PA V0, color green | Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Electromagnetic compatibility | Conformance with EMC directive 89/336/EC |
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion A
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion A | Free from substances that could impair the application of coating | In acc. with VW specification |
| Electrical isolation | Logics / Supply / Port 1 / Port 2 / FE | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
