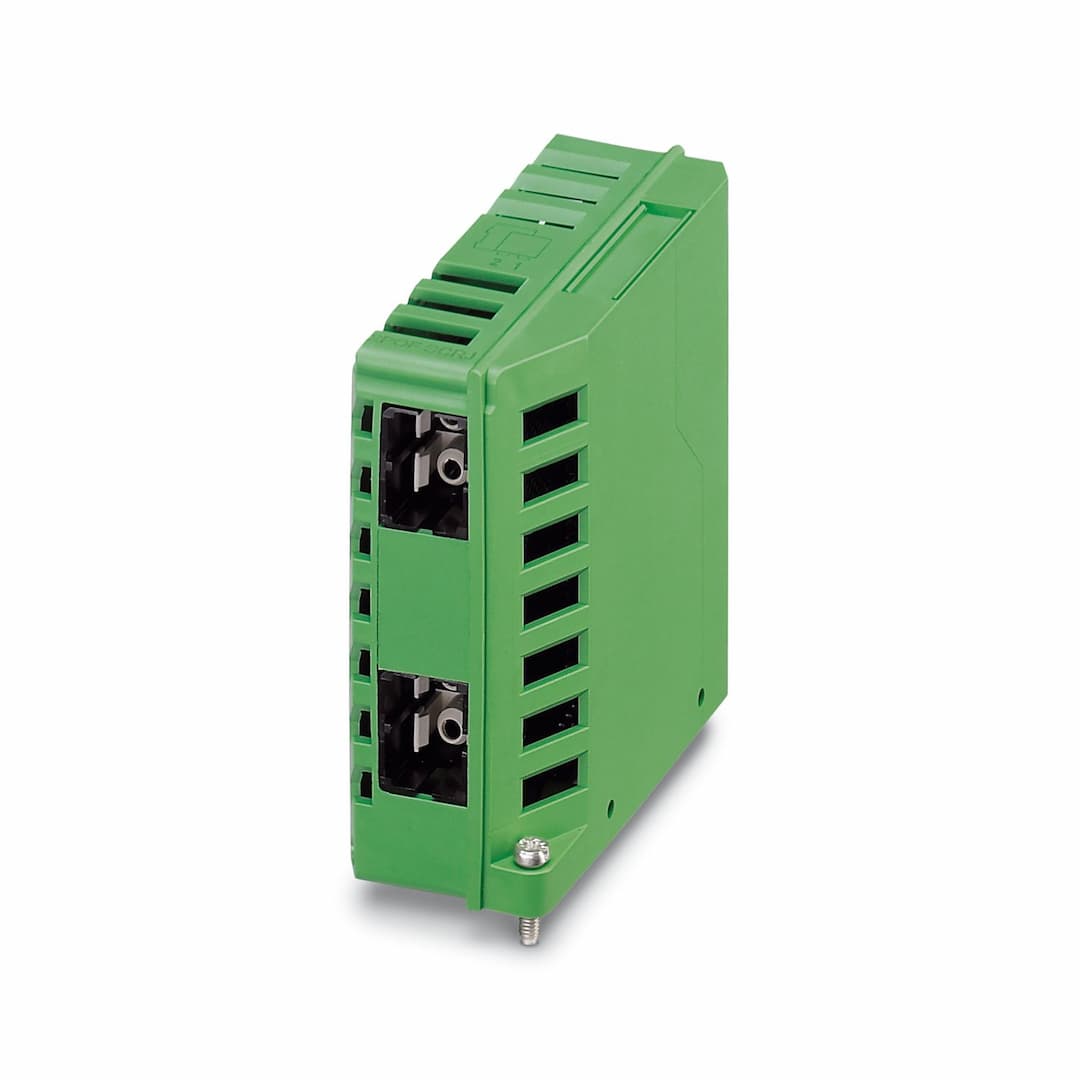

FL IF 2POF SCRJ-D
Product ID:20567
Updated: 2026/7/30
Key Features
- 1High-speed fiber optic interface: Ideal for industrial applications requiring fast data transmission.
- 2100 Mbps transmission speed: Ensures efficient data transfer over long distances.
- 32 SC-RJ ports: Supports dual connection for enhanced reliability and flexibility.
- 450 m transmission length: Includes a 3 dB system reserve for optimal signal integrity.
- 5Durable and reliable design: Built to withstand harsh industrial environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Extension module | Type | fine granularity |
| Article revision | 08 | Basic functions | Media module for Modular Managed Switch with FO diagnosis |
| Maximum power dissipation for nominal condition | 21.6 W | Transmission medium | FO |
| Supply voltage (DC) | 48 V DC (via head station) | Power supply connection | from FL SWITCH GHS or FXT |
| Typical current consumption | 200 mA | Connection method | Can be plugged onto FL SWITCH MM HS or FL MXT |
| Connection method | Can be plugged onto FL SWITCH MM HS or FL MXT | Transmission length | max. 50 m (including 3 dB system reserve, polymer fiber with 980/1000 230 dB/km) |
| Connection method | SC-RJ | Transmission speed | 100 Mbps |
| Transmission length | 50 m (including 3 dB system reserve, polymer fiber with F-K 980/1000 230 dB/km)
100 m (PCF fiber with F-S 200/230 10 dB/km) | No. of channels | 2 (SC-RJ) |
| Width | 31 mm | Height | 73.5 mm |
| Depth | 72.5 mm | Color | green |
| Flammability rating according to UL 94 | V0 | Housing material | PA |
| Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Noise immunity | EN 61000-6-2:2005 |
| Noise emission | EN 61000-6-3/-4 | Mounting type | In the host system |
Specifications may be subject to change without notice
