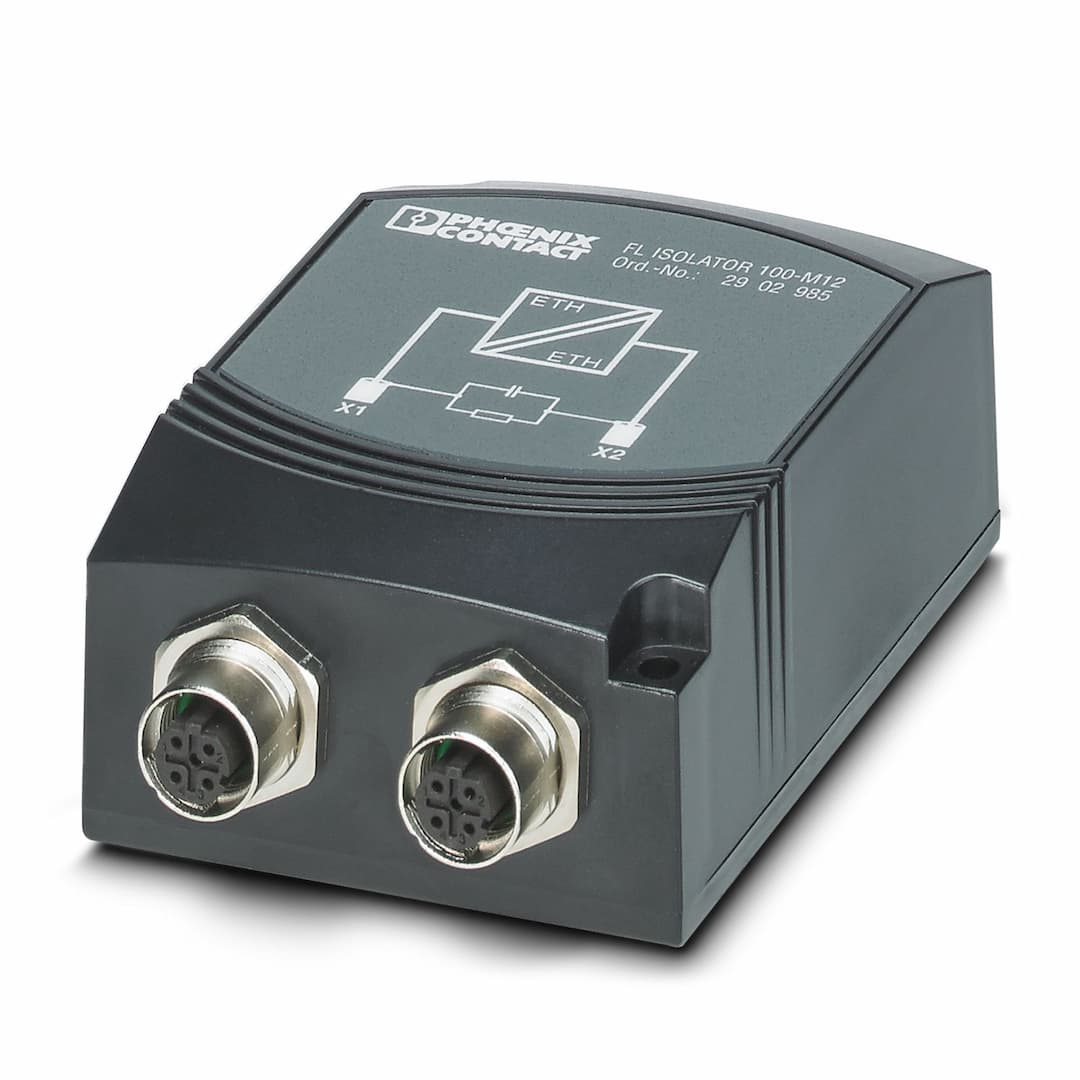

FL ISOLATOR 100-M12 RMS
Product ID:21426
Updated: 2026/7/29
Key Features
- 1No power supply required for operation.
- 2Dielectric strength of up to 4 kV for reliable electrical isolation.
- 3Continuous insulation voltage of 250 VRMS for enhanced protection.
- 4Protection against aggressive environmental influences, including harsh industrial conditions.
- 5Approval for railway applications according to EN 50155 and EN 50121.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Network isolator |
| MTTF | 18372 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
13381 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
3348 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) | MTBF | 38062 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
12264 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
| Electrical isolation | Port X1//port X2 | Insulation voltage input/output | 250 V |
| Test voltage data interface/data interface | 4 kV AC (50 Hz, 1 min.) | Supply voltage range | passive module, no supply voltage required |
| Signal | Ethernet
PROFINET | Serial transmission speed | 10/100 Mbps |
| Connection method | M12 connectors (D-coded, female) | No. of channels | 1 |
| Transmission length | ≤ 100 m (Total length across both ports (dependent on data rate and cable used)) | Protocols supported | Transparent protocol for IPv4 and IPv6 |
| Connection method | M12 connectors (D-coded, female) | No. of channels | 1 |
| Width | 66 mm | Height | 91 mm |
| Depth | 50 mm | Color (Housing) | black (RAL 9005) |
| Material Housing | FR 2010 | Flammability rating according to UL 94 | V0 |
| Shielding | no connection to protective earth ground (PE)
capacitive isolation between both shield connections | Degree of protection | IP54 |
| Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 75 °C (85°C for 10 min.; thereafter function can no longer be guaranteed - check device) |
| Permissible humidity (operation) | 10 % ... 95 % | Permissible humidity (storage/transport) | 5 % ... 95 % |
| Certificate | CE-compliant | Identification | ISA-S71.04-1985 G3 Harsh Group A |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Standards/regulations | EN 61000-4-4 |
| Standards/regulations | EN 61000-6-4 | Radio interference voltage in acc. with EN 55011 | Class B, area of application: Industry and residential |
| Emitted radio interference in acc. with EN 55011 | Class B, area of application: Industry and residential | Standards/regulations | EN 50121 and EN 50155 (for railway applications)
IEC 60571 |
| Mounting type | DIN rail mounting | Mounting position | Alignable on DIN rail |
Specifications may be subject to change without notice
