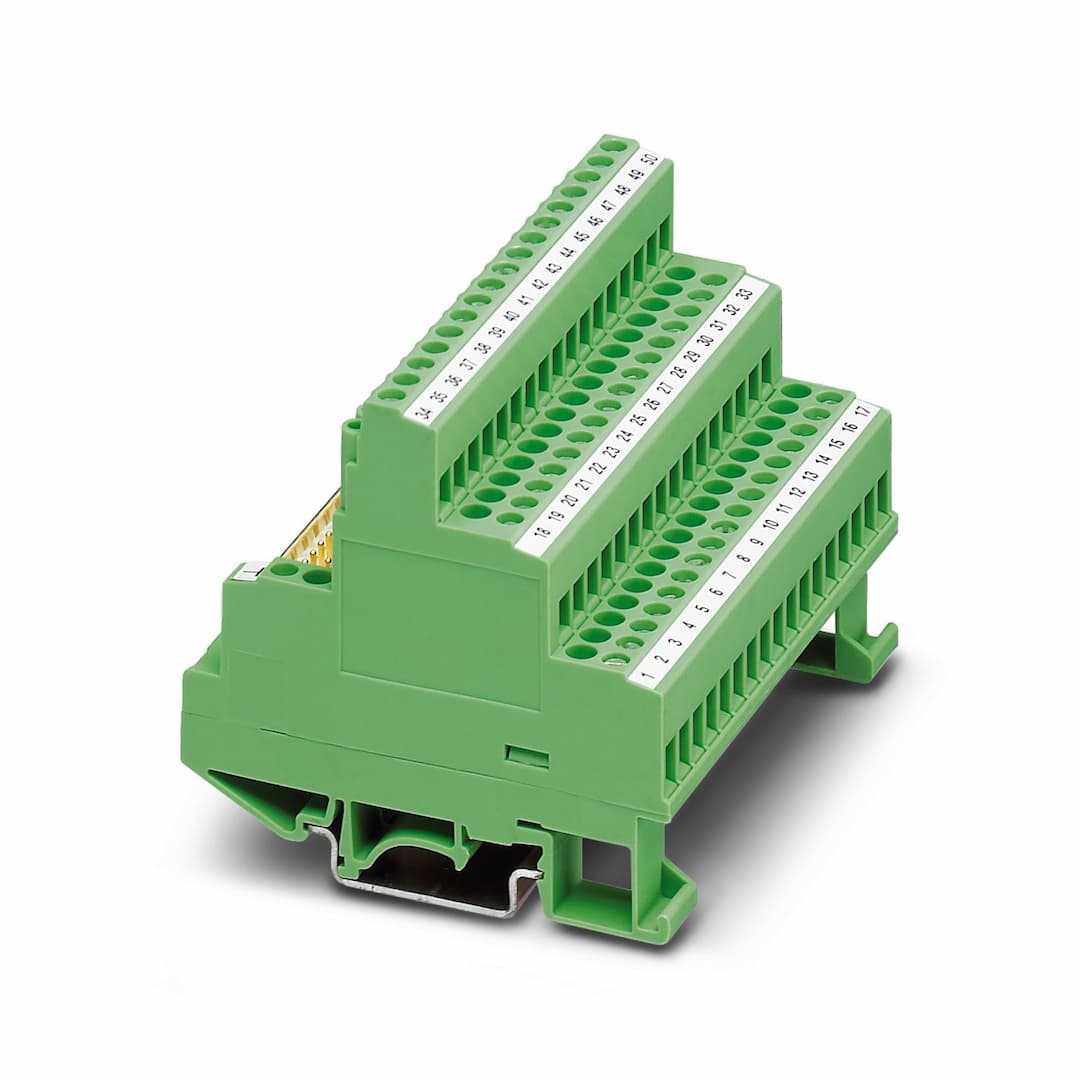

FLK-D50 SUB/S
Product ID:23648
Updated: 2026/7/12
Key Features
- 1High-Quality Construction: Built with durable polyamide 6 housing for reliable performance.
- 250 Positions: Accommodates up to 50 connections with separate test sockets for each channel.
- 3Screw Connection: Easy mounting on NS 35/7.5 or NS 32 with M3 screw thread.
- 4D-Subminiature Connector: Compatible with D-SUB pin strip connections.
- 5Compliant with Standards: Meets IEC 60664 and DIN EN 50178 standards for safety and reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | Product family | VARIOFACE |
| Number of positions | 50 | Overvoltage category | II |
| Pollution degree | 2 | Nominal voltage U | 125 V AC |
| Max. current carrying capacity per branch | 2.5 A | Max. total current of all branches | 75 A |
| Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Note | separate test socket for each channel | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Connection method | D-SUB pin strip | Number of positions | 50 |
| Status display present | No | Width | 86 mm |
| Height | 71 mm | Depth | 51.2 mm |
| Color | green (RAL 6021) | Housing insulation material | Polyamide 6 green |
| Ambient temperature (operation) | -25 °C ... 50 °C | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Standards/regulations | IEC 60664
DIN EN 50178 | Mounting type | DIN rail mounting |
| Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
