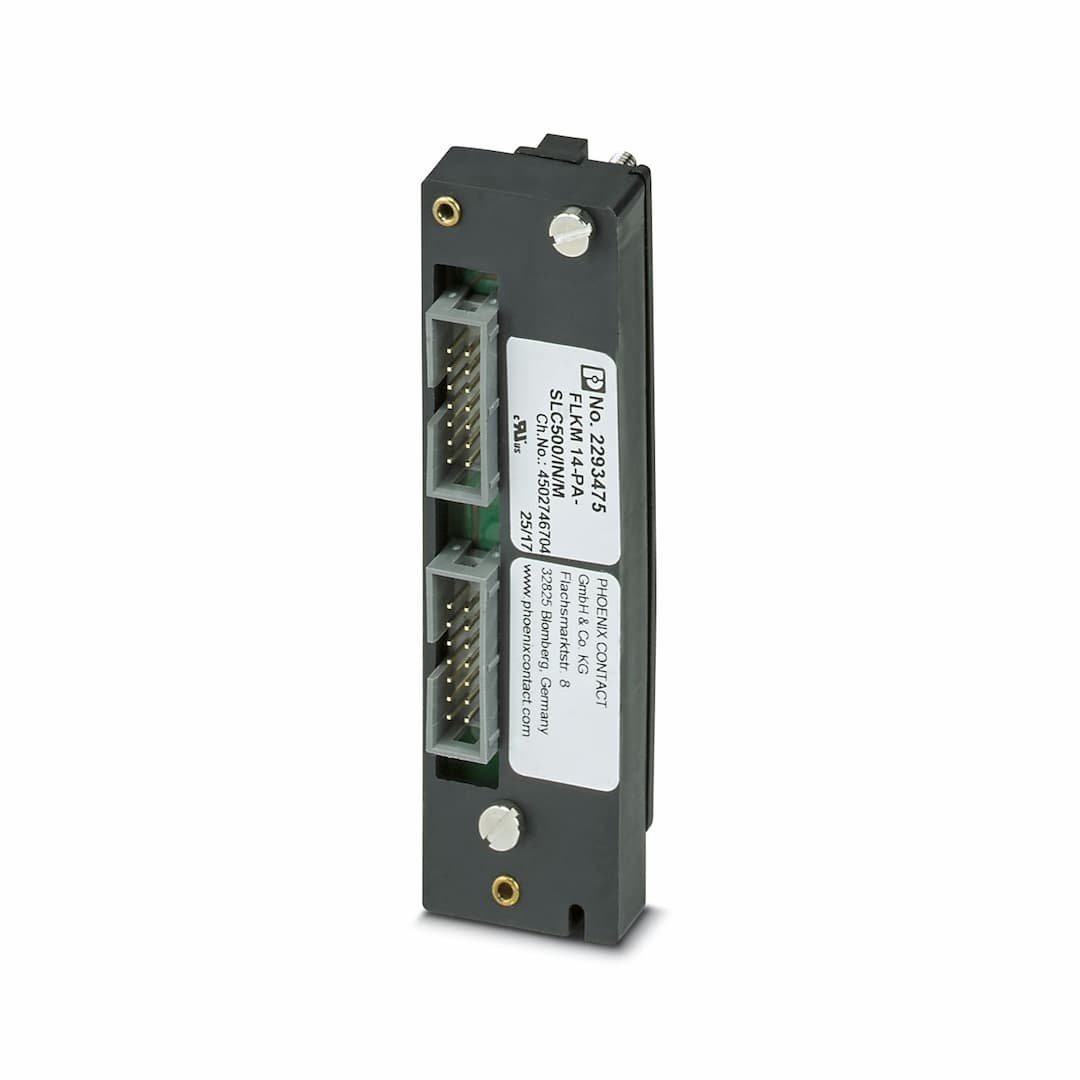

FLKM 14-PA-SLC500/IN/M
Product ID:17905
Updated: 2026/8/4
Key Features
- 1Connects 2 x 8 channels for Allen-Bradley SLC 500, 1746 IV16, and ITV16.
- 2VARIOFACE design offers versatile connection options.
- 3Compliant with IEC 60664 and DIN EN 50178 standards.
- 4Operates within -20°C to 50°C ambient temperature range.
- 5High-quality, reliable performance for industrial applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Front adapter | Insulation | Functional insulation |
| Overvoltage category | II | Pollution degree | 2 |
| Operating voltage (AC) | ≤ 25 V AC | Operating voltage (DC) | ≤ 60 V DC |
| Current (Per path) | ≤ 1 A | Current (Total current per byte) | ≤ 2 A (Feed-in via connector) |
| Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV |
| Suitable I/O card | 1746 IV16
1746 ITV16 | Connection method | IDC/FLK pin strip |
| Number of connections | 2 | Number of positions | 14 |
| Pitch | 2.54 mm | Degree of protection | IP00 |
| Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | IEC 60664
DIN EN 50178 | Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
