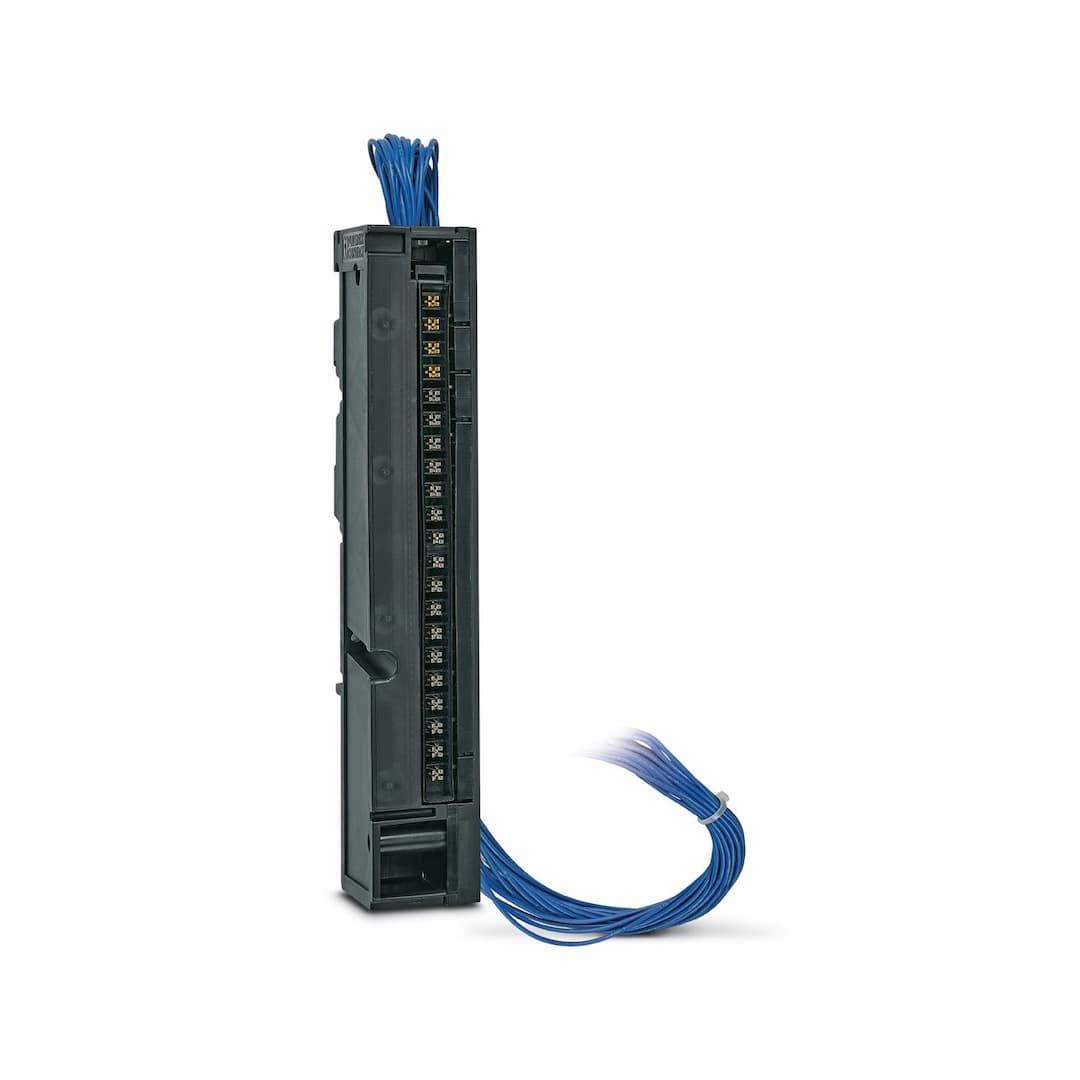

FLKM-1771-WG/OE/21X0,5/0,7M
Product ID:19356
Updated: 2026/8/1
Key Features
- 1Seamless Conversion: Converts Allen Bradley PLC-5 to Siemens S7-1500 with ease.
- 2High Current Capacity: Supports up to 42 A total current for reliable operation.
- 3Wide Operating Range: Operates within -20 °C to 60 °C ambient temperature.
- 4Durable Design: Features basic insulation and meets overvoltage category III standards.
- 5Compliant with Regulations: CE-compliant and UL Listed for safety assurance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Front adapter | Article revision | 02 |
| Insulation | Basic insulation | Overvoltage category | III |
| Pollution degree | 2 | Max. permissible operating voltage | 264 V AC/DC |
| Max. permissible current | 2 A (per path) | Max. permissible total current | 42 A |
| Nominal operating mode | 100% operating factor | Mains frequency | 50/60 Hz |
| Rated insulation voltage | 280 V | Rated surge voltage | 4 kV |
| Connection method | Plug-in connection | Connection method | Single wires |
| Number of positions | 21 | Note | Wire marking: white number printing |
| Width | 35 mm | Height | 242 mm |
| Depth | 60 mm | Length | 0.7 m |
| Number of positions | 21 | Shielded | no |
| Conductor type | Round cable set | AWG signal line | 21 |
| Conductor cross section | 21x 0.5 mm² | Outer sheath, material | PVC |
| External sheath, color | blue | Conductor material | Bare Cu litz wires |
| Halogen-free | no | Flame resistance | UL VW-1 |
| Degree of protection | IP20 | Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient temperature (operation) | -20 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (Above sea level) | Permissible humidity (operation) | 95 % (non-condensing) |
| Certificate | CE-compliant | Identification | UL Listed UL 61010-2-201 |
| Standards/regulations | DIN EN 50178 | Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
