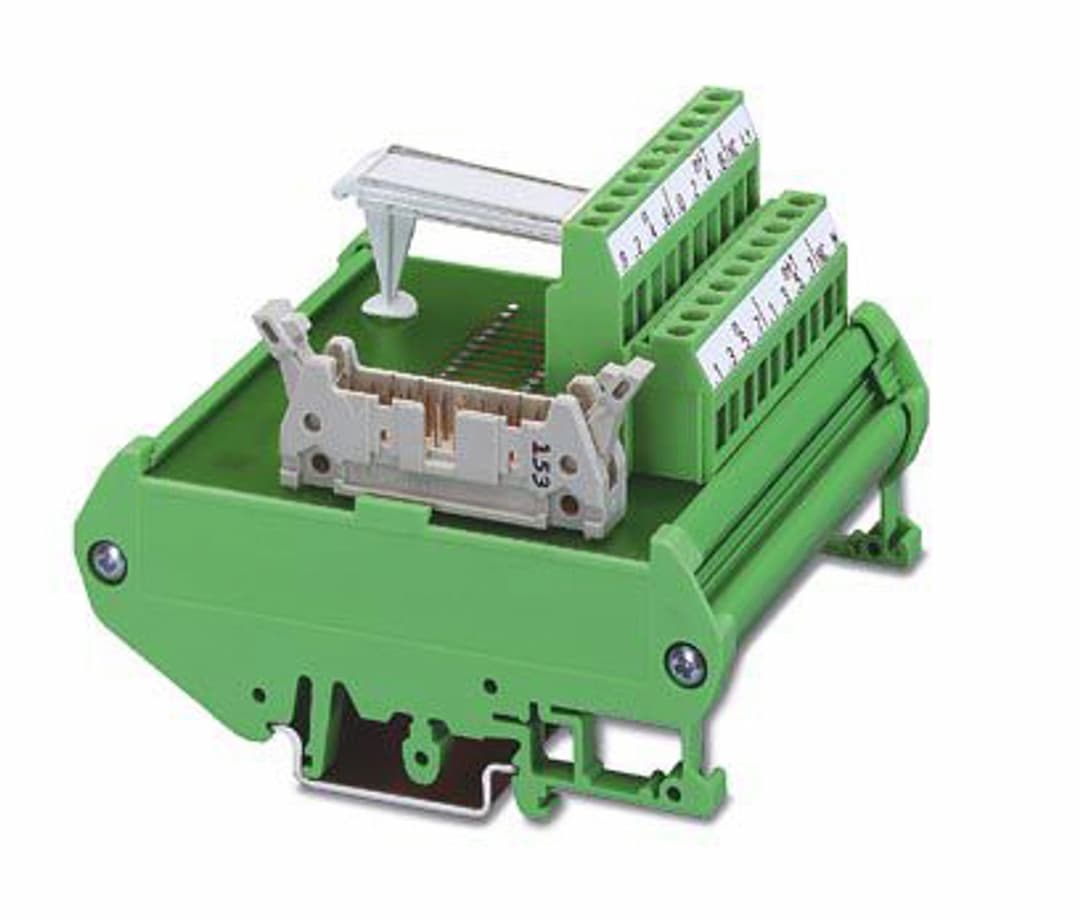

FLKM 20/I/S100
Product ID:19077
Updated: 2026/8/2
Key Features
- 116 Channels for Siemens SIMATIC S5-100U: Designed specifically for Siemens SIMATIC S5-100U systems.
- 2Robust Design: Built with high-quality materials for long-lasting performance in industrial environments.
- 3Easy Installation: Features screw connection method for quick and secure mounting.
- 4Operational Temperature Range: Compatible with ambient temperatures from -20°C to 50°C.
- 5Technical Specifications: Meets IEC 60664 and DIN VDE 0110 standards for reliability and safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | Product family | VARIOFACE |
| Overvoltage category | II | Pollution degree | 2 |
| Nominal voltage U | 30 V DC | Max. current carrying capacity per branch | 6.5 mA |
| Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Number of positions | 20 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 | Connection method | IDC/FLK pin strip |
| Number of connections | 1 | Number of positions | 20 |
| Pitch | 2.54 mm | Status display | no |
| Status display present | No | Width | 78.8 mm |
| Height | 90 mm | Depth | 68 mm |
| Color | green (RAL 6021) | Housing insulation material | Polyamide PA non-reinforced |
| Ambient temperature (operation) | -20 °C ... 50 °C | Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
DIN VDE 0160 (in parts) |
| Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
