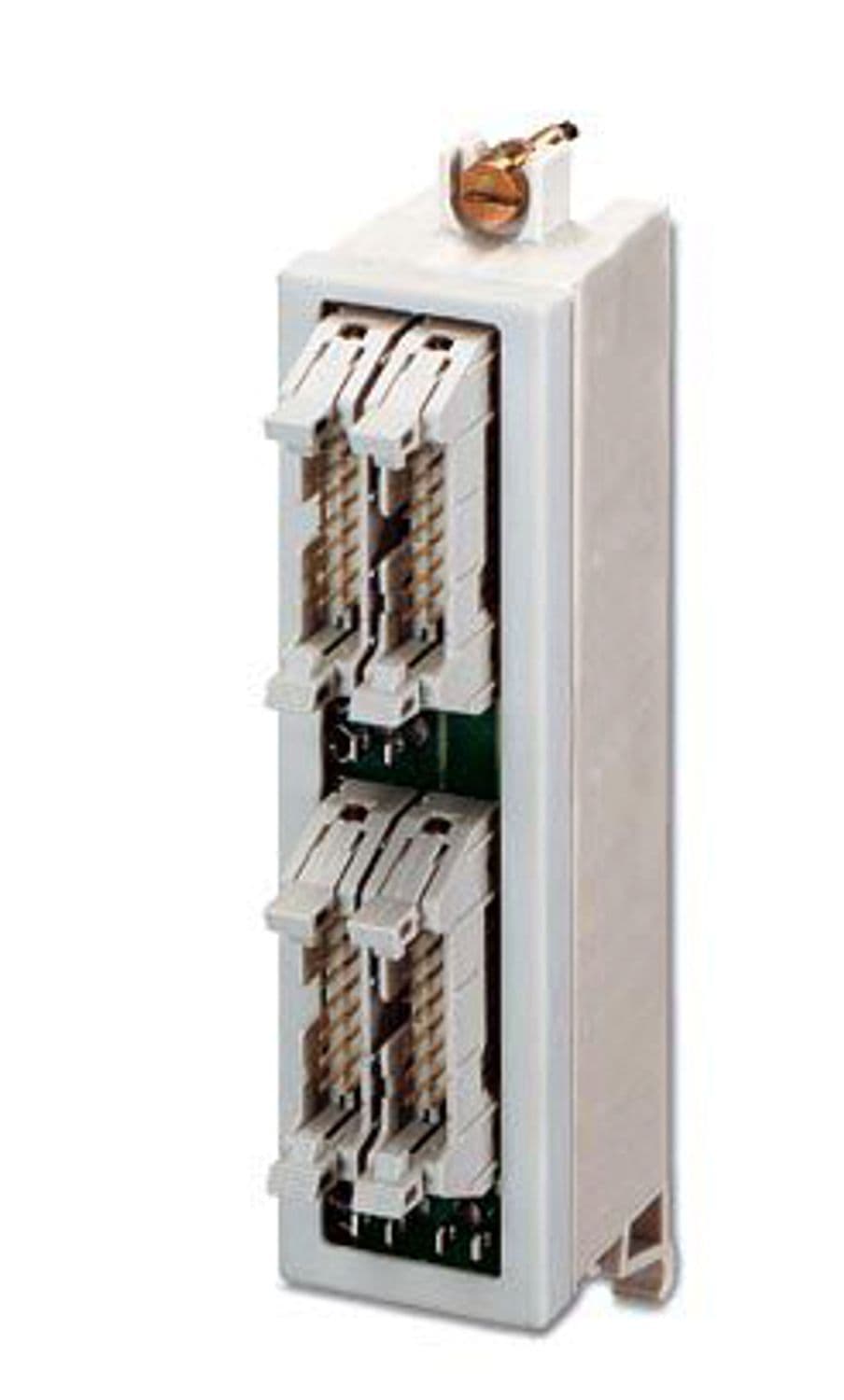

FLKM 4X14-PA-MA12/S100
Product ID:17882
Updated: 2026/8/4
Key Features
- 1Connects 4 x 8 channels for Siemens SIMATIC S5-95U and S5-100U I/O cards
- 224-month warranty with possible extension
- 3Fast shipping options available (UPS and Raben Group)
- 4Max. permissible operating voltage: <50 V AC, 60 V DC; Max. current: 0.5 A (per path)
- 5Ideal for PLC applications with same-day shipping and 2-year warranty
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Front adapter | Max. permissible operating voltage | < 50 V AC
60 V DC |
| Max. permissible current | 0.5 A (per path)
4 A (per slip-on connection (L+n+1, L+n, M)) | Connection method | IDC/FLK pin strip |
| Number of connections | 4 | Number of positions | 14 |
| Pitch | 2.54 mm | Ambient temperature (operation) | -20 °C ... 50 °C |
| Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
DIN VDE 0160 (in parts) | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
