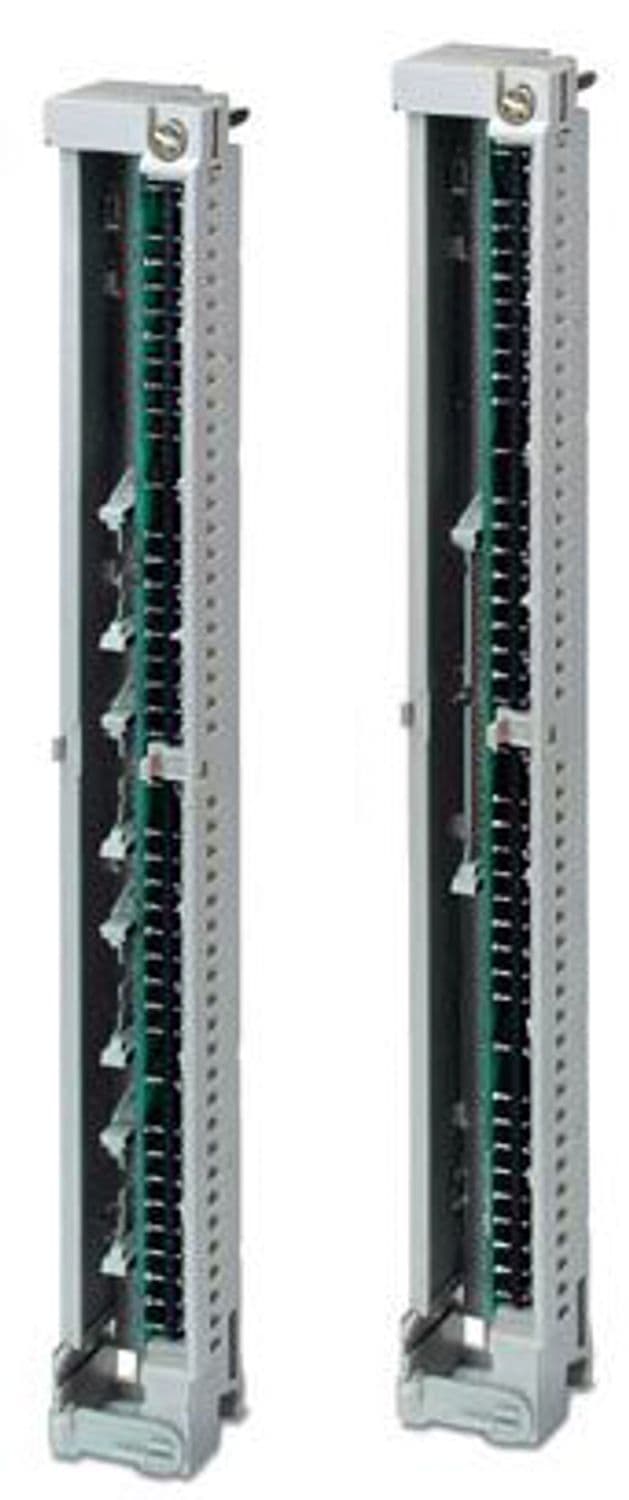

FLKM 50/4-FLK14/PA-S115
Product ID:18014
Updated: 2026/8/4
Key Features
- 1Connects 50-position system cables to four 14-position system cables via male connectors.
- 2Supports up to 32 I/O signals, split into 4 x 8 channels for efficient data transmission.
- 3Meets IEC 60664 and DIN EN 50178 standards for insulation and electrical properties.
- 4Compatible with various I/O cards, including DDI 353, DDI 853, DAI 353, and DAI 453.
- 5Operates within -20 °C to 50 °C ambient temperature range with IP00 degree of protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Front adapter | Overvoltage category | II |
| Pollution degree | 2 | Max. permissible operating voltage | < 50 V AC
60 V DC |
| Max. permissible current | 0.5 A (per path)
4 A (per connection, supply via separate power supply) | Max. permissible total current | 3 A (per Byte, for supply via connector) |
| Connection method | IDC/FLK pin strip | Number of connections | 4 |
| Number of positions | 14 | Pitch | 2.54 mm |
| Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
DIN VDE 0160 (in parts) | Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
