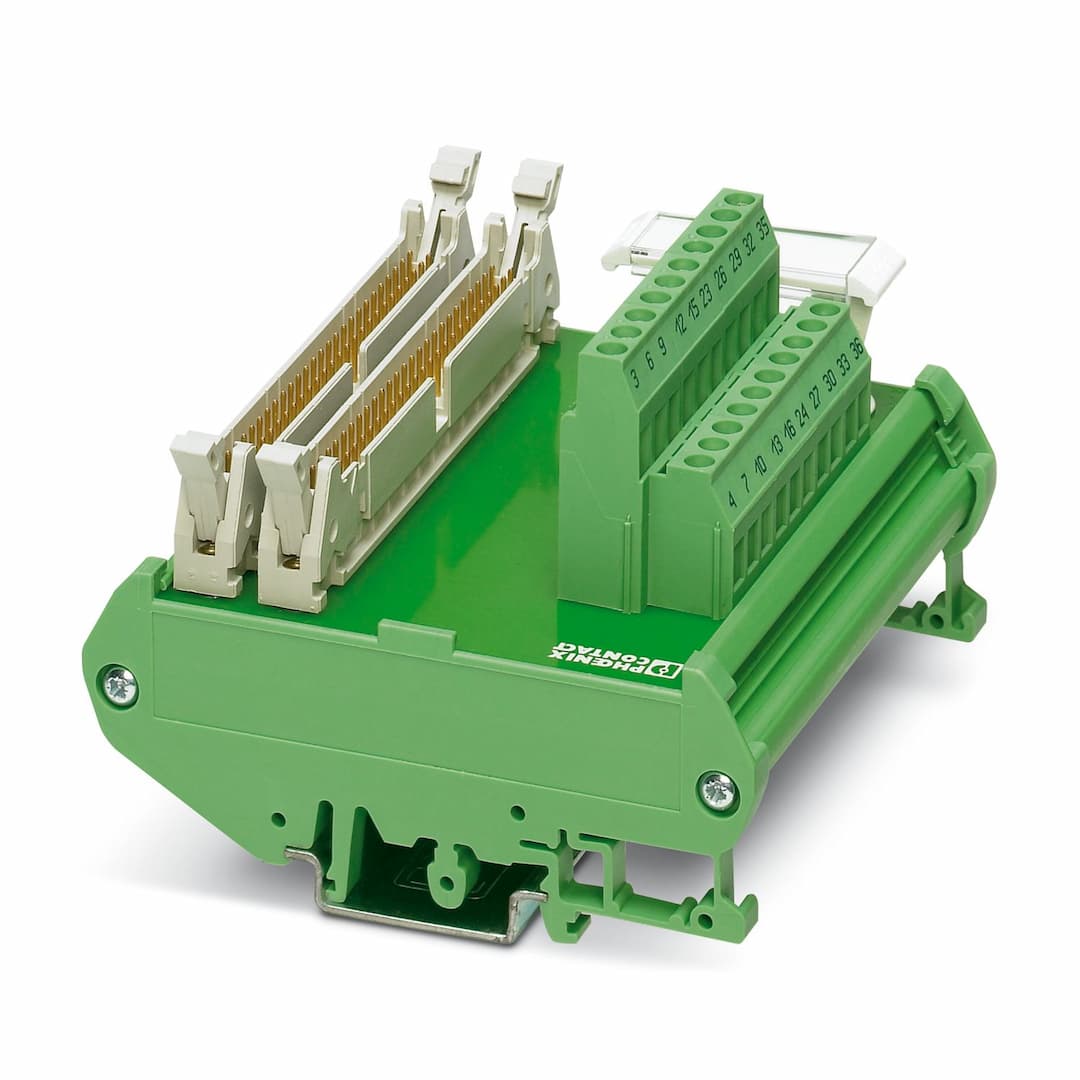

FLKM 50/DO326/S7-300
Product ID:17369
Updated: 2026/8/4
Key Features
- 1Comprehensive Compatibility: Compatible with SIMATIC S7-300 and ET 200 M controllers.
- 2Reliable Connectivity: Features two 50-position FLK connectors for secure field-level connections.
- 3Durable Design: Module width of 90 mm ensures compact integration in industrial settings.
- 4Versatile Conductors: Supports solid and stranded conductors from 0.2 mm² to 4 mm² (solid) and 0.2 mm² to 2.5 mm² (stranded).
- 5Environmentally Friendly: Compliant with REACh SVHC and China RoHS regulations for environmentally friendly use.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | No. of channels | 10 |
| Article revision | 03 | Max. permissible operating voltage | 25 V AC
60 V DC |
| Connection method | Screw connection | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Connection method | IDC/FLK pin strip | Number of connections | 2 |
| Number of positions | 50 | Pitch | 2.54 mm |
| Status display | no | Status display present | No |
| Width | 89.5 mm | Height | 89.6 mm |
| Depth | 65.9 mm | Mounting type | DIN rail mounting |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
