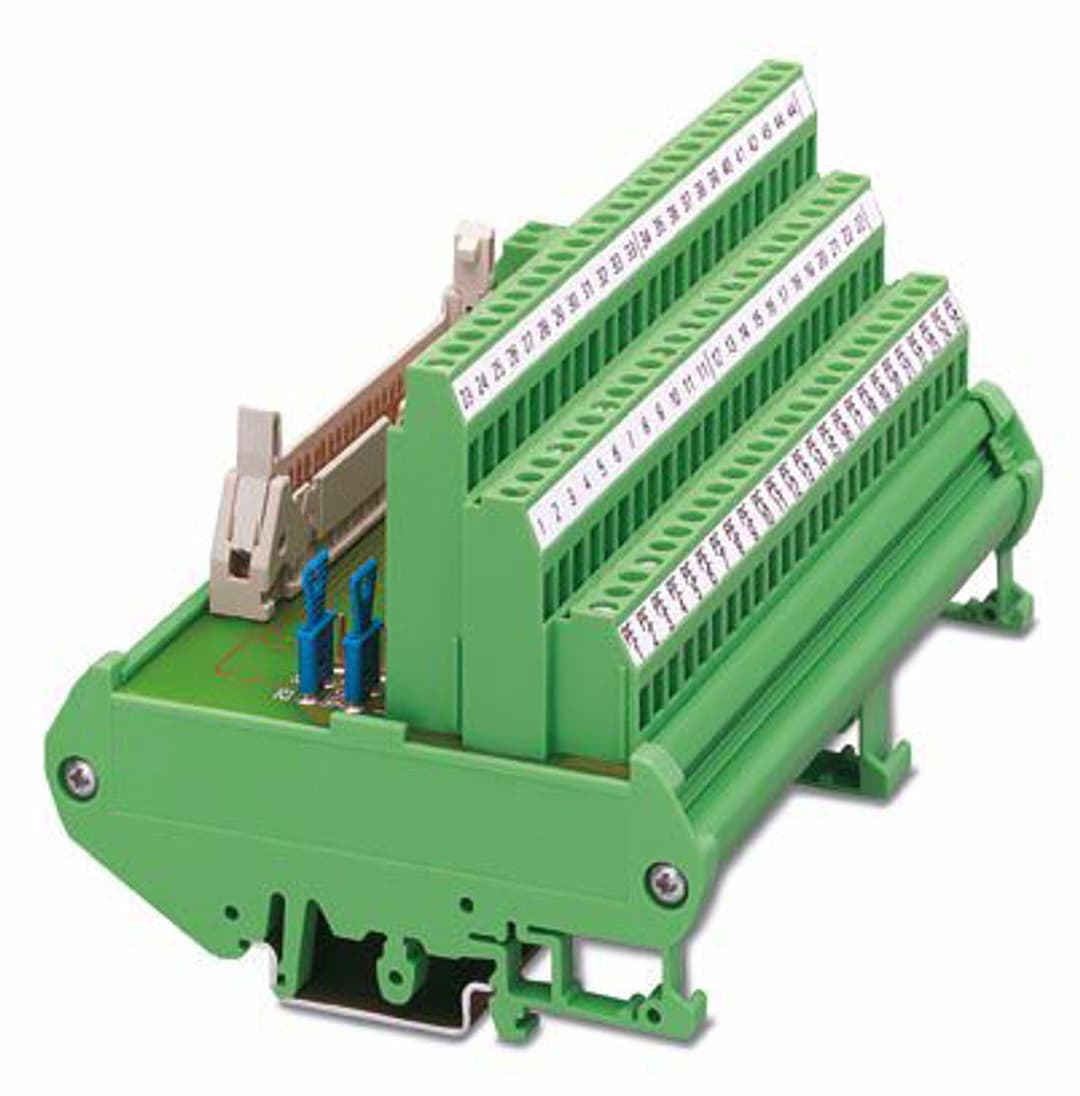

FLKM 50/MODI-A500

Product ID:22472

Updated: 2026/7/28

Key Features

1Connects to Schneider Electric MODICON A250, A350, and A500 series without isolation.
2Allows for potential separation and separate voltage supply for enhanced flexibility.
3Supports up to 32 channels in a single connection.
4Can be mounted in any position, offering versatility in installation.
5Meets IEC 60664, IEC 60664A, DIN VDE 0110, and DIN VDE 0160 standards for safety and reliability.

Need a quote? Enter your quantity and get pricing fast.

Qty

Detailed engineering parameters

Parameter	Value	Parameter	Value
Product type	Interface module	Product family	VARIOFACE
Number of positions	50	Overvoltage category	II
Pollution degree	2	Nominal voltage U	< 50 V AC 60 V DC
Max. current carrying capacity per branch	1 A	Max. total current of all branches	8 A
Connection in acc. with standard	IEC / EN	Connection method	Screw connection
Stripping length	8 mm	Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 4 mm²	Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12	Connection method	IDC/FLK pin strip
Number of connections	1	Number of positions	50
Pitch	2.54 mm	Status display	no
Status display present	No	Width	113 mm
Height	90 mm	Depth	81 mm
Color	green (RAL 6021)	Housing insulation material	Polyamide 6.6 green
Ambient temperature (operation)	-20 °C ... 50 °C	Ambient temperature (storage/transport)	-20 °C ... 70 °C
Standards/regulations	IEC 60664 IEC 60664A DIN VDE 0110 DIN VDE 0160 (in parts)	Mounting position	any
Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Specifications may be subject to change without notice
