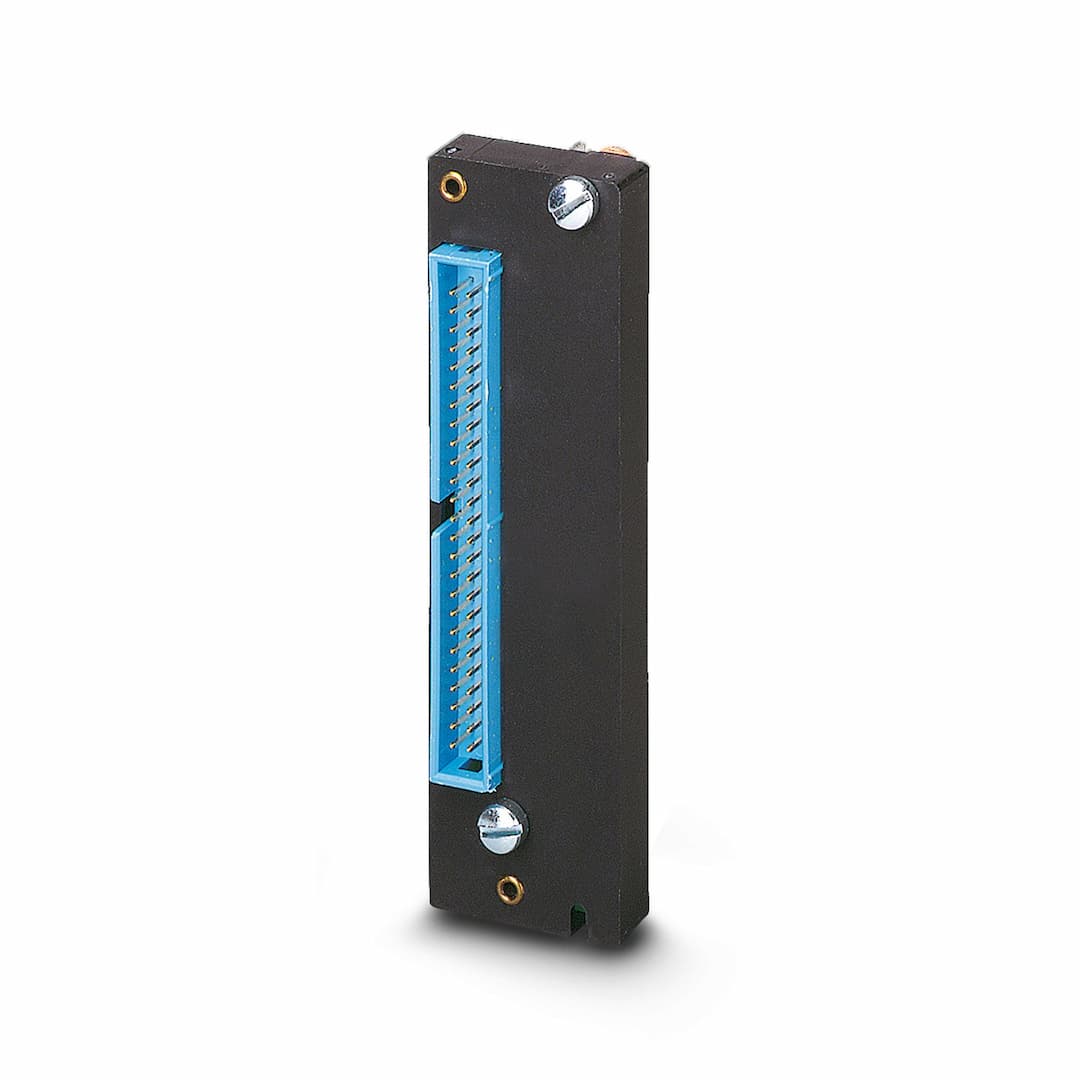

FLKM 50-PA-SLC500/OUT/2A
Product ID:19863
Updated: 2026/7/31
Key Features
- 1Connects up to 16 channels for Allen-Bradley SLC 500 systems.
- 2Compatible with 1746 OA16 and OW16 I/O cards.
- 3Operates within 0-50 V AC and 0-60 V DC voltage range.
- 4Supports up to 2 A per path and 7 A total current per byte.
- 5Meets IEC 60664, DIN EN 50178, and IEC 62103 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Front adapter | Insulation | Functional insulation |
| Overvoltage category | II | Pollution degree | 2 |
| Operating voltage (AC) | ≤ 25 V AC | Operating voltage (DC) | ≤ 60 V DC |
| Current (Per path) | ≤ 2 A | Current (Total current per byte) | ≤ 7 A (Feed-in via connector) |
| Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV |
| Suitable I/O card | 1746 OA16
1746 OW16 | Connection method | IDC/FLK pin strip |
| Number of connections | 1 | Number of positions | 50 |
| Pitch | 2.54 mm | Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | IEC 60664
DIN EN 50178 | Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
