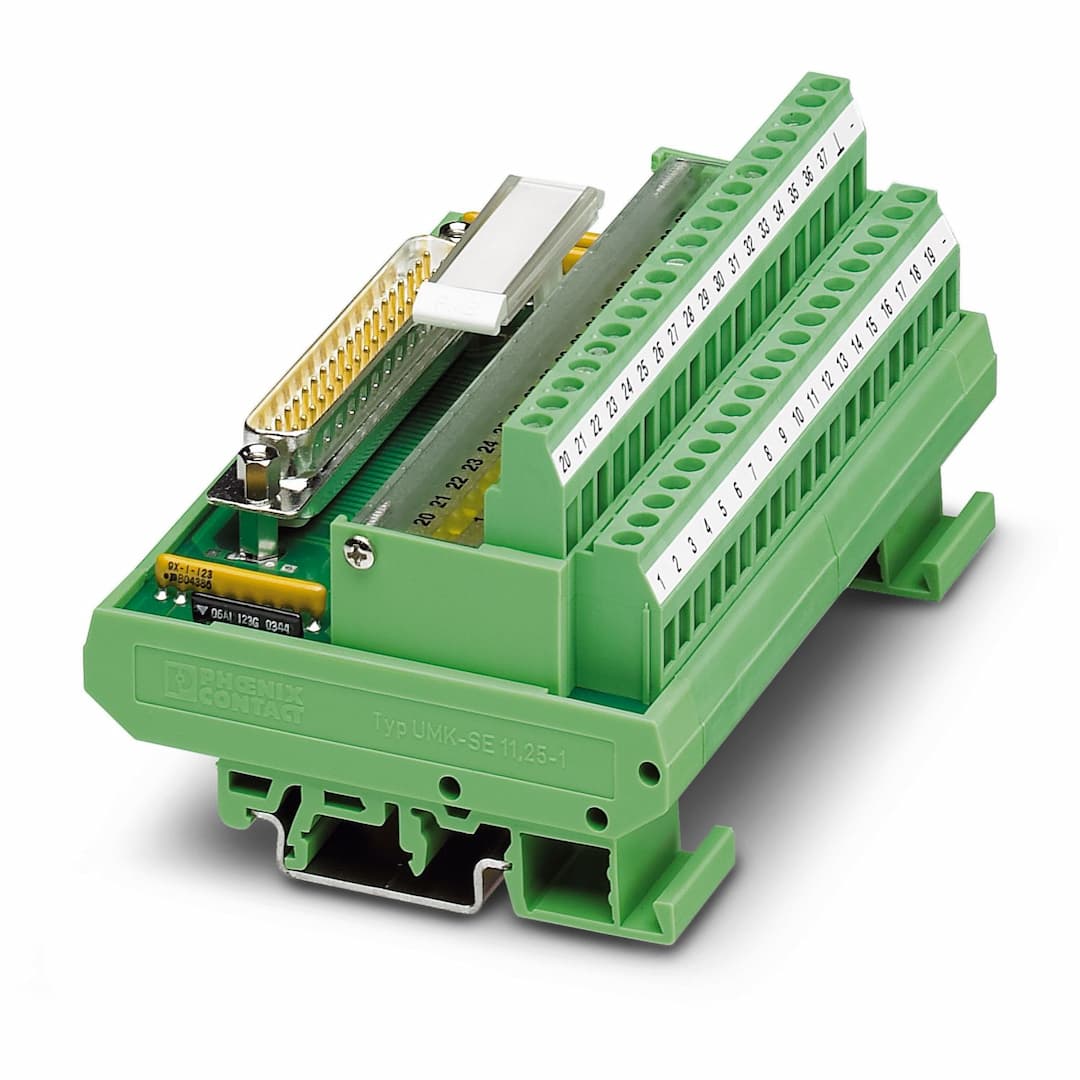

FLKM-D37 SUB/S/LA
Product ID:22517
Updated: 2026/7/13
Key Features
- 1Robust Connectivity: The FLKM-D37 SUB/S/LA interface module offers a reliable screw connection and D-Subminiature pin strip for secure data transfer.
- 2Versatile Mounting: Designed for mounting on NS 35/7.5 or NS 32, providing flexibility in various industrial settings.
- 3High-Performance: Supports up to 37 positions, ensuring high-performance data transfer in demanding applications.
- 4Light Indicator: Equipped with a light indicator for easy status monitoring, enhancing operational efficiency.
- 5Compliance and Safety: Meets IEC 60664 and DIN EN 50178 standards, ensuring compliance and safety in electrical environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | Product family | VARIOFACE |
| Number of positions | 37 | Insulation | Functional insulation |
| Overvoltage category | II | Pollution degree | 2 |
| Nominal voltage U | 30 V DC | Max. current carrying capacity per branch | 2.5 A |
| Rated insulation voltage | 50 V | Rated surge voltage | 0.5 kV |
| Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 | Connection method | D-SUB pin strip |
| Number of positions | 37 | Status display | LED |
| Status display present | Yes | Width | 112.5 mm |
| Height | 58.5 mm | Depth | 77 mm |
| Color | green (RAL 6021) | Housing insulation material | Polyamide 6 green |
| Degree of protection | IP00 | Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | IEC 60664
DIN EN 50178 |
| Mounting type | DIN rail mounting | Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
