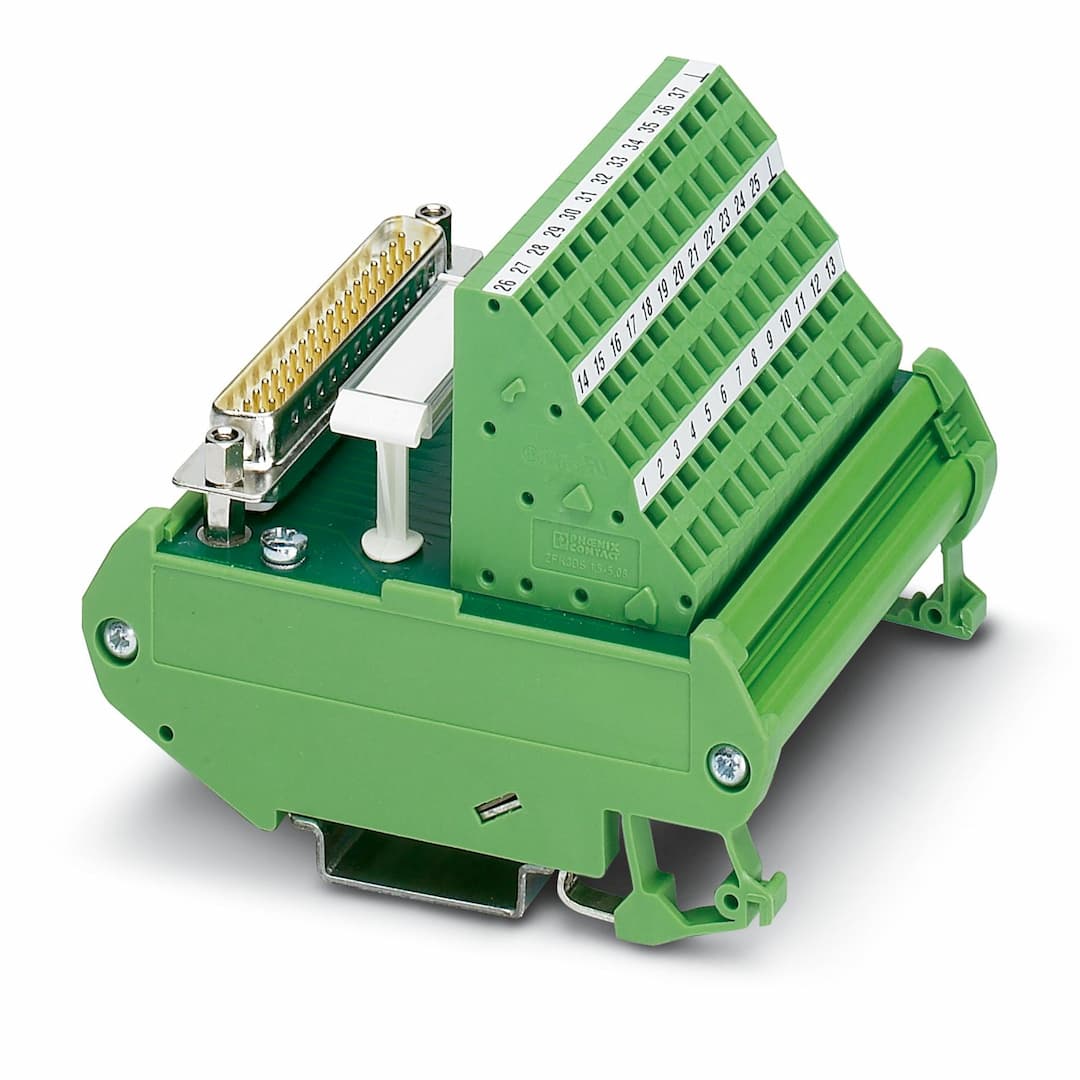

FLKMS-D37 SUB/S/ZFK3DS/PE
Product ID:17252
Updated: 2026/8/5
Key Features
- 1Equipped with cutting-edge technology for enhanced functionality.
- 2Delivers exceptional results in demanding applications.
- 3Built to last with high-quality materials and robust construction.
- 4Simple and straightforward installation process for quick setup.
- 5Optimized for maximum efficiency and reliability in various environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | Number of positions | 37 |
| Insulation | Functional insulation | Overvoltage category | II |
| Pollution degree | 2 | Operating voltage (AC) | ≤ 30 V AC |
| Operating voltage (DC) | ≤ 60 V DC | Current (per branch) | ≤ 2.5 A |
| Rated insulation voltage | 125 V | Rated surge voltage | 1.2 kV (1.2/50 μs) |
| Connection in acc. with standard | IEC 60807-2 | Connection method | D-SUB pin strip |
| Screw thread | UNC 4-40 | Number of connections | 1 |
| Number of positions | 37 | Insertion/withdrawal cycles | > 500 |
| Pitch | 2.77 mm | Connection method | Spring-cage connection |
| Stripping length | 7.5 mm | Number of positions | 39 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 1.5 mm²
0.2 mm² ... 1.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve) |
| Conductor cross section flexible (2 conductors with same cross section) | 0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) | Conductor cross section AWG | 24 ... 14 |
| Pitch | 5.08 mm | Status display present | No |
| Width | 79 mm | Height | 90 mm |
| Depth | 73 mm | Color | green (RAL 6021) |
| Housing insulation material | PVC | Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 | Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | ≤ 2000 m |
| Standards/regulations | EN IEC 60664-1 | Mounting type | DIN rail mounting |
| Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
