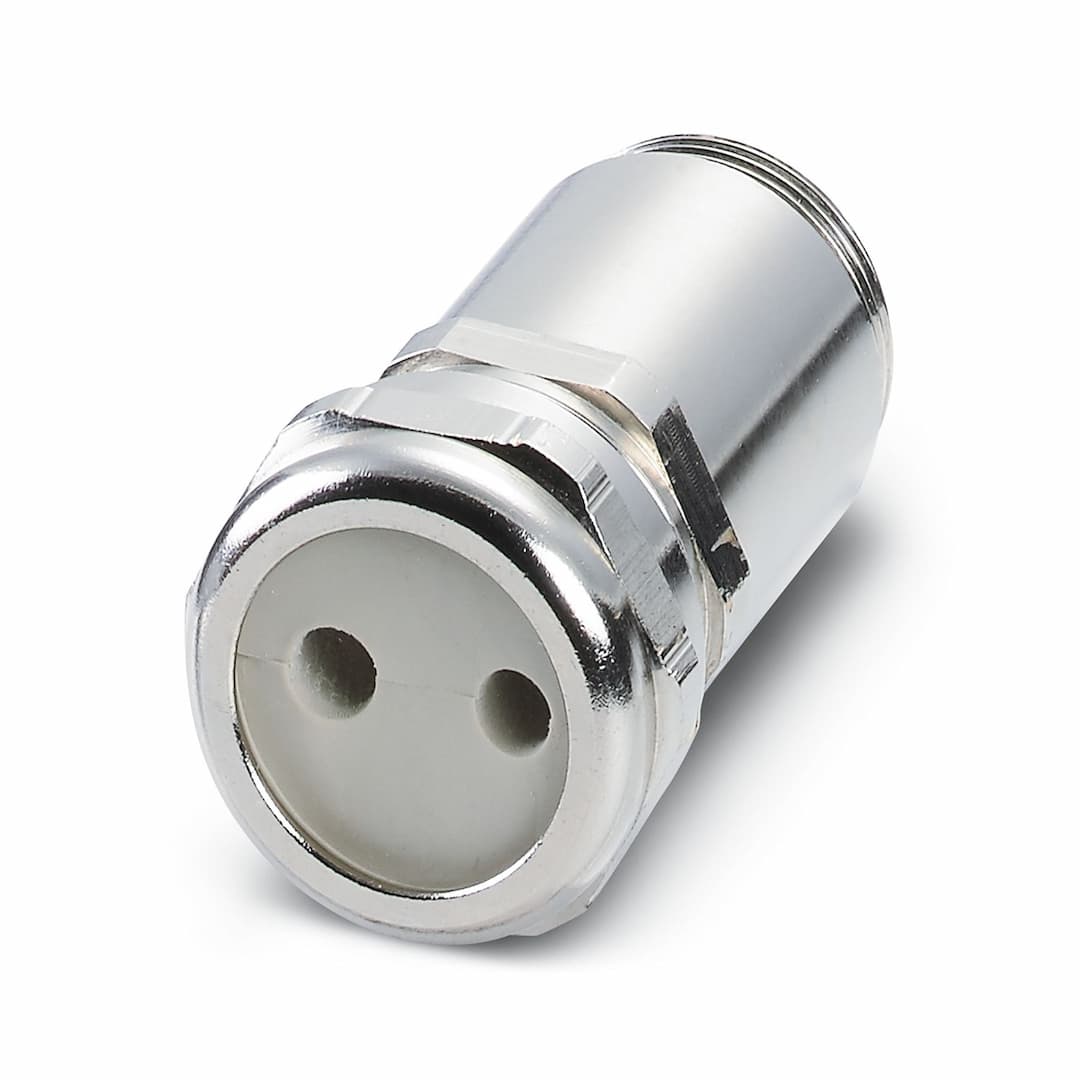

FL M32 ADAPTER
Product ID:17187
Updated: 2026/4/3
Key Features
- 1Optional cable feed-through for sealing (IP67) the FL-WLAN 110x connection (IP20).
- 2Not needed when mounting on a control cabinet, but essential for direct integration onto closed housing.
- 3Provides IP67 sealing, ensuring protection against dust and water.
- 4Designed for FL-WLAN 1100 series devices, enhancing connectivity and reliability.
- 5Built to withstand industrial environments, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Adapter |
| Application | Feed-through
Cable gland | Height | 69.1 mm |
| Diameter | 43.5 mm | Note on dimensions | Maximum dimensions, see figure |
| Housing material | Nickel-plated brass | Ambient temperature (operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 60 °C |
Specifications may be subject to change without notice
