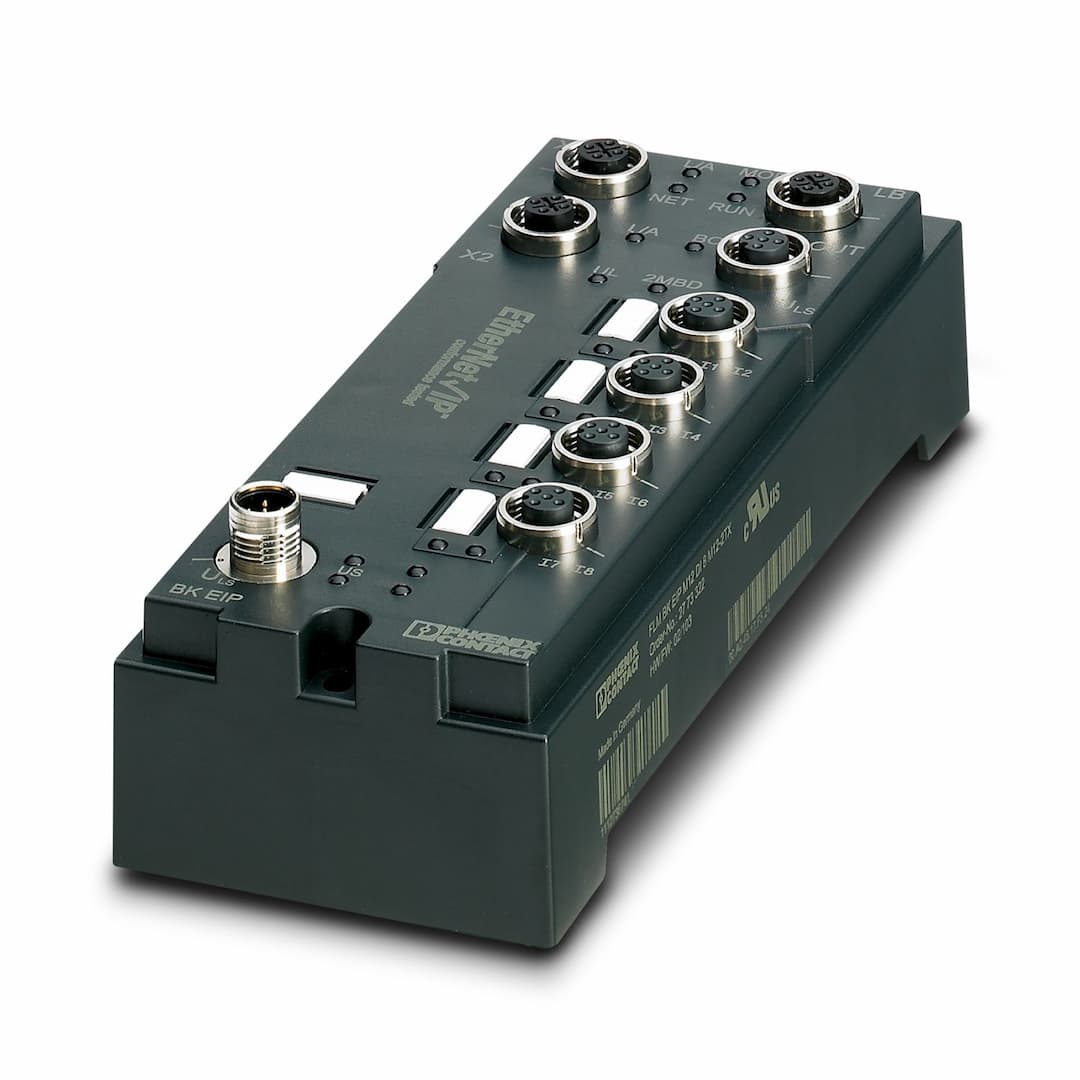

FLM BK EIP M12 DI 8 M12-2TX
Product ID:17396
Updated: 2026/4/3
Key Features
- 1Supports 10/100 Mbps auto negotiation and auto crossover for efficient data transfer.
- 2Equipped with 8 digital inputs, compatible with 24 V DC.
- 3M12 connection technology with SPEEDCON fast locking system ensures reliable connections.
- 4Includes channel-specific diagnostics for enhanced system monitoring.
- 5Features short-circuit and overload protection, ensuring safe operation in various environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 70 mm | Height | 178 mm |
| Depth | 50 mm | Drill hole spacing | 178 mm |
| Color | anthracite | Connection method | M12 connectors, D-coded |
| Designation connection point | Copper cable | Number of positions | 4 |
| Transmission speed | 10/100 Mbps (auto negotiation) | Designation | Local bus gateway |
| Connection method | M12 connector, B-coded | Transmission speed | 500 kbaud/2 Mbaud, can be selected |
| Max. length of local bus | 20 m | Max. number of local bus devices | 16 |
| Number of local bus devices that can be connected | max. 16 | Number of devices with parameter channel | max. 16 |
| Process data channel | 8 bit | Input address area | 8 bit |
| Output address area | 0 bit | Register length | 8 bit |
| Input name | Digital inputs | Description of the input | IEC 61131-2 type 1 |
| Number of inputs | 8 | Connection method | M12 connector |
| Connection technology | 2-, 3-, 4-conductor | Input voltage | 24 V DC |
| Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 13 V DC ... 30 V DC |
| Nominal input voltage U | 24 V DC | Filter time | 3 ms |
| Protective circuit | Short-circuit protection, overload protection of the sensor supply; Reverse polarity protection | Product type | I/O component |
| Product family | Fieldline | Type | modular |
| No. of channels | 8 | Article revision | 15 |
| Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
| Current consumption from U | max. 118 mA (At 2 Mbaud)
typ. 118 mA (At 2 Mbaud)
max. 60 mA (At 500 kBaud)
typ. 60 mA (At 500 kBaud) | Voltage supply U | 24 V DC |
| Power supply at U | max. 4 A | Current consumption from U | typ. 5 mA (plus power supply for sensors)
max. 600 mA |
| Connection method | M12 connector | Designation | U |
| Supply voltage | 24 V DC | Supply voltage range | 18 V DC ... 30 V DC (including ripple) |
| Supply current | < 100 mA | Test voltage: To I/O | 500 V DC |
| Connection method | M12 connector | Ambient temperature (operation) | -25 °C ... 60 °C |
| Degree of protection | IP65/IP67 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (storage/transport) | 95 % | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | Wall mounting, optionally on mounting panel
Wall mounting |
Specifications may be subject to change without notice
