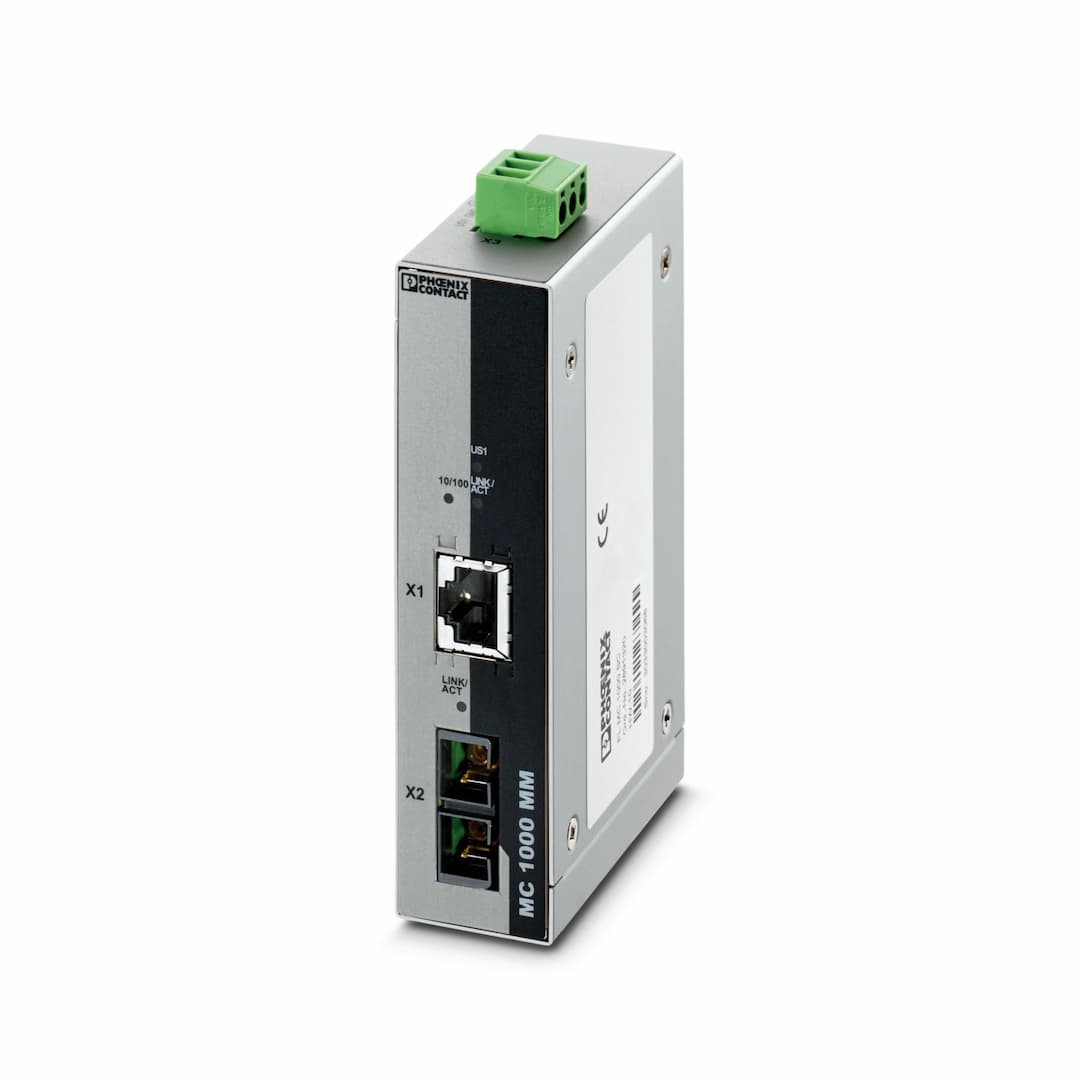

FL MC 1000 SC
Product ID:21276
Updated: 2026/4/3
Key Features
- 1Converts 100Base-TX to multi-mode fiberglass with SC duplex fiber optic connection.
- 2Auto MDI/MDI-X switch-over for easy connection monitoring.
- 3Comprehensive link diagnostics for reliable network performance.
- 4DIN rail mountable for compact and efficient installation.
- 5Supports data transfer rates of 100 Mbps with low latency (±1.3 µs).
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Media converter |
| MTTF | 95.85 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) | Signal delay | ± 1.3 µs (Store and Forward mode, 10/100 Mbps, depending on the frame size) |
| Article revision | 05 | Electrical isolation | VCC // FE // Ethernet |
| Test voltage data interface/power supply | 1500 V AC (500 V AC, 1 minute) | Supply voltage range | 12 V DC ... 48 V DC |
| Nominal supply voltage | 24 V DC | Typical current consumption | 73 mA (24 V DC) |
| Connection method | Plug-in/screw connection via COMBICON | Conductor cross section, flexible | 0.20 mm² ... 2.50 mm² |
| Conductor cross section, rigid | 0.20 mm² ... 2.50 mm² | Conductor cross section, flexible [AWG] | 24 ... 12 |
| Conductor cross section AWG | 24 ... 12 | Tightening torque | 5 Nm ... 7 Nm |
| Signal | Ethernet | Transmit capacity, minimum | -19 dBm |
| Transmit capacity, maximum | -14 dBm | Transmission length incl. 3 dB system reserve | 8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600)
9.6 km (fiberglass with F-G 50/125 0.7 dB/km F1200)
5.3 km (fiberglass with F-G 50/125 1.6 dB/km F800) |
| Connection method | SC duplex | Wavelength | 1310 nm |
| Minimum receiver sensitivity | -34 dBm | Maximum receiver sensitivity | -14 dBm |
| Transmission medium | Multi-mode fiberglass
GI-HCS fiber | Serial transmission speed | 10/100 Mbps |
| Connection method | RJ45 jack, shielded | No. of channels | 1 |
| Transmission length | 100 m (twisted pair, shielded) | Transmission medium | Copper |
| Signal LEDs | LNK/ACT, 100 | Auto-negotiation modes | Auto |
| Link through | Link fault pass through | MDI-/MDI-X switchover | Auto-MDI(X) |
| Width | 28 mm | Height | 110 mm |
| Depth | 70 mm | Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 60 °C | Ambient temperature (storage/transport) | 0 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Conformance | CE-compliant |
| UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Mounting type | DIN rail: 35 mm | Mounting position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Specifications may be subject to change without notice
