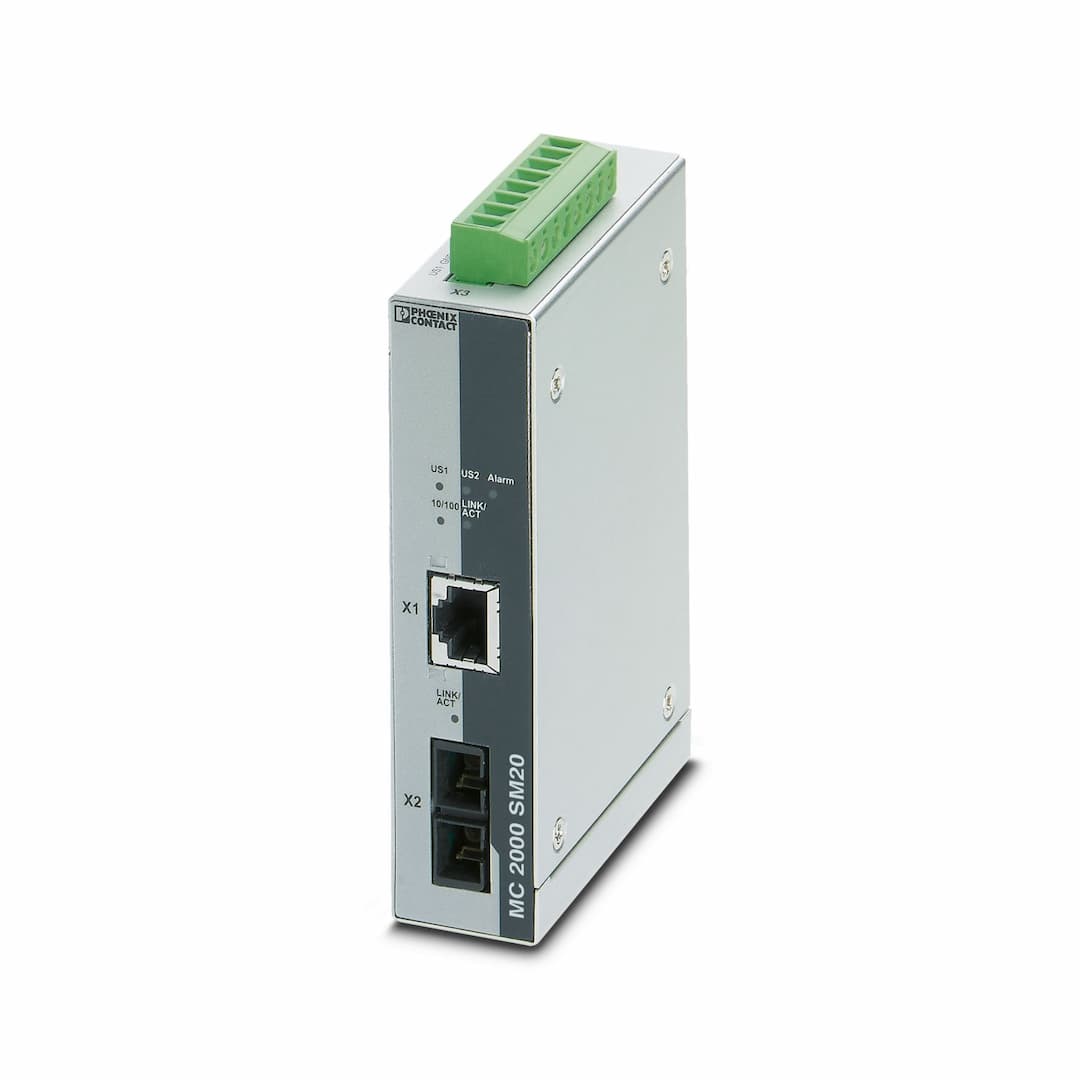

FL MC 2000T SM20 SC
Product ID:18182
Updated: 2026/7/12
Key Features
- 1Converts 100Base-TX to single mode fiber with a 20 km transmission length.
- 2Equipped with an auto MDI(X) function for seamless network setup.
- 3DIN rail mountable for easy installation in industrial settings.
- 4Comprehensive link diagnostics for enhanced network reliability.
- 5Operates within a wide temperature range (-40°C to 75°C).
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Media converter |
| MTTF | 77.82 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) | Signal delay | 865 ns (Pass-through mode)
835 ns (Auto converter mode, 100 Mbps, static) |
| Article revision | 05 | Electrical isolation | VCC // FE // Ethernet |
| Maximum power dissipation for nominal condition | 1.922 W | Test voltage data interface/power supply | 1500 V AC (500 V AC, 1 minute) |
| Supply voltage range | 12 V DC ... 48 V DC | Nominal supply voltage | 24 V DC |
| Typical current consumption | 110 mA (24 V DC) | Output name | Relay output |
| Output description | Alarm output | Number of outputs | 1 |
| Contact switching type | N/C contact | Maximum switching voltage | 24 V DC |
| Max. switching current | 100 mA | Connection method | Plug-in screw terminal block (COMBICON), redundancy possible |
| Signal | Ethernet | Transmit capacity, minimum | -15 dBm |
| Transmit capacity, maximum | -8 dBm | Transmission length incl. 3 dB system reserve | 20 km (fiberglass with F-G 9/125 0.36 dB/km) |
| Connection method | SC duplex | Wavelength | 1310 nm |
| Minimum receiver sensitivity | -34 dBm | Maximum receiver sensitivity | 0 dBm |
| Transmission medium | Single-mode fiberglass | Data rate | 10/100 Mbps |
| Serial transmission speed | 10/100 Mbps | Connection method | RJ45 jack, shielded |
| No. of channels | 1 | Transmission length | 100 m (twisted pair, shielded) |
| Transmission medium | Copper | Signal LEDs | LNK/ACT, 100 |
| Auto-negotiation modes | Auto | Link through | Link fault pass through |
| MDI-/MDI-X switchover | Auto-MDI(X) | Width | 28 mm |
| Height | 110 mm | Depth | 70 mm |
| Housing material | Aluminum | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | 4850 m | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Shock | 300 m/s², 11 ms (IEC 60068-2) |
| Air pressure (operation) | 66 kPa ... 108 kPa | Air pressure (storage/transport) | 66 kPa ... 108 kPa |
| Conformance | CE-compliant | UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Standards/regulations | EN 61000-4-2 |
| Comments | Criterion B | Standards/regulations | EN 61000-4-3 |
| Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
| Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
| Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
| Comments | Criterion A | Standards/regulations | EN 55032 |
| Mounting type | DIN rail mounting | Mounting position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Specifications may be subject to change without notice
