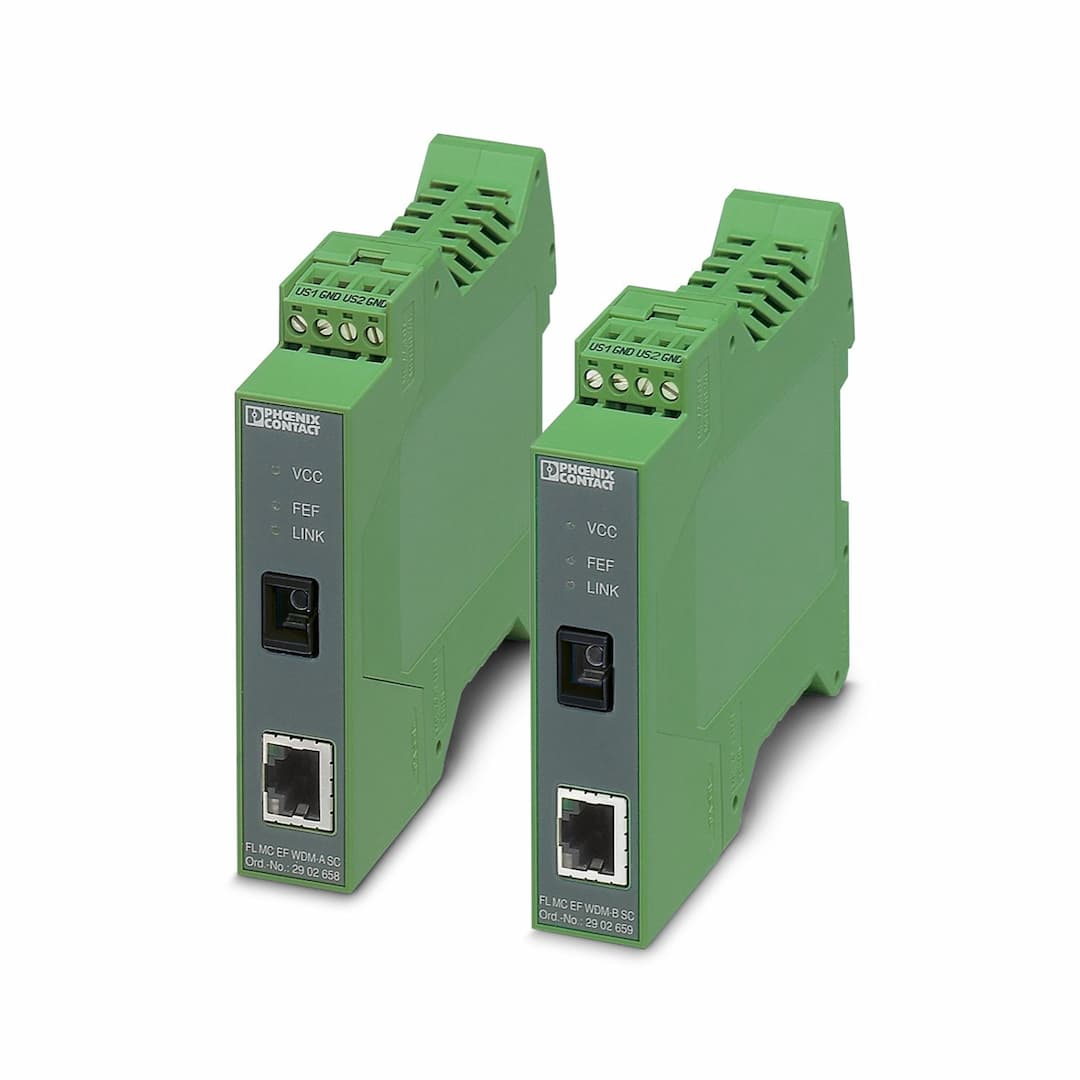

FL MC EF WDM-SET SC
Product ID:20822
Updated: 2026/7/12
Key Features
- 1Full duplex transmission with a single optical fiber.
- 2Auto negotiation and auto MDI/MDI-X switch-over for seamless connectivity.
- 3Link fault pass-through (LFPT) and far-end fault (FEF) functions for easy connection monitoring.
- 4SC-Simplex connection with wavelengths 1310 nm and 1550 nm.
- 5Mountable on EN DIN rails with extended temperature range (-40°C to +65°C).
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| CCCex note | Use in potentially explosive areas is not permitted in China. | Product type | Media converter |
| Signal | Ethernet | Transmission length incl. 3 dB system reserve | 38 km (F-E 9/125 0.36 dB/km)
34 km (F-E 9/125 0.4 dB/km)
28 km (F-E 9/125 0.5 dB/km)
21 km (F-G 62.5/125 0.7 dB/km F 1000)
5.5 km (F-G 62.5/125 2.6 dB/km F 600)
21 km (F-G 50/125 0.7 dB/km F 1200)
9 km (F-G 50/125 1.6 dB/km F 800) |
| Connection method | SC simplex | Wavelength | 1550 nm
1310 nm |
| Transmission medium | Multi-mode fiberglass
Single-mode fiberglass | Transmission medium | Copper |
| Color (Housing) | green (RAL 6021) | Ambient temperature (operation) | -40 °C ... 65 °C |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
≤ 2000 m (in acc. with UL) | Identification | ISA-S71.04-1985 G3 Harsh Group A |
| Identification | DNV GL | Temperature | B |
| Humidity | A | Vibration | A |
| EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
