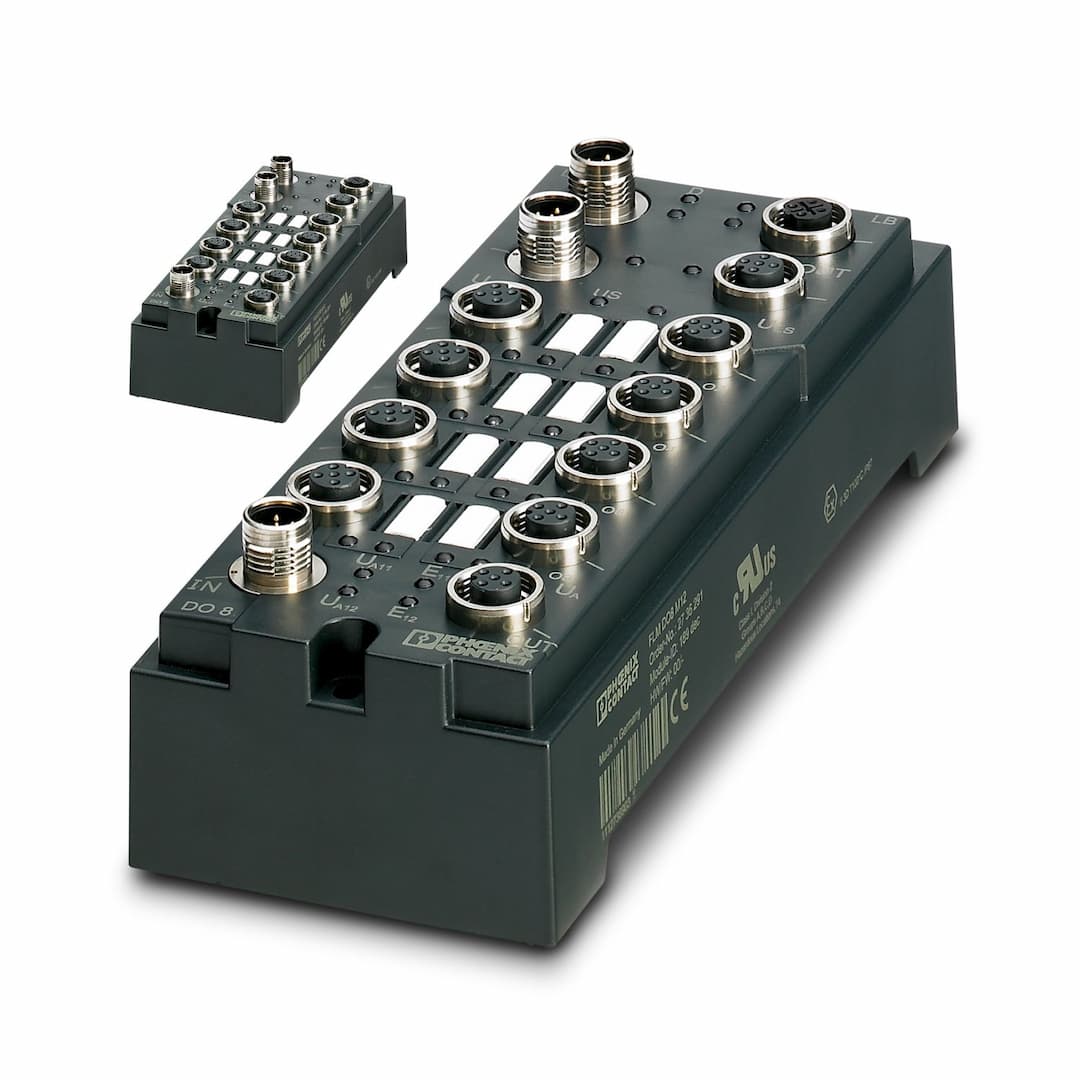

FLM DO 8 M12
Product ID:18418
Updated: 2026/4/5
Key Features
- 18 Digital Outputs of 500 mA Each
- 2500 kbaud/2 Mbaud Selection for Flexibility
- 3Channel-Specific Diagnostics for Real-Time Monitoring
- 4Short-Circuit and Overload Protection for Safety
- 5M12 Fast Connection Technology for Efficient Installation
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 70 mm | Height | 178 mm |
| Depth | 50 mm | Drill hole spacing | 168 mm |
| Connection method | M12 connector, B-coded | Designation connection point | Copper cable |
| Number of positions | 5 | Transmission speed | 500 kbps / 2 Mbps (can be switched) |
| ID code (dec.) | 189 | ID code (hex) | BD |
| Length code (hex) | 81 | Process data channel | 1 Byte |
| Input address area | 0 Byte | Output address area | 1 Byte |
| Register length | 1 Byte | Required parameter data | 3 Byte |
| Required configuration data | 4 Byte | Output name | Digital outputs |
| Connection method | M12 connector | Connection technology | 2-, 3-conductor |
| Number of outputs | 8 | Protective circuit | Short-circuit protection |
| Output voltage | 24 V DC | Maximum output current per channel | 500 mA |
| Product type | I/O component | Product family | Fieldline |
| Type | modular | No. of channels | 8 |
| Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
| Current consumption from U | max. 50 mA (At 2 Mbaud)
typ. 45 mA (At 2 Mbaud)
max. 50 mA (At 500 kBaud)
typ. 40 mA (At 500 kBaud) | Voltage supply U | 24 V DC |
| Power supply at U | max. 4 A | Current consumption from U | typ. 5 mA (plus power supply for sensors)
max. 600 mA |
| Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
| Current consumption at U | typ. 3 mA
max. 2 A | Voltage supply U | 24 V DC |
| Power supply at U | max. 4 A | Current consumption at U | typ. 3 mA
max. 2 A |
| Connection method | M12 connector | Designation | U |
| Supply voltage | 24 V DC | Supply voltage range | 18 V DC ... 30 V DC (including ripple) |
| Test voltage: To I/O | 500 V AC | Connection method | M12 connector |
| Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP65/IP67 |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (storage/transport) | 95 % |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting |
