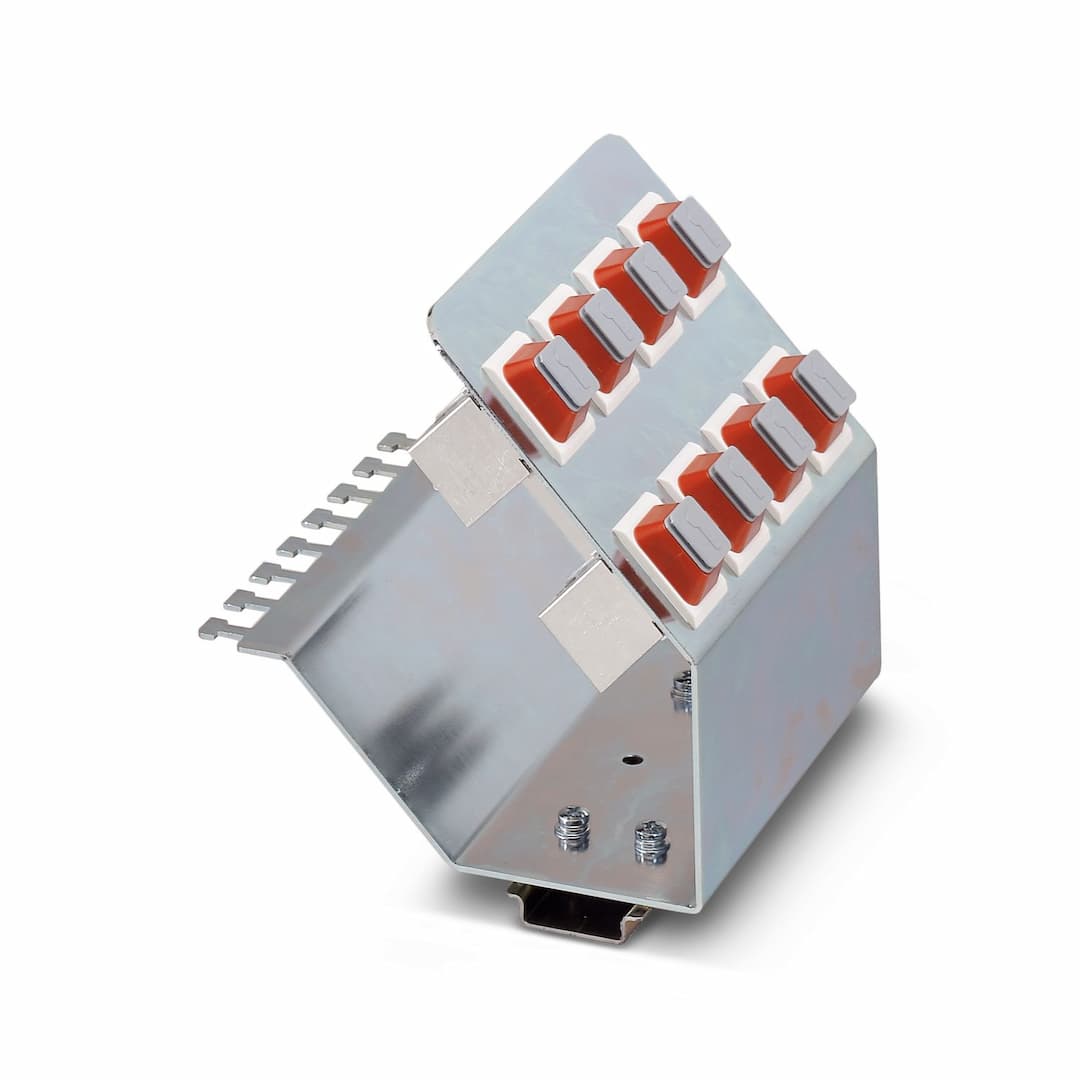

FL PF SEC 8TX
Product ID:17794
Updated: 2026/8/4
Key Features
- 1The FL PF SEC 8TX patch panel includes Layer 1 security elements to prevent unauthorized access and disconnection of patch cables.
- 2Constructed with robust metal housing, ensuring long-lasting performance in industrial environments.
- 3Pre-assembled patch cables simplify the connection process, and the patch field can be latched onto a DIN rail or mounted directly onto a panel.
- 4Meets international standards for industrial environments, ensuring full compatibility with passive coupling points.
- 5Can be mounted perpendicular to a standard mounting rail, providing flexibility in installation configurations.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Patch panel | Rated voltage (III/3) | 50 V |
| Rated surge voltage | ≥ 1 kV | Rated current | 1 A |
| Connection method | IDC | Connection method | RJ45 CAT5e |
| No. of channels | 8 | Width | 124 mm |
| Height | 135 mm | Depth | 140 mm |
| Material Housing | Metal | Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Conformance with EMC directives | ISO/IEC 11801, EN 50173, TIA/EIA 568B and IEC 60603–7 |
Specifications may be subject to change without notice
