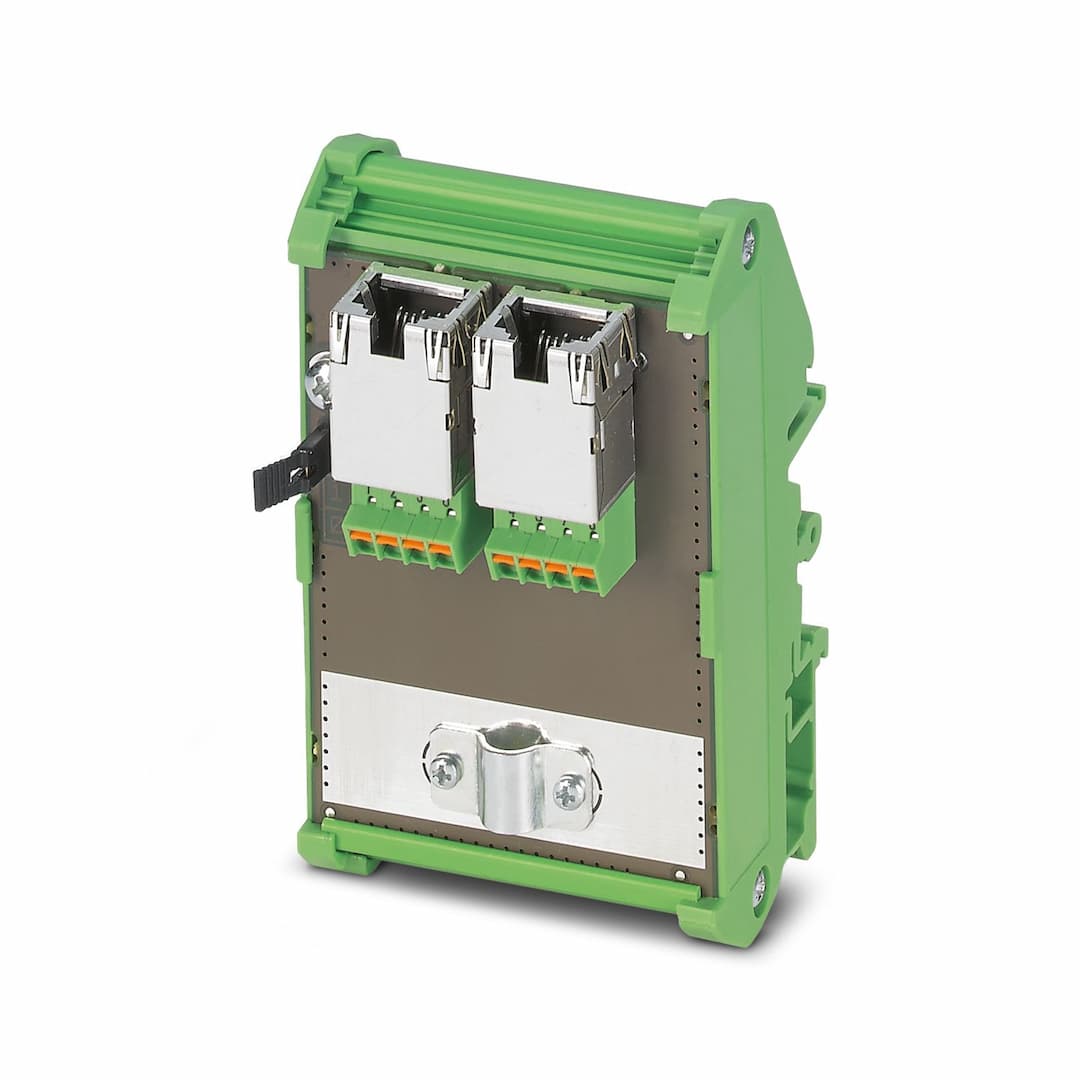

FL-PP-RJ45-SCC/SC045
Product ID:23399
Updated: 2026/7/12
Key Features
- No key features available for this product.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Patch panel |
| Article revision | 03 | Insulation | Basic insulation |
| Overvoltage category | II | Pollution degree | 2 |
| Rated insulation voltage | 50 V | Rated surge voltage | 0.5 kV |
| Serial transmission speed | 10/100 Mbps | Connection method | Spring-cage connection |
| No. of channels | 1 | Pin assignment | 1, 2, 3, 6
4, 5, 7, 8 |
| Transmission length | 100 m (including patch cables) | Single conductor/terminal point, rigid | 0.2 mm² ... 1.5 mm² |
| Single-wire/terminal point, flexible | 0.2 mm² ... 1 mm² | Single-wire/terminal point, rigid AWG max. | 16 |
| Single-wire/terminal point, rigid AWG min. | 24 | Connection method | RJ45 CAT5e |
| No. of channels | 1 | Pin assignment | 1, 2, 3, 6
1, 2, 3, 6 |
| Width | 56 mm | Height | 90 mm |
| Depth | 51 mm | Color (Housing) | green (RAL 6021) |
| External cable diameter | 6 mm ... 10 mm | Cable impedance | 100 Ω |
| Insertion/withdrawal cycles | ≤ 200 | Degree of protection | IP20 |
| Ambient temperature (operation) | -10 °C ... 50 °C | Identification | ISA-S71.04-1985 G3 Harsh Group A |
| Standards/regulations | DIN EN 50178 | Mounting type | DIN rail mounting |
| Mounting position | any |
Specifications may be subject to change without notice
