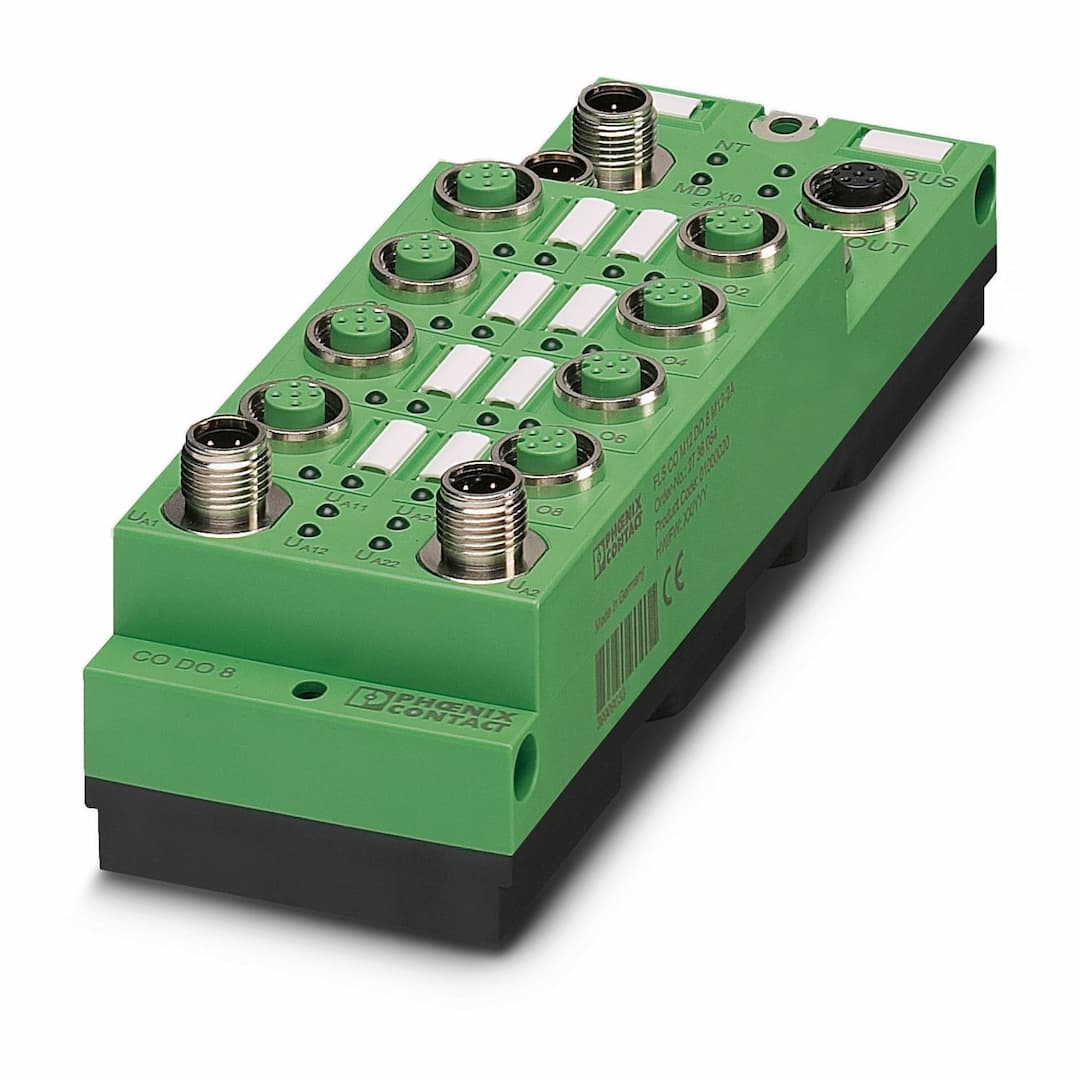

FLS CO M12 DO 8 M12-2A
Product ID:22898
Updated: 2026/7/27
Key Features
- 18 Digital Outputs with 2 A Load Capacity: Ideal for high-current applications.
- 2Fast M12 Connection Technology: Ensures quick and reliable connections.
- 324 V DC Supply Protection: Safeguards against short circuits and overloads.
- 4CANopen Compatibility: Designed for seamless integration in CANopen networks.
- 5Compact Design: Suitable for space-constrained environments with dimensions of 60 mm x 178 mm x 49.3 mm.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 60 mm | Height | 178 mm |
| Depth | 49.3 mm | Drill hole spacing | 168 mm |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Connection method | 2 M12 connectors, A-coded |
| Number of positions | 5 | Transmission speed | 10, 20, 50, 125, 250, 500, 1000 kBit/s (Automatic baud rate detection) |
| Transmission physics | Copper cable with optional power supply in acc. with CAN standard | Address area assignment | 1 ... 126, adjustable |
| Number of local bus devices that can be connected | 0 | Number of devices with parameter channel | 0 |
| Input address area | 4 bit | Output address area | 0 bit |
| Register length | 8 bit | Output name | Digital outputs |
| Connection method | M12 connector | Connection technology | 2-, 3-conductor |
| Number of outputs | 8 | Protective circuit | Short-circuit protection |
| Output voltage | 24 V DC | Maximum output current per channel | 2 A |
| Product type | I/O component | Product family | Fieldline |
| Type | Block design | No. of channels | 8 |
| Voltage supply U | 24 V DC | Power supply at U | 4 A |
| Current consumption from U | typ. 80 mA
max. 100 mA | Voltage supply U | 24 V DC |
| Power supply at U | max. 4 A | Current consumption from U | typ. 3.5 mA
max. 700 mA |
| Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
| Current consumption at U | typ. 12 mA (plus actuator current)
max. 4 A | Voltage supply U | 24 V DC |
| Power supply at U | max. 4 A | Current consumption at U | typ. 12 mA (plus actuator current)
max. 4 A |
| Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
| Current consumption at U | typ. 12 mA (plus actuator current)
max. 4 A | Voltage supply U | 24 V DC |
| Power supply at U | max. 4 A | Current consumption at U | typ. 12 mA (plus actuator current)
max. 4 A |
| Connection method | M12 connector (A-coded) | Designation | U |
| Supply voltage | 24 V DC | Supply voltage range | 18 V DC ... 30 V DC (including ripple) |
| Test voltage: 24 V supply (bus logics) / Digital outputs (actuator supply) | 500 V AC, 50 Hz, 1 min | Test voltage: FE / Digital outputs (actuator supply) | 500 V AC, 50 Hz, 1 min |
| Connection method | M12 connector | Ambient temperature (operation) | -25 °C ... 60 °C |
| Degree of protection | IP65/IP67 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (storage/transport) | 95 % | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | Wall mounting |
Specifications may be subject to change without notice
