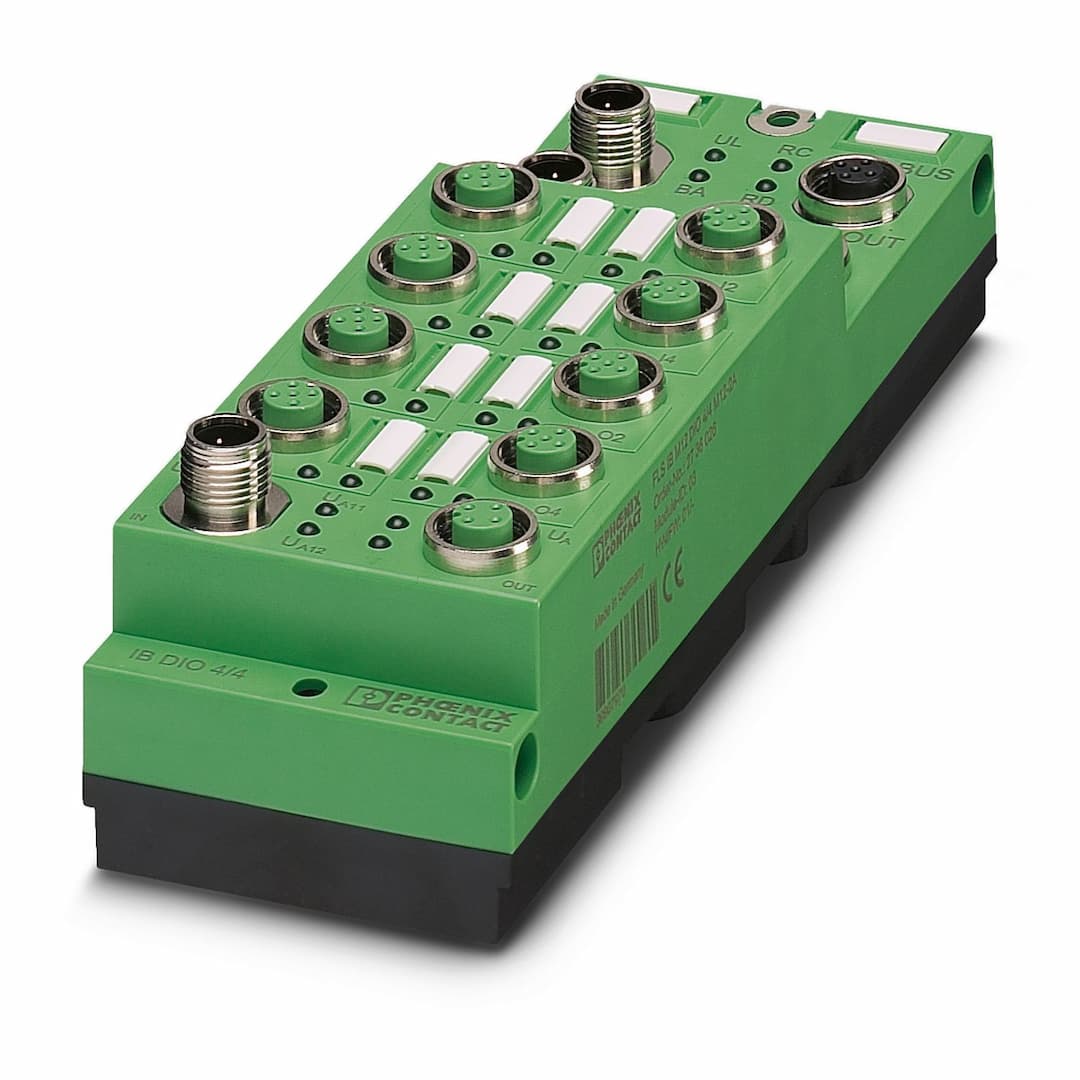

FLS IB M12 DIO 4/4 M12-2A
Product ID:22540
Updated: 2026/4/5
Key Features
- 1Robust Connectivity: Equipped with fast M12 connections for efficient data transfer.
- 2High-Reliability Outputs: 4 digital outputs with a load capacity of 2 A each.
- 3Protected Supply: 24 V DC supply protected against short circuit and overload.
- 4Flexible Mounting: Wall-mountable with dimensions of 60 mm x 178 mm x 49.3 mm.
- 5Compliant Standards: Meets WEEE/RoHS standards for environmental compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 60 mm | Height | 178 mm |
| Depth | 49.3 mm | Drill hole spacing | 168 mm |
| Connection method | 2x M12 connectors, B-coded | Designation connection point | Copper cable |
| Number of positions | 5 | Transmission speed | 500 kbps |
| Number of local bus devices that can be connected | 0 | Number of devices with parameter channel | 0 |
| ID code (dec.) | 3 | ID code (hex) | 03 |
| Length code (hex) | 41 | Length code (dec) | 65 |
| Process data channel | 4 bit | Input address area | 4 bit |
| Output address area | 4 bit | Register length | 4 bit |
| Input name | Digital inputs | Description of the input | IEC 61131-2 type 1 |
| Number of inputs | 4 | Connection method | M12 connector |
| Connection technology | 2-, 3-, 4-conductor | Input voltage | 24 V DC |
| Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 13 V DC ... 30 V DC |
| Nominal input voltage U | 24 V DC | Nominal input current at U | 5 mA |
| Filter time | 3 ms | Protective circuit | Reverse polarity protection |
| Output name | Digital outputs | Connection method | M12 connector |
| Connection technology | 2-, 3-conductor | Number of outputs | 4 |
| Protective circuit | Short-circuit protection | Output voltage | 24 V DC |
| Maximum output current per channel | 2 A | Output current when switched off | max. 20 µA |
| Nominal load, inductive | 48 VA (1,2 H, 12 Ω) | Nominal load, lamp | 48 W |
| Nominal load, ohmic | 48 W | Maximum operating frequency with ohmic nominal load | max. 500 Hz |
| Behavior with overload | Auto restart | Behavior with inductive overload | Output can be destroyed |
| Behavior at voltage switch-off | The output follows the power supply without delay | Overcurrent shut-down | min. 2.6 A |
| Output current with ground connection interrupt when switched off | max. 5 mA | Product type | I/O component |
| Product family | Fieldline | Type | Block design |
| No. of channels | 8 | Voltage supply U | 24 V DC |
| Power supply at U | max. 4 A | Current consumption from U | typ. 60 mA
max. 100 mA |
| Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
| Current consumption from U | typ. 10 mA (plus sensor current)
max. 500 mA | Voltage supply U | 24 V DC |
| Power supply at U | max. 4 A | Current consumption at U | typ. 6 mA (plus actuator current)
max. 4 A |
| Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
| Current consumption at U | typ. 6 mA (plus actuator current)
max. 4 A | Connection method | M12 connector (A-coded) |
| Designation | U | Supply voltage | 24 V DC |
| Supply voltage range | 18 V DC ... 30 V DC (including ripple) | Test voltage: 24 V supply (bus logics) / FE | 500 V AC, 50 Hz, 1 s |
| Test voltage: 24 V supply (bus logics) / Digital inputs (sensor supply / I/O) | 500 V AC, 50 Hz, 1 s | Test voltage: 24 V supply (bus logics) / Digital outputs (actuator supply) | 500 V AC, 50 Hz, 1 s |
| Test voltage: 24 V supply (bus logics) / Incoming remote bus | 500 V AC, 50 Hz, 1 s | Test voltage: 24 V supply (bus logics) / Outgoing remote bus | 500 V AC, 50 Hz, 1 s |
| Test voltage: Digital inputs (sensor supply / I/O) / FE | 500 V AC, 50 Hz, 1 s | Test voltage: Digital inputs (sensor supply) / Digital outputs (actuator supply) | 500 V AC, 50 Hz, 1 s |
| Test voltage: Digital inputs (sensor supply / I/O) / Incoming remote bus | 500 V AC, 50 Hz, 1 s | Test voltage: Digital inputs (sensor supply / I/O) / Outgoing remote bus | 500 V AC, 50 Hz, 1 s |
| Test voltage: Digital outputs (actuator supply) / FE | 500 V AC, 50 Hz, 1 s | Test voltage: Digital outputs (actuator supply) / Incoming remote bus | 500 V AC, 50 Hz, 1 s |
| Test voltage: Incoming remote bus / FE | 500 V AC, 50 Hz, 1 s | Test voltage: Incoming remote bus / Outgoing remote bus | 500 V AC, 50 Hz, 1 s |
| Test voltage: Outgoing remote bus / FE | 500 V AC, 50 Hz, 1 s
500 V AC, 50 Hz, 1 s | Connection method | M12 connector |
| Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP65/IP67 |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (storage/transport) | 95 % |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting |
Specifications may be subject to change without notice
