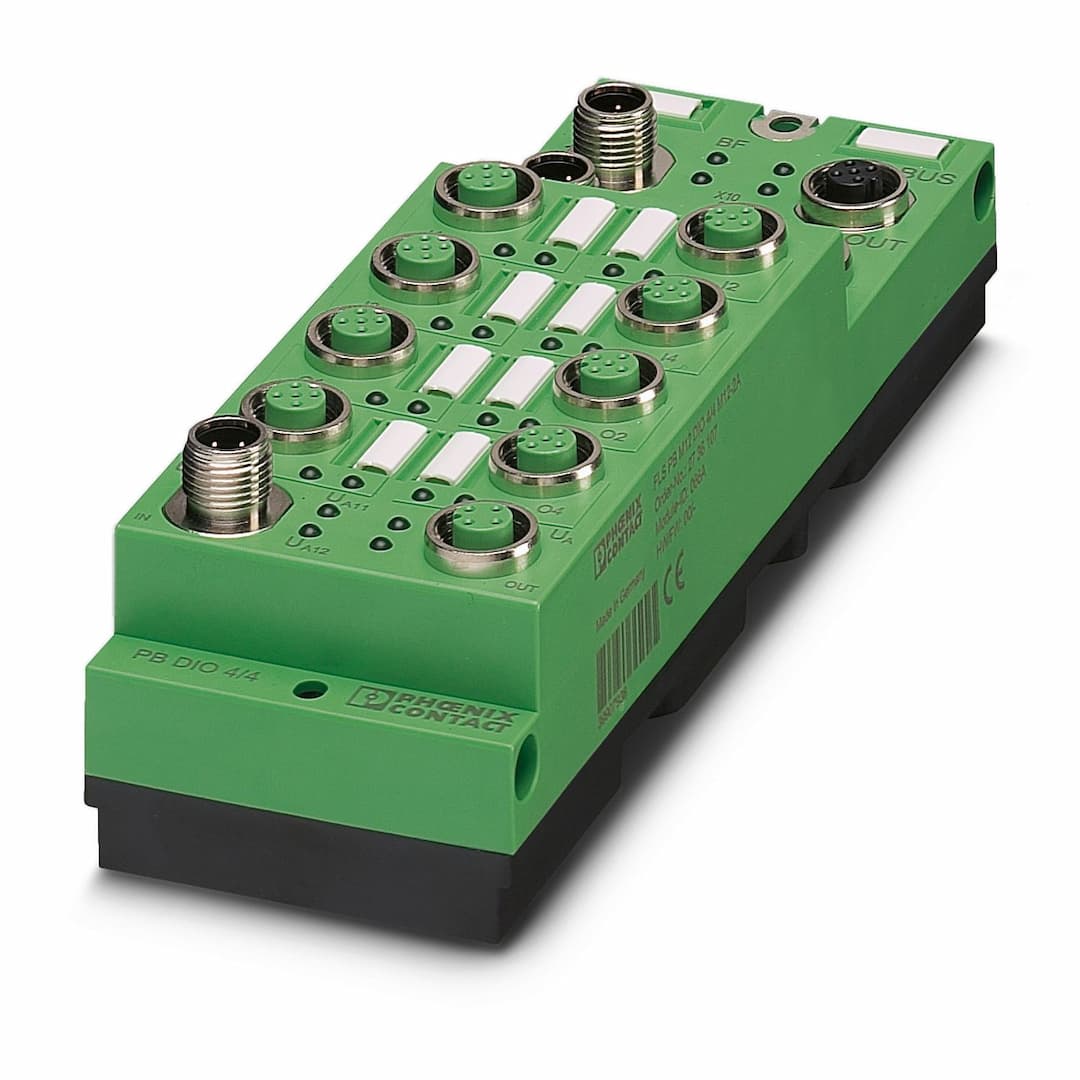

FLS PB M12 DIO 4/4 M12-2A
Product ID:16940
Updated: 2026/4/3
Key Features
- 1Reliable Digital I/O Device: Designed for PROFIBUS applications with 4 digital inputs and 4 digital outputs.
- 2Fast M12 Connections: Utilizes SPEEDCON fast locking system for quick and secure connections.
- 3Short-Circuit Protection: Protected against short circuits and overloads for safe operation.
- 4Compact Design: Measures 60 mm x 178 mm x 49.3 mm, perfect for space-constrained environments.
- 5Wide Operating Range: Operates in ambient temperatures from -25°C to 60°C and up to 95% humidity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 60 mm | Height | 178 mm |
| Depth | 49.3 mm | Drill hole spacing | 168 mm |
| Color | green | Connection method | 2x M12 connectors, B-coded |
| Designation connection point | Copper cable | Number of positions | 5 |
| Transmission speed | 9.6 kbps ... 12 Mbps (Automatic baud rate detection) | Transmission physics | PROFIBUS-DP-compliant copper cable |
| Address area assignment | 1 ... 99, can be set | Number of local bus devices that can be connected | 0 |
| Number of devices with parameter channel | 0 | ID code (hex) | 066A |
| Input address area | 8 bit | Output address area | 8 bit |
| Register length | 8 bit | Input name | Digital inputs |
| Description of the input | IEC 61131-2 type 1 | Number of inputs | 4 |
| Connection method | M12 connector | Connection technology | 2-, 3-, 4-conductor |
| Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 13 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
| Filter time | 3 ms | Protective circuit | Reverse polarity protection |
| Output name | Digital outputs | Connection method | M12 connector |
| Connection technology | 2-, 3-conductor | Number of outputs | 4 |
| Protective circuit | Short-circuit protection | Output voltage | 24 V DC |
| Maximum output current per channel | 2 A | Product type | I/O component |
| Product family | Fieldline | Type | Block design |
| No. of channels | 8 | Voltage supply U | 24 V DC |
| Power supply at U | max. 4 A | Current consumption from U | typ. 40 mA
max. 100 mA |
| Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
| Current consumption from U | typ. 5 mA (plus sensor current)
max. 700 mA | Voltage supply U | 24 V DC |
| Power supply at U | max. 4 A | Current consumption at U | typ. 6 mA (plus actuator current)
max. 4 A |
| Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
| Current consumption at U | typ. 6 mA (plus actuator current)
max. 4 A | Connection method | M12 connector (A-coded) |
| Designation | U | Supply voltage | 24 V DC |
| Supply voltage range | 18 V DC ... 30 V DC (including ripple) | Test voltage: 24 V supply (bus logics) / Bus connection | 500 V AC, 50 Hz, 1 min |
| Test voltage: 24 V supply (bus logics) / FE | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (bus logics) / Digital inputs (sensor supply / I/O) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 24 V supply (bus logics) / Digital outputs (actuator supply) | 500 V AC, 50 Hz, 1 min | Test voltage: Bus connection / FE | 500 V AC, 50 Hz, 1 min |
| Test voltage: Bus connection / Digital inputs (sensor supply) | 500 V AC, 50 Hz, 1 min | Test voltage: Bus connection / Digital outputs (actuator supply) | 500 V AC, 50 Hz, 1 min |
| Test voltage: FE / Digital outputs (actuator supply) | 500 V AC, 50 Hz, 1 min | Test voltage: FE / Digital inputs (sensor supply) | 500 V AC, 50 Hz, 1 min |
| Test voltage: Digital outputs (actuator supply) / Digital outputs (actuator supply) | 500 V AC, 50 Hz, 1 min | Connection method | M12 connector |
| Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP65/IP67 |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (storage/transport) | 95 % |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting |
Specifications may be subject to change without notice
