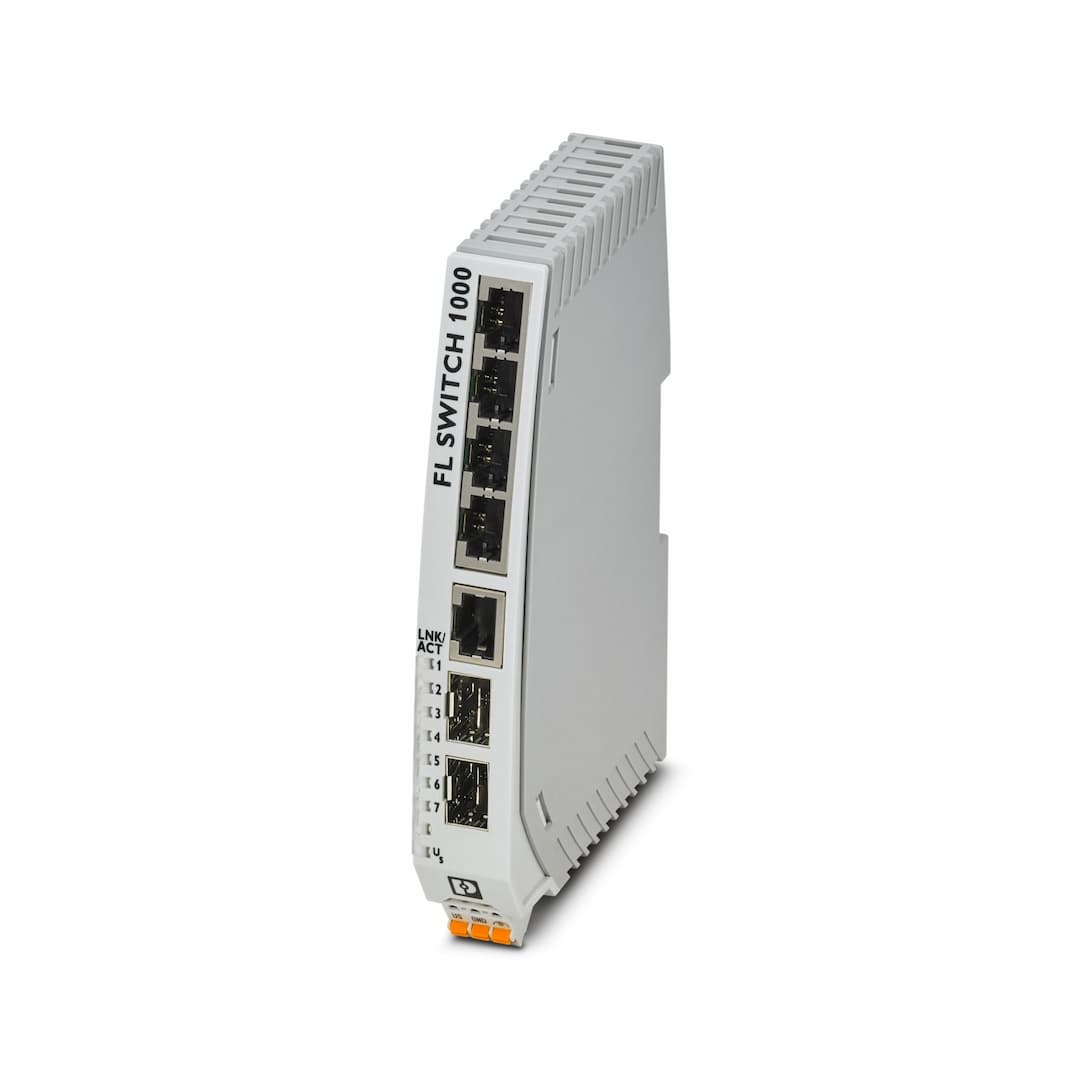

FL SWITCH 1005N-2SFX
Product ID:22194
Updated: 2026/4/3
Key Features
- 1Auto negotiation and autocrossing detection simplifies installation and setup.
- 2Local diagnostic indicators with LEDs for easy troubleshooting.
- 3Supports 10/100 Mbps transmission speed on RJ45 ports and 100 Mbps on SFP ports.
- 4PROFINET Conformance-Class A ensures reliable communication for automation protocols.
- 5Energy-efficient Ethernet in accordance with IEEE 802.3az for reduced power consumption.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 22.5 mm | Height | 140.4 mm |
| Depth | 92.4 mm | Note on application | Only for industrial use |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Housing material | Polycarbonate fiber reinforced |
| Mounting type | DIN rail mounting | Number of interfaces | 5 |
| Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
| Transmission speed | 10/100 Mbps | Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission length | 100 m (per segment) | Signal LEDs | Data receive, link status |
| No. of channels | 5 (RJ45 ports) | Number of interfaces | 2 |
| Connection method | SFP | Transmission speed | 100 Mbps (full duplex) |
| Transmission physics | Depending on the SFP module | Transmission length | up to 40 km (Depending on the fiber/SFP module used) |
| Signal LEDs | Data receive, link status | No. of channels | 2 (SFP ports) |
| Product type | Switch | Product family | Unmanaged Switch 1000 |
| MTTF | 107.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
1346 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
1294.8 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) | Article revision | 03 |
| Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | PROFINET conformance class | Conformance-Class A |
| MAC address table | 2k | Status and diagnostic indicators | LEDs: U |
| Additional functions | 100 BASE-TX/100BASE-FX (IEEE 802.3u)
Quality of Service (QoS) prioritization (IEEE 802.1p)
Energy-efficient Ethernet (IEEE 802.3az)
10Base-T (IEEE 802.3) | Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode |
| Maximum power dissipation for nominal condition | 2.79 W (at 24 V DC) | Transmission medium | Copper |
| Supply voltage (DC) | 24 V DC | Supply voltage (AC) | 24 V AC (50/60 Hz) |
| Supply voltage range | 9 V DC ... 32 V DC
18 V AC ... 30 V AC (50/60 Hz) | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Residual ripple | 3.6 V | Max. current consumption | 310 mA (at 9 V DC) |
| Typical current consumption | 25 mA (at 24 V DC) | Connection name | Power supply |
| pluggable | yes | Connection method | Push-in spring connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 | Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² | Stripping length | 10 mm |
| Degree of protection | IP30 | Ambient temperature (operation) | -10 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | 2000 m (maximum) |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Shock (operation) | 30g (EN 60068-2-27) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Air pressure (operation) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) | Air pressure (storage/transport) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
| UL, USA / Canada | UL 61010-1, UL 61010-2-201 | FCC | Title 47 Part 15 Subpart B:2018 Class A |
| Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | Status display | LEDs: U |
Specifications may be subject to change without notice
