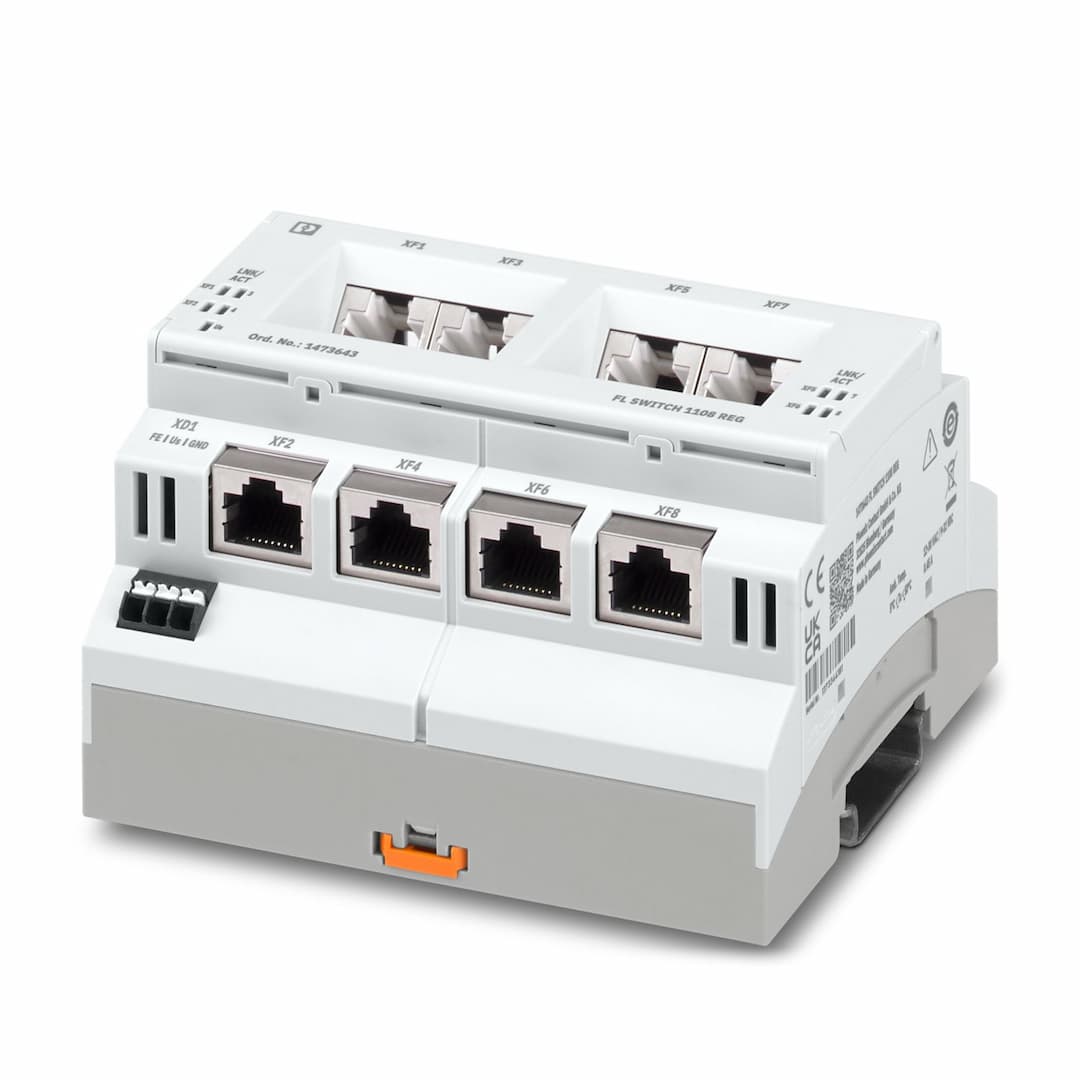

FL SWITCH 1108 REG
Product ID:21973
Updated: 2026/4/3
Key Features
- 1Made from polycarbonate housing material for long-lasting performance in demanding environments.
- 2Features DIN rail mounting for streamlined setup in control panels.
- 3Uses spring-cage connection for secure and stable connectivity.
- 4Supports transmission speeds of 10/100/1000 Mbps for efficient data communication.
- 5Suitable for various industrial settings with a transmission length of up to 100 m per segment.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 108 mm | Height | 90 mm |
| Depth | 62 mm | Note on dimensions | 6 HP |
| General | Support by phone or on-site (fee is charged) | Note on application | Only for industrial use |
| Housing material | PC (polycarbonate) | Mounting type | DIN rail mounting |
| Number of interfaces | 8 | Connection method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100/1000 Mbps |
| Transmission physics | Ethernet RJ45 | Transmission length | 100 m (per segment) |
| Signal LEDs | LNK/ACT | No. of channels | 8 (RJ45 port) |
| Product type | Switch | Product family | Unmanaged Switch 1000 REG |
| Type | Stand-Alone | MTTF | 1432 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
615.6 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
163.3 Years (SN 29500 standard, temperature: 50°C, operating cycle: 100%) |
| Special properties | REG design in accordance with DIN 43880 | Signal delay | Store and Forward mode, 10/100 Mbps, depending on the frame size |
| Article revision | 00 | Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode |
| Status and diagnostic indicators | LEDs: US1, Link, and Activity | Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode |
| Local diagnostics | US Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED | Maximum power dissipation for nominal condition | 4 W |
| Test voltage | 500 V DC | Test section | Between the Ethernet ports 1500 V AC 1 min
24 V supply (US) / FE 500 V DC 1 min |
| Transmission medium | Copper | Supply voltage (DC) | 24 V DC |
| Supply voltage (AC) | 24 V AC (50/60 Hz) | Supply voltage range | 9 V DC ... 32 V DC
12 V AC ... 30 V AC |
| Max. current consumption | 0.45 A (at U | Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.5 mm² ... 1.5 mm² |
| Degree of protection | IP20 | Ambient temperature (operation) | 5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C | Altitude | max. 2000 m |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 86 hPa ... 108 kPa (1500 m above sea level) | Air pressure (storage/transport) | 66 hPa ... 108 kPa (3500 m above sea level) |
| Conformance with EMC directives | IEC 62368-1 | Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode |
| Status display | LEDs: US1, Link, and Activity |
Specifications may be subject to change without notice
