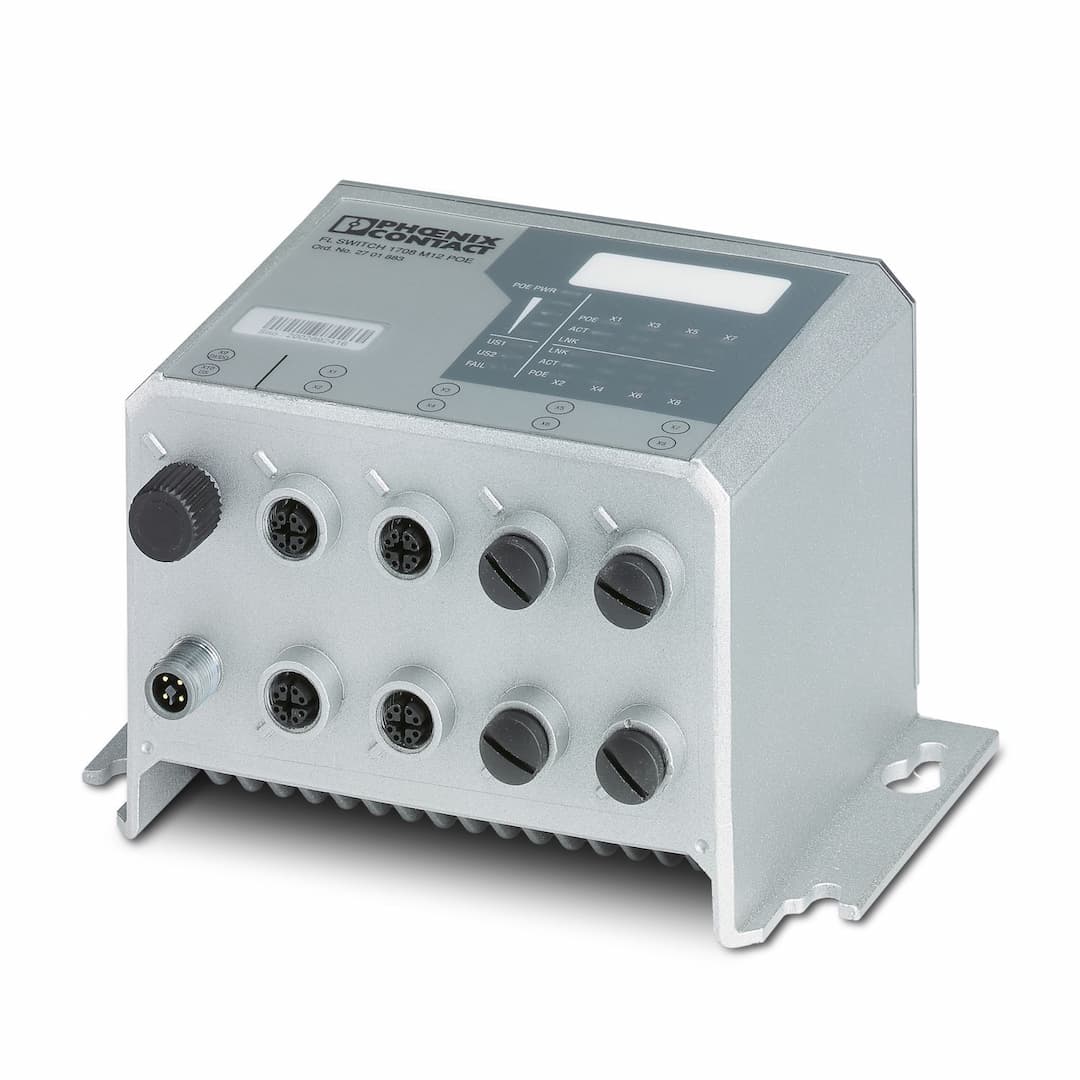

FL SWITCH 1708 M12 POE
Product ID:23484
Updated: 2026/7/26
Key Features
- 1Compact and robust IP67 metal housing for industrial applications.
- 2Supports 8 M12 PoE ports with up to 30 W feed power per port.
- 3Fast transmission speeds of 10/100/1000 Mbps with automatic data transmission speed detection.
- 4Ideal for networking cameras with jumbo frames up to 9720 bytes.
- 5Total power supply of 200 W for up to eight PoE/PoE+ devices.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 176 mm | Height | 112 mm |
| Depth | 100 mm | Drill hole spacing | 155 mm |
| General | NOTE: Meet noise immunity requirements | Color | anthracite |
| Housing material | Zinc die-cast, surface bronzed and nickel-plated | Housing surface material | coated |
| Mounting type | Wall mounting | Number of interfaces | 8 |
| Connection method | M12 connector, 8-pos. | Note on the connection method | X-coded |
| Transmission speed | 10/100/1000 Mbps | Transmission physics | Copper |
| Transmission length | 100 m (per segment) | Signal LEDs | Data receive, link status |
| No. of channels | 8 (RJ45 POE ports) | Number of interfaces | 1 (Annunciator relay) |
| Connection method | M12 connector (A-coded) | Product type | Switch |
| Product family | Unmanaged PoE Switches 1000 | Type | Stand-Alone |
| MTTF | 208.85 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
93.43 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
9.98 Years (SN 29500 standard, temperature 70°C, operating cycle 100%) | Article revision | 04 |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Basic functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, complies with standard IEEE 802.3, 4 priority classes according to IEEE 802.1p, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 9720 bytes |
| Signal contact control voltage | 24 V DC (typical) | Signal contact control current | 100 mA (24 V DC) |
| PROFINET conformance class | Conformance-Class A | Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and PoE Status), and PoE performance |
| Additional functions | Autonegotiation | Basic functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, complies with standard IEEE 802.3, 4 priority classes according to IEEE 802.1p, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 9720 bytes |
| Local diagnostics | US Supply voltage US Green LED | Maximum power dissipation for nominal condition | 7.2 W |
| Test section | Between the Ethernet ports 1500 V AC 1 min
24 V supply (US) / FE 500 V DC 1 min | Transmission medium | Copper |
| Supply voltage (DC) | 24 V DC (M12 connector) | Supply voltage range | 18.7 V DC ... 30.5 V DC |
| Power supply connection | via M12 connector, T-coded | Residual ripple | 3.6 V |
| Max. current consumption | 12 A (Maximum, nominal load) | Typical current consumption | 300 mA (at U |
| Signal contact control voltage | 24 V DC (typical) | Signal contact control current | 100 mA (24 V DC) |
| Supply voltage range | 18.7 V DC ... 30.5 V DC (including ripple) | Degree of protection | IP65
IP66
IP67 |
| Ambient temperature (operation) | -40 °C ... 70 °C (non-condensing) | Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
| Free from substances that could impair the application of coating | Yes | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Conformance with EMC directives | EN 61000-4-2 EN 61000-4-2 (ESD) Criterion A
EN 61000-4-3 (electromagnetic fields) EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-4-6 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-4-4 EN 61000-4-4 Criterion A
EN 61000-4-5 EN 61000-4-5 (surge) Criterion A
EN 60950-1 | Noise immunity | EN 61000-4-2 |
| Noise emission | EN 55022 / Class B | Basic functions | Store-and-forward switch, 10/100/1000 Mbps, auto negotiation, complies with standard IEEE 802.3, 4 priority classes according to IEEE 802.1p, PoE according to IEEE 802.3at/802.3af, jumbo frames up to 9720 bytes |
| Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and PoE Status), and PoE performance |
Specifications may be subject to change without notice
